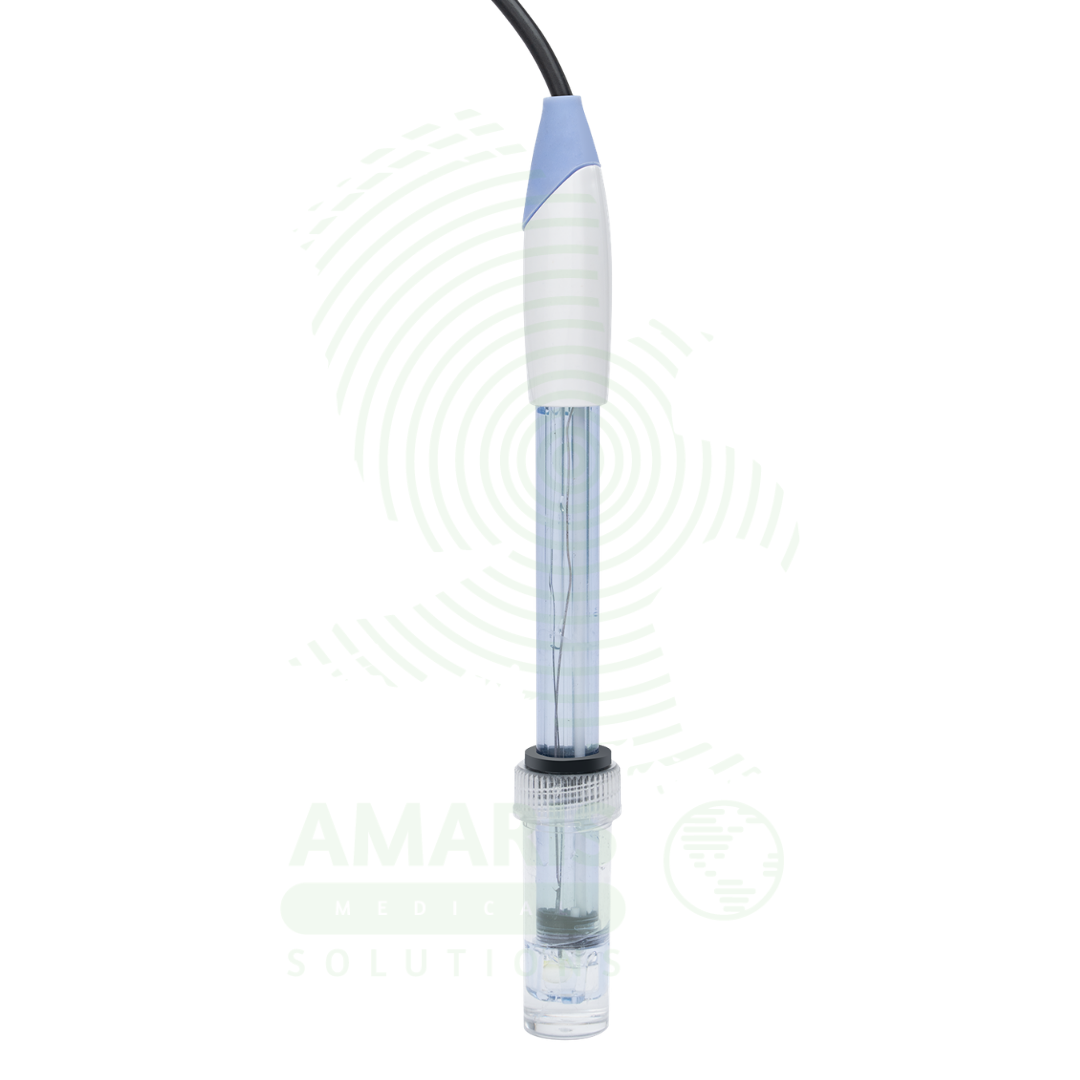

ATC pH probe (3-in-1)

WhatsApp Order

A ATC pH Probe (3-in-1) is a combination electrochemistry sensor that integrates pH sensing, reference electrode, and automatic temperature compensation (ATC) into a single probe, designed for accurate, simultaneous measurement of pH and temperature in clinical diagnostic, pharmaceutical quality control, and research laboratories . The built-in ATC sensor automatically corrects pH measurements for temperature-dependent variations in electrode slope, ensuring accurate readings across a temperature range of 0-90°C (or 0-100°C for specialized models) .

The probe features an epoxy body for durability and chemical resistance, an Ag/AgCl reference system (gel-filled or refillable), and a glass sensing bulb with a pH range of 0-14 . Available junction types include wick (general purpose), glass fiber (low maintenance), and ceramic (high precision), allowing selection based on sample type and application requirements . Response time is rapid, with stable readings achieved within 30 seconds at 25°C .

For the clinical laboratory scientist and medical technologist, the ATC pH Probe (3-in-1) simplifies pH measurement of biological fluids including serum, plasma, urine, and cerebrospinal fluid—reducing the need for separate temperature probes and minimizing sample handling . For the clinical pathologist, accurate pH measurement supports diagnosis of metabolic acidosis, alkalosis, diabetic ketoacidosis, and renal tubular disorders. For the quality control chemist, the probe provides reliable pH measurement of calibration buffers and QC samples, ensuring that pH meters used for patient sample testing are properly calibrated and functioning within acceptable parameters .

Compatible with pH meters accepting BNC and Mini-DIN/8-pin connectors, the ATC pH Probe (3-in-1) is an essential tool for clinical chemistry laboratories, pathology departments, pharmaceutical QC labs, and research facilities requiring accurate, reproducible pH measurement for patient sample testing, quality control, and diagnostic applications.

Compare

Add to wishlist

Categories: DIAGNOSTIC EQUIPMENT, Diagnostic Kits Tags: ATC pH Probe (3-in-1), Automatic Temperature Compensation, Clinical Chemistry Equipment, Combination pH Probe, Laboratory Electrode, Orion pH Probe, pH Measurement, pH/ATC Electrode, Triode pH Probe

Description

ATC pH Probe (3-in-1)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Combined pH and Temperature Measurement for Clinical Sample Analysis

Primary Use: Provides a combination electrode with a built-in automatic temperature compensation (ATC) sensor, enabling simultaneous measurement of pH and temperature in a single probe for clinical and laboratory applications.
How it helps: For the clinical laboratory scientist and medical technologist, the ATC pH Probe (3-in-1) simplifies pH measurement of biological fluids (serum, plasma, urine, cerebrospinal fluid) by integrating the reference electrode, pH sensing element, and temperature sensor into a single device—reducing the need for separate temperature probes and minimizing sample handling . The gel-filled, low-maintenance design ensures consistent performance for routine diagnostic testing . For the patient, accurate pH measurement of biological fluids supports diagnosis of metabolic disorders, acid-base imbalances, and renal dysfunction.

2. Automatic Temperature Compensation for Accurate Diagnostic Results

Primary Use: Features a built-in temperature sensor (0-90°C or 0-100°C range) that automatically corrects pH measurements for temperature-dependent variations in electrode slope, ensuring accurate readings across varying sample temperatures .
How it helps: For the clinical chemist and laboratory technician, the built-in ATC eliminates the need for manual temperature correction—reducing calculation errors and improving the accuracy of pH measurements for quality control samples, buffer solutions, and biological specimens . The epoxy body construction provides durability for routine laboratory use . For the patient, accurate pH measurement ensures reliable diagnostic results for conditions requiring precise pH monitoring.

3. pH Measurement of Biological Fluids for Metabolic Assessment

Primary Use: Measures pH across the full 0-14 range with high accuracy and rapid response time, suitable for assessing pH of serum, plasma, urine, cerebrospinal fluid, and other biological specimens .
How it helps: For the clinical pathologist and metabolic disease specialist, accurate pH measurement of blood and urine is essential for diagnosing metabolic acidosis, alkalosis, diabetic ketoacidosis, and renal tubular disorders. The probe’s rapid response (stable within 30 seconds at 25°C) supports efficient clinical laboratory workflows . For the patient, timely and accurate pH testing enables early detection of metabolic disturbances and guides appropriate medical intervention.

4. Quality Control and Buffer Solution Verification

Primary Use: Used for pH measurement of quality control samples and buffer solutions in clinical chemistry laboratories to verify proper calibration of pH meters .
How it helps: For the quality assurance manager and clinical laboratory scientist, the ATC pH Probe (3-in-1) provides reliable pH measurement of calibration buffers and QC samples—ensuring that pH meters used for patient sample testing are properly calibrated and functioning within acceptable parameters. For the patient, rigorous quality control ensures that pH measurements used for clinical decision-making are accurate and reproducible.

SECONDARY & SUPPORTIVE USES

1. pH Measurement of Pharmaceutical Preparations: Used to verify pH of intravenous solutions, parenteral nutrition formulations, dialysis fluids, and other pharmaceutical preparations requiring precise pH control.

2. pH Monitoring in Dialysis and Renal Care: Measures pH of dialysate solutions and patient samples in hemodialysis and peritoneal dialysis settings to ensure proper acid-base management.

3. pH Testing of Reagent Solutions: Used to verify pH of diagnostic reagents, buffers, and staining solutions used in clinical chemistry and histopathology laboratories.

4. pH Assessment of Blood Gas Quality Control: Supports pH measurement of blood gas quality control materials for verification of blood gas analyzer performance.

5. pH Verification of Electrolyte Solutions: Used to check pH of electrolyte replacement solutions, saline, and other intravenous fluids before administration.

6. pH Measurement of Culture Media: Used to verify pH of microbiological culture media and cell culture media to ensure optimal growth conditions.

7. pH Testing of Purified Water Systems: Used to monitor pH of purified water and water-for-injection systems in hospital and laboratory settings.

8. pH Assessment of Gastrointestinal Fluids: Measures pH of gastric aspirate and other gastrointestinal fluid samples for diagnostic evaluation.

9. pH Monitoring in Veterinary Diagnostic Laboratories: Used for pH measurement of animal blood, urine, and tissue samples in veterinary diagnostic workflows.

10. pH Measurement in Educational and Training Laboratories: Supports teaching of pH measurement principles in medical technology and clinical laboratory science training programs.

11. pH Testing in Pharmaceutical Quality Control: Used in QC laboratories for pH verification of raw materials, in-process samples, and finished pharmaceutical products.

12. pH Measurement of Environmental Samples: Used for pH testing of water samples in hospital environmental monitoring programs.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A combination pH electrode with built-in automatic temperature compensation (ATC) sensor, integrating reference electrode, pH sensing element, and temperature sensor into a single ATC pH Probe (3-in-1) for clinical and laboratory applications.
Designation: ATC pH Probe (3-in-1) , Triode pH/ATC Probe, Combination pH Electrode with ATC, pH/ATC Electrode, Orion Triode Probe.
Key Components:

o pH Sensing Element: Glass bulb or glass capillary pH sensor for pH measurement.
o Reference Electrode: Ag/AgCl internal reference system with sealed or refillable design .
o Temperature Sensor: Built-in thermistor for automatic temperature compensation.
o Junction: Wick, glass fiber, or ceramic junction for sample contact .
o Connector: BNC for pH signal; Mini-DIN or 8-pin for ATC connection .

2. TECHNICAL & PERFORMANCE PROPERTIES

pH Range: 0-14 .
Temperature Range: 0°C to 90°C (epoxy body) or 0°C to 100°C (ROSS series) .
Accuracy: ±0.03 pH (with ATC) .
Response Time: Stable within 30 seconds at 25°C .
Junction Types: Wick (general purpose), Glass fiber (low maintenance), Ceramic (high precision) .
Reference System: Ag/AgCl (gel-filled or refillable) .
Body Material: Epoxy (rugged, chemical-resistant) .
Dimensions: 120 mm length × 12 mm diameter .
Cable Length: 1 meter (standard) .
Storage: Keep electrode wet in storage solution; do not allow to dry out.
Calibration: Requires calibration with pH 4.01, 7.00, and 10.01 buffer solutions.

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Epoxy body for durability and chemical resistance; sealed or refillable reference chamber .
Design: 3-in-1 integrated design combines pH electrode, reference electrode, and temperature sensor in single probe.
Compatibility: Compatible with pH meters accepting BNC and Mini-DIN/8-pin connectors .
Maintenance: Low-maintenance gel-filled (non-refillable) or refillable options available .
Portability: Designed for benchtop laboratory use; some models suitable for field use.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Laboratory equipment for in vitro diagnostic use; general purpose electrochemistry accessory.
Material Safety: Epoxy body (non-toxic); Ag/AgCl reference system; glass pH sensor.
Storage Conditions: Store in pH electrode storage solution (4M KCl) to prevent dehydration.
Handling: Handle glass bulb with care; do not touch or scratch sensing surface.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store electrode in storage solution or pH 4 buffer; keep wet at all times; do not allow sensing bulb to dry out.
Cleaning: Rinse with distilled water between samples; clean with appropriate cleaning solution if contaminated (protein removal, oil/grease removal).
Inspection: Inspect glass bulb for cracks or damage before each use; check reference junction for blockage.
Calibration: Calibrate daily before use with at least two buffer solutions (pH 7.00 and pH 4.01 or 10.01).
Hydration: If electrode has dried out, soak in storage solution for 24-48 hours before use.
Refilling (Refillable Models): Maintain fill solution level above sample level; use recommended filling solution (e.g., 4M KCl).
Connector Care: Keep connectors clean and dry; do not immerse connectors in liquid.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Combined pH and temperature measurement for biological fluids (serum, plasma, urine, CSF), quality control samples, buffer solutions, and pharmaceutical preparations in clinical diagnostic, pharmaceutical quality control, and research laboratories.
Clinical Role: Essential pH measurement equipment in clinical chemistry laboratories, hospital pathology departments, quality control laboratories, pharmaceutical QC labs, and research facilities requiring accurate pH measurement for patient sample testing.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Glass Bulb Care: Handle with care; glass sensing bulb is fragile and can break if bumped or dropped.
Storage: Always keep electrode wet (in storage solution or pH 4 buffer); never store in distilled or deionized water, which leaches ions from the glass membrane.
Avoid Contamination: Rinse with distilled water before and after each use; avoid touching glass bulb with fingers.
Chemical Compatibility: Do not use in strong acids or bases outside pH 0-14 range; avoid hydrofluoric acid (HF) which damages glass.
Temperature Limits: Do not exceed specified temperature range (0-90°C or 0-100°C); high temperatures may damage electrode.
Calibration Verification: Verify calibration before testing patient samples using quality control materials.
Cleaning: Use appropriate cleaning solutions for protein removal (protease solution) or oil/grease removal (mild detergent); rinse thoroughly after cleaning.
Dehydration Prevention: If electrode shows sluggish response, check for dehydration; soak in storage solution for 24-48 hours and recalibrate.
Filling Solution (Refillable): Maintain fill solution level above sample level to maintain proper reference potential; use only recommended filling solution.
Training: Only trained laboratory personnel should handle and operate pH probes for clinical diagnostic applications.

2. FIRST AID MEASURES

Sample Splash: If biological sample or buffer splashes into eyes, flush with water for 15 minutes, seek medical attention; if on skin, wash with soap and water.
Glass Breakage: If glass bulb breaks, carefully collect fragments using forceps; dispose in sharps container; inspect sample for glass contamination before further use.
Chemical Exposure: If electrode filling solution contacts skin, wash with soap and water; if in eyes, flush with water for 15 minutes, seek medical attention.
Electrical Malfunction: If meter shows erratic readings, check connections, recalibrate, or replace probe.

3. FIRE FIGHTING MEASURES

Flammability: Epoxy body is combustible; may burn if exposed to flame or high heat.
Extinguishing Media: Use water, foam, dry chemical, or carbon dioxide for fire involving plastic components.
Fire Response: No special fire hazards beyond typical combustible materials.
