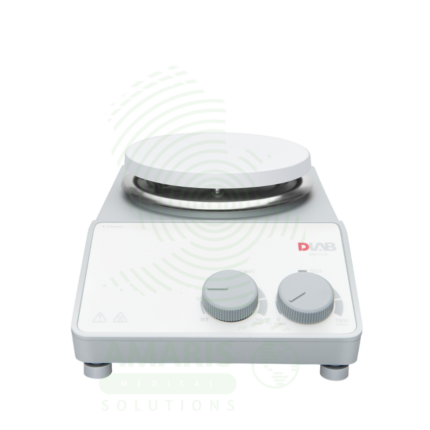

Analog Heating Magnetic Stirrer is a robust, TÜV‑certified benchtop instrument engineered for accurate, safe, and economical heating and simultaneous stirring in clinical diagnostics, pharmaceutical quality control, analytical chemistry, and academic research laboratories worldwide. Featuring a 5‑inch (φ135 mm) round, ceramic‑coated stainless steel work plate, this analog hotplate stirrer delivers a heating range of room temperature +5 °C to 340 °C and a stepless stirring speed range of 100 to 1500 rpm with a maximum stirring capacity of 20 litres of water.
Every Analog Heating Magnetic Stirrer is individually factory‑calibrated and supplied with a calibration certificate traceable to international standards. The maintenance‑free, spark‑free DC brushless motor provides consistent, quiet agitation without routine upkeep, and the ceramic‑coated stainless steel work plate resists strong acids, strong alkalis, and organic solvents, offering rapid, uniform heating without localised hot spots. Two independent, intuitive analog control knobs (dual rotary knobs) allow simple, direct control over temperature and speed, and the integrated operation indicator light confirms heating status at a glance.
Key user‑focused features for clinical and QC workflows include a large 20‑litre stirring capacity – ideal for bulk buffer and reagent preparation; a 500 W heating system enabling rapid temperature ramp‑up to 340 °C; and independent control of heating and stirring, allowing the unit to be used as a hotplate‑only, stirrer‑only, or combined hotplate stirrer.
Safety is a priority with TÜV certification (CE, cTUVus, FCC), an independent safety circuit providing over‑temperature protection (420 °C hardware cutoff), an independent residual heat warning indicator (“HOT” flashes on the control panel at >50 °C and continues even after the unit is turned off if still connected to mains, until the plate is safe to touch), and an IP42‑rated housing offering robust dust‑ and water‑splashing protection – an upgrade over basic IP21 designs, making the Analog Heating Magnetic Stirrer well suited to busy clinical, QC, and teaching labs where spills and splashes are routine.
With a compact footprint (160 × 280 mm), moderate weight (2.8 kg), and universal power supply (100–240 V, 50/60 Hz), the MS‑H‑S occupies minimal bench space while delivering reliable performance suitable for a wide range of clinical and research workflows. The instrument is backed by a 2‑year manufacturer’s warranty and is supported by a global distributor network.
For the clinical laboratory scientist, pharmaceutical QC technician, and teaching laboratory instructor, the Analog Heating Magnetic Stirrer delivers the reliable, large‑capacity, and simple‑to‑operate heating and stirring required for routine buffer preparation, media processing, staining solution mixing, and any general‑purpose heating or stir‑only task where an economical and durable analog hotplate stirrer up to 340 °C is needed. For the patient, the reliable performance of this TÜV‑certified instrument ensures that diagnostic reagents and quality control samples are prepared consistently and cost‑effectively, supporting accurate routine diagnostics, efficient laboratory operations, and patient safety.
