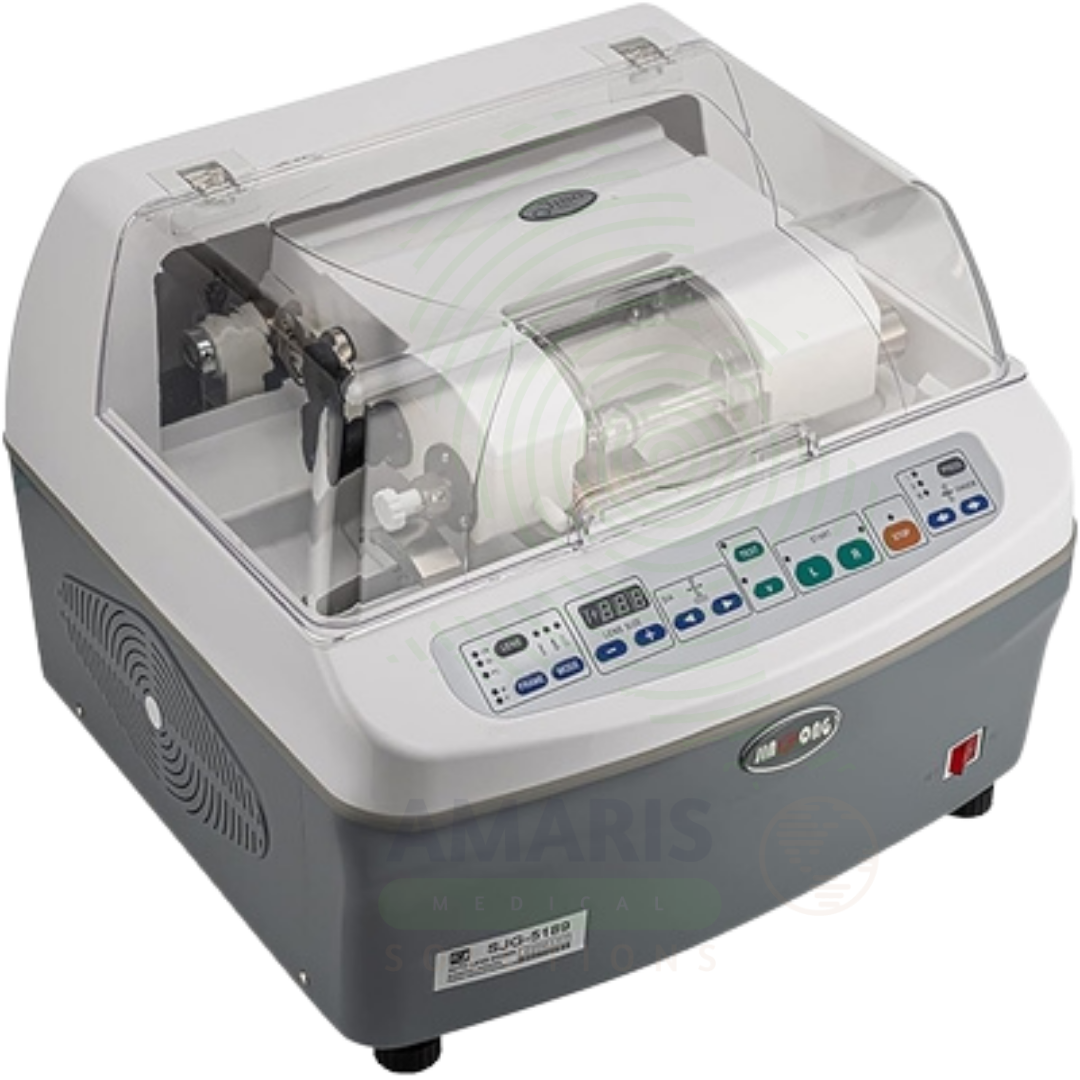

Auto Lens Edger

Auto Lens Edger

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Automated Lens Edging for Prescription Eyeglasses

• Primary Use: Automatically cuts and shapes eyeglass lenses to fit into frames using digital or pattern-based tracing technology. The auto lens edger streamlines lens fabrication, reducing manual labor and improving precision compared to manual edging.

• How it helps: For the optician and optical laboratory technician, the auto lens edger increases efficiency and accuracy in lens fabrication—reducing errors, minimizing remakes, and speeding up turnaround time. For the patient, this means faster delivery of prescription glasses with more precise lens fitting.

2. Digital Frame Tracing

• Primary Use: Uses digital tracing technology to capture the exact shape of the frame, including the groove profile and curvature. Some models use physical patterns while advanced models use 3D digital tracing for enhanced accuracy.

• How it helps: For the optical professional, digital frame tracing ensures accurate lens fitting—eliminating manual measurement errors and ensuring that lenses match the frame precisely. For the patient, properly fitted lenses provide better visual alignment, improved comfort, and reduced risk of lens breakage.

3. Lens Blocking for Accurate Positioning

• Primary Use: Positions and secures the lens for edging using automated blocking systems. The system aligns the optical center, cylinder axis, and prism base direction according to the prescription requirements.

• How it helps: For the optical technician, automated blocking ensures that the lens is positioned correctly before edging—critical for maintaining the prescribed correction. For the patient, accurate lens positioning means that the glasses provide the intended visual correction without adaptation issues.

4. Multi-Material Processing Capability

• Primary Use: Capable of edging a wide range of lens materials including standard plastic, polycarbonate, high-index, and Trivex. The system adjusts grinding parameters automatically based on lens material to prevent chipping or damage.

• How it helps: For the optical laboratory, multi-material capability allows fabrication of all lens types with a single machine—reducing equipment needs and increasing versatility. For the patient, this means access to the full range of lens materials, including thinner, lighter, and impact-resistant options.

5. Bevel and Groove Cutting

• Primary Use: Automatically cuts bevels for full-rim frames and grooves for semi-rimless (supra) frames. The system calculates the optimal bevel position based on frame curvature and lens thickness.

• How it helps: For the optician, integrated bevel and groove cutting enables fabrication of all frame types—from full-rim to semi-rimless—with a single machine. For the patient, this means access to a wider selection of frame styles without compromising lens fit.

SECONDARY & SUPPORTIVE USES

1. Pattern Storage: Storage of frame patterns for repeat orders and customer records.

2. Prescription Verification: Some models include integrated lens measurement to verify prescription before edging.

3. Remote Order Processing: Integration with laboratory management systems for remote order processing.

4. Repair and Replacement Lenses: Edging of replacement lenses for existing frames.

5. Safety Eyewear: Edging of lenses for safety frames and industrial eyewear.

6. Lens Tinting Compatibility: Processing of lenses for tinting after edging.
