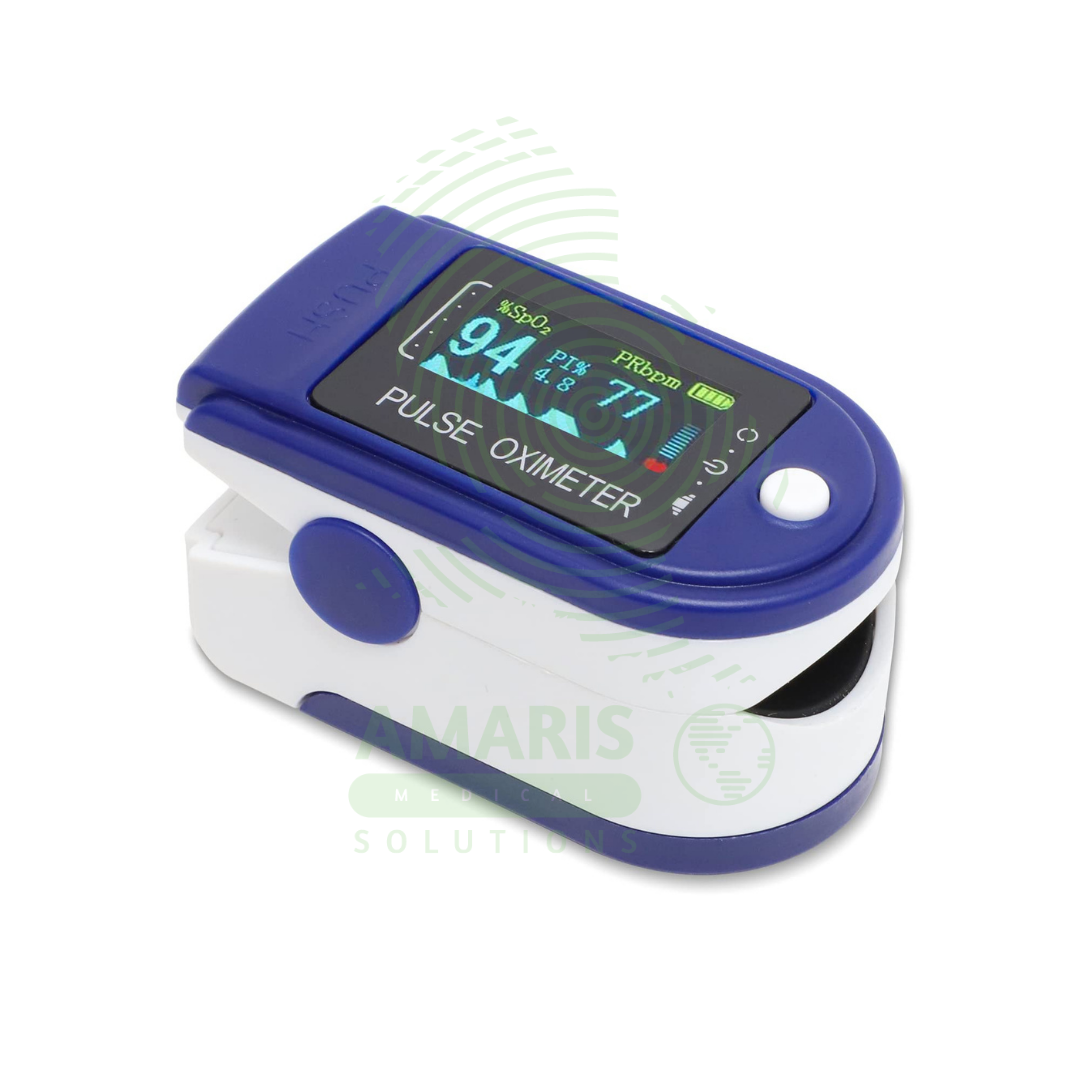

A Fingertip Pulse Oximeter is a compact, non-invasive medical device that clips onto a finger to measure peripheral arterial oxygen saturation (SpO2) and pulse rate in seconds. Utilizing light-based technology, it provides critical, real-time data on respiratory and circulatory status. Its portability and ease of use make it indispensable in hospitals (from ORs to general wards), for patients managing chronic lung conditions at home, and for situational monitoring in sports or high-altitude environments. While an extremely valuable screening tool, readings must be interpreted in context, considering factors like patient movement, perfusion, and clinical symptoms.
Description

Fingertip Pulse Oximeter

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Non-Invasive Oxygen Saturation (SpO2) Monitoring:
  • Primary Use: The primary use is for the continuous or spot-check measurement of arterial blood oxygen saturation levels (SpO2) and pulse rate, providing a rapid assessment of a patient’s respiratory and circulatory status.
  • How it helps: Gives clinicians and patients an immediate, painless window into how well the lungs are delivering oxygen to the blood, offering a vital sign that can signal trouble long before other symptoms appear.
2. Respiratory Condition Management:
  • Primary Use: Essential for monitoring patients with chronic respiratory diseases such as Chronic Obstructive Pulmonary Disease (COPD), asthma, pulmonary fibrosis, and cystic fibrosis, both in clinical settings and at home to detect early desaturation.
  • How it helps: Empowers patients with chronic lung disease to monitor their own oxygen levels at home, alerting them and their doctors when levels drop so treatment can be adjusted before a crisis develops.
3. COVID-19 & Viral Pneumonia Monitoring:
  • Primary Use: Gained critical importance for the at-home monitoring of patients with COVID-19 to identify “silent hypoxia” (dangerously low oxygen levels without pronounced shortness of breath), guiding decisions for seeking emergency care.
  • How it helps: Acts as a life-saving early warning system during COVID-19, revealing when oxygen levels are falling dangerously low even when patients feel relatively well, prompting them to seek care before they deteriorate.
4. Perioperative & Procedural Monitoring:
  • Primary Use: A standard of care during surgery, recovery in post-anesthesia care units (PACU), and during procedures involving sedation to ensure adequate oxygenation and ventilation.
  • How it helps: Keeps a continuous watch on patients during surgery and recovery, alerting anesthesiologists immediately if oxygen levels dip so they can intervene before any harm occurs.
5. Sleep Apnea Screening & Assessment:
  • Primary Use: Used as a screening tool for sleep-disordered breathing (like obstructive sleep apnea) by detecting repetitive dips in oxygen saturation during sleep, often in conjunction with other metrics.
  • How it helps: Helps identify patients whose breathing repeatedly stops during sleep, guiding them toward definitive diagnosis and treatment that can dramatically improve their health and quality of life.

SECONDARY & SUPPORTIVE USES

1. Cardiovascular Assessment: Helps assess heart function and circulation, as low SpO2 can sometimes indicate cardiac issues like heart failure or congenital heart defects, providing clues to underlying heart problems.
2. Altitude Sickness Evaluation & Prevention: Used by mountain climbers, aviators, and travelers to high altitudes to monitor for signs of hypoxemia and acclimatization status, helping prevent life-threatening altitude sickness.
3. Sports & High-Altitude Training: Utilized by athletes to monitor oxygen levels during intense training or in simulated high-altitude environments to optimize performance and track fitness gains.
4. Neonatal & Pediatric Care: Specialized pediatric fingertip or wrap-style oximeters are used to monitor infants and children with respiratory illnesses or congenital conditions, protecting the most vulnerable patients.
5. Fitness & Wellness Tracking: Used by general fitness enthusiasts to monitor heart rate and recovery, and to gain basic insights into cardiopulmonary response to exercise, supporting overall wellness goals.
KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

  • Device Type: Portable, Non-Invasive Pulse Oximeter.
  • Form Factor: Fingertip clip design (spring-loaded or hinged).
  • Measurement Site: Typically placed on the index, middle, or ring finger. Can also be used on toes for infants.
  • Measurement Principle: Spectrophotometry; uses two wavelengths of light (red and infrared) to measure the difference in light absorption between oxygenated and deoxygenated hemoglobin.

2. TECHNICAL & PERFORMANCE PROPERTIES

  • Measurement Range: SpO2: Typically 70%~99% (some 0%~99%); Pulse Rate: 30~250 BPM (varies).
  • Accuracy: SpO2: ±2% (for readings between 70%-100%). Less accurate below 70%. Pulse Rate: ±2 BPM or ±2% (whichever is greater).
  • Display: LED or OLED digital screen showing SpO2 percentage (%), Pulse Rate (BPM), and often a plethysmograph (pulse strength waveform) and perfusion index (PI).
  • Perfusion Index (PI): A numerical value indicating the strength of the pulse signal at the measurement site. A low PI (<0.2%) may suggest poor peripheral circulation (cold fingers, shock) and can lead to inaccurate readings.
  • Alarms: Some models feature audible or visual alarms for low SpO2 (user-set threshold, e.g., <90%) or high/low heart rate.

3. PHYSICAL & OPERATIONAL PROPERTIES

  • Size & Weight: Extremely compact and lightweight (often 30-60 grams with batteries).
  • Power Source: Typically powered by 2 x AAA or 2 x AA batteries. Some are rechargeable via USB.
  • Operation: Simple one-button operation: insert finger, press button, reading appears in 5-10 seconds.
  • Auto Power-Off: Usually features automatic shut-off after a period of inactivity (e.g., 8-16 seconds) to conserve battery.

4. SAFETY & COMPLIANCE ATTRIBUTES

  • Regulatory Approvals: Must carry relevant medical device approvals: FDA 510(k) Clearance (USA), CE Marking (Europe - Class IIa or IIb), ISO 13485 certification for manufacturing.
  • Accuracy Standards: Should comply with performance standards such as ISO 80601-2-61 (particular requirements for pulse oximeter equipment).
  • Intended Use: Classified as a prescription device in some regions (like the USA) when intended for medical purposes, though widely available over-the-counter.

5. STORAGE & HANDLING ATTRIBUTES

  • Storage Conditions: Store in a clean, dry, temperature-stable environment. Avoid extreme heat, cold, and direct sunlight.
  • Cleaning: Clean the sensor area (inside the clip) with a soft cloth lightly dampened with 70% isopropyl alcohol. Do not immerse in liquid or use abrasive cleaners.
  • Handling: Protect from drops and impacts. Do not stretch the spring clip excessively.

6. LABORATORY & CLINICAL APPLICATIONS

  • Primary Application: Rapid, non-invasive screening and monitoring of arterial oxygen saturation and heart rate across virtually all medical specialties.
  • Limitations: Readings can be affected by motion artifact, poor perfusion, dark nail polish, acrylic nails, skin pigmentation, and ambient bright light. It is a monitor, not a definitive blood gas analyzer.
SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

  • Personal Protective Equipment (PPE): In clinical settings, clean the device between patients. May require disinfection according to facility protocol.
  • Patient Factors for Accurate Reading:
    • Ensure the finger is warm, clean, and dry.
    • Remove dark nail polish or acrylic nails from the finger being used.
    • Keep the patient's hand still during measurement.
    • Position the hand at or below heart level if possible.
  • Device Safety: Use only manufacturer-approved batteries. Do not use on a finger with compromised circulation or injury. Do not use as the sole basis for diagnosis; correlate with clinical signs and symptoms.

2. FIRST AID MEASURES

  • General: The device is a monitor. If a patient has low SpO2 readings accompanied by symptoms (severe shortness of breath, confusion, cyanosis), administer oxygen if trained to do so and seek emergency medical help immediately.
  • Skin Irritation: Discontinue use if skin irritation occurs at the sensor site.
  • Battery Leakage: If battery chemicals contact skin, rinse thoroughly with water.

3. FIRE FIGHTING MEASURES

  • Flammability: Plastic casing and electronic components are combustible.
  • Extinguishing Media: For electrical fires, use CO₂ or dry chemical extinguisher.
  • Special Procedures: Standard procedures for small electronics apply.
