A Macintosh Bulb Laryngoscope is a rigid laryngoscope with curved Macintosh blade (sizes 0-4, 70-160 mm) featuring a distal incandescent (xenon, krypton, halogen) or LED bulb at the blade tip for direct illumination during tracheal intubation. The curved blade design allows indirect epiglottis elevation by placing the tip in the vallecula, requiring less force and neck extension than straight blades. Features stainless steel reusable blades (or disposable plastic), ergonomic handles with knurled grip, ISO standard hook-on fittings, and autoclavable options. Light output 500-3,000 Lux depending on bulb type and battery condition. Primary clinical applications include routine and emergency tracheal intubation during general anesthesia, difficult airway management, cervical spine precautions (minimal neck movement), rapid sequence intubation, neonatal and pediatric intubation (sizes 0-2), teaching and training, and use in resource-limited settings. Class II medical device requiring FDA clearance. Critical safety considerations include pre-use light check (brightness, bulb security), appropriate blade size selection, proper lifting technique (not levering on teeth), battery verification, bulb obstruction risk from secretions, backup device availability, and infection control (sterilization or disposable blades).

Compare

Add to wishlist

Categories: ANESTHESIA AND RESPIRATORY EQUIPMENT, Airway Management, DIAGNOSTIC EQUIPMENT, Diagnostic Kits, Single-Use Procedure Trays and Packs, SURGICAL INSTRUMENTS AND SUPPLIES Tags: Airway Management, Anesthesiology, Bulb Laryngoscope, Conventional Laryngoscope, Emergency Intubation, Macintosh Laryngoscope, Tracheal Intubation

Description

Macintosh Bulb Laryngoscope

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Routine and Emergency Tracheal Intubation:

Primary Use: Provides direct visualization of the glottis for tracheal intubation during general anesthesia, emergency resuscitation, and critical care. The Macintosh curved blade design allows elevation of the epiglottis indirectly by placing the tip in the vallecula, providing a clear view of the vocal cords for tube passage.
How it helps: Gives anesthesiologists and emergency physicians a reliable, time-tested tool to secure a patient’s airway, ensuring oxygen can reach the lungs when patients cannot breathe on their own.

2. Difficult Airway Management:

Primary Use: The familiar Macintosh design with distal bulb illumination provides reliable lighting in patients with difficult airway anatomy, though the bulb-at-tip design may be more susceptible to obstruction by secretions or blood compared to fiber optic illumination.
How it helps: Provides a dependable option when facing challenging airways, giving clinicians a tool they know well when every second counts.

3. Cervical Spine Precautions:

Primary Use: Allows intubation with manual in-line stabilization in patients with suspected or confirmed cervical spine injuries. The curved blade design requires less force and neck extension compared to straight blades, reducing cervical spine movement during intubation.
How it helps: Protects patients with neck injuries from further spinal cord damage during intubation, ensuring their airway is secured without compromising their injured cervical spine.

4. Rapid Sequence Intubation:

Primary Use: Used in emergency settings for rapid sequence intubation where speed and first-pass success are critical. The simple, reliable bulb design has no fragile fiber optics to break, making it durable for emergency use.
How it helps: Provides emergency physicians with a rugged, dependable tool that won’t fail when seconds matter most, ensuring patients in crisis receive life-saving airway support.

5. Neonatal and Pediatric Intubation:

Primary Use: Smaller Macintosh blades (size 0-2) with distal bulb illumination allow visualization of the pediatric airway in neonates, infants, and children requiring intubation.
How it helps: Gives pediatric specialists the appropriately sized tools they need to secure airways in the smallest patients, from premature infants to young children.

6. Teaching and Training:

Primary Use: The direct bulb illumination provides adequate visualization for instructors teaching laryngoscopy technique to trainees in routine airway situations.
How it helps: Trains the next generation of airway specialists on the fundamental skills they will use throughout their careers, building competence and confidence.

7. Resource-Limited Settings:

Primary Use: The simple bulb-at-tip design is less expensive, more durable, and easier to maintain than fiber optic or video systems, making it suitable for use in resource-limited healthcare settings.
How it helps: Brings life-saving airway management capability to hospitals and clinics around the world that cannot afford or maintain more complex equipment, ensuring patients everywhere have access to emergency care.

SECONDARY & SUPPORTIVE USES

1. Airway Assessment: Provides visualization of the oropharynx and glottis for preoperative airway evaluation, helping anesthesiologists plan their approach before surgery.

2. Foreign Body Removal: Assists in visualization and removal of foreign bodies from the upper airway, helping retrieve objects that are blocking breathing.

3. Endotracheal Tube Position Confirmation: Allows direct visualization of tube passage through vocal cords, ensuring the breathing tube is correctly placed before ventilation begins.

4. Suctioning Under Direct Vision: Enables targeted suctioning of secretions under direct visualization, clearing the airway of blood or mucus that could interfere with intubation.

5. Backup Device: Serves as reliable backup when fiber optic or video systems fail, ensuring patient care can continue even when advanced equipment malfunctions.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: Rigid laryngoscope with Macintosh curved blade and distal incandescent or LED bulb for tracheal intubation.
Common Names: Macintosh Laryngoscope, Conventional Laryngoscope, Bulb Laryngoscope, Standard Laryngoscope.
Components:
- Handle: Contains batteries and provides grip; standard or stubby sizes.
- Blade: Macintosh curved blade with distal bulb holder and bulb.

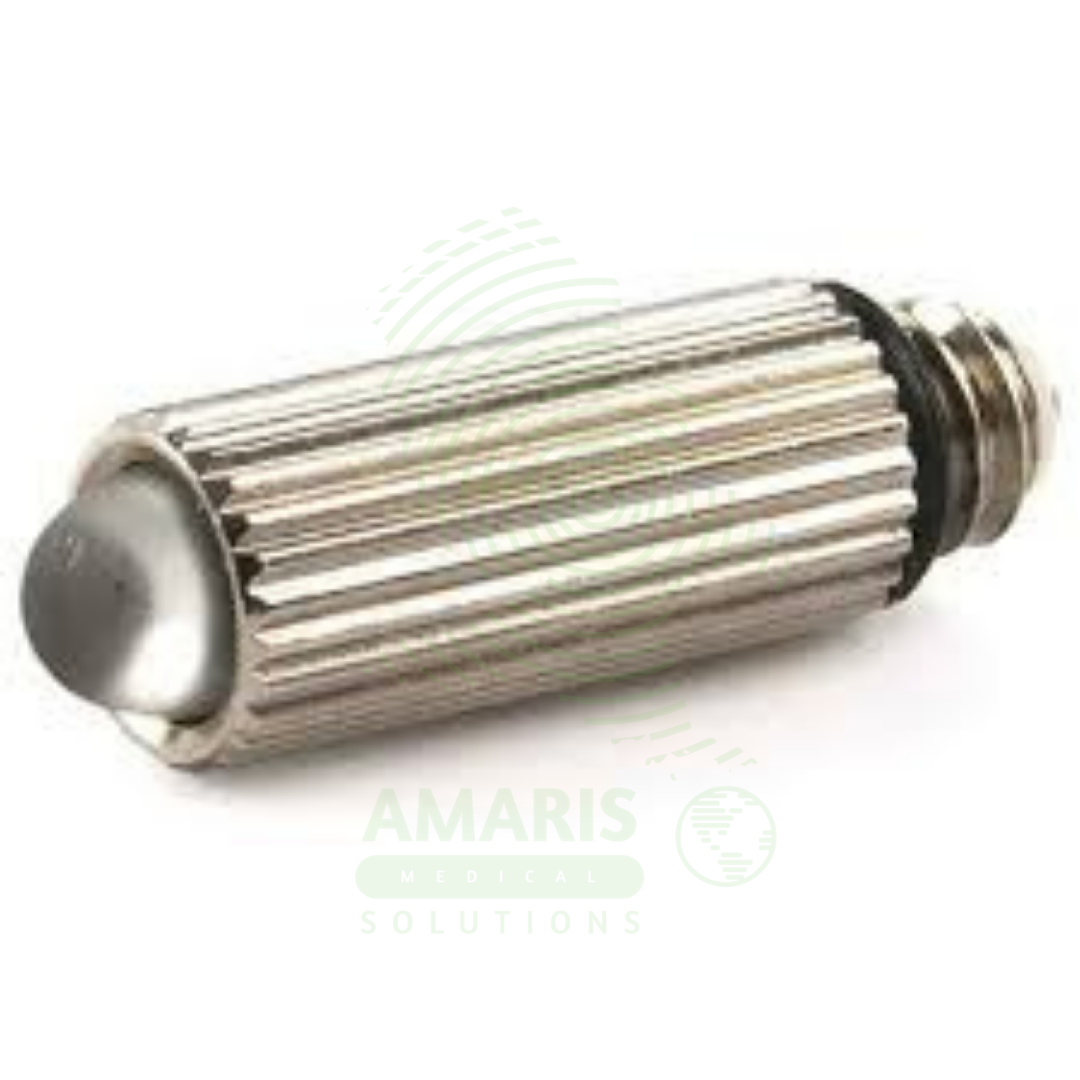

- Bulb: Incandescent (xenon, krypton, halogen) or LED bulb at blade tip.
- Contact: Electrical contacts between handle and blade for power transmission.
Blade Sizes: 0 (neonatal), 1 (infant), 2 (child/small adult), 3 (adult), 4 (large adult).
Blade Length: 70-160 mm depending on size.
Blade Material: Stainless steel with bulb holder at distal tip.

2. TECHNICAL & PERFORMANCE PROPERTIES

Illumination Source: Incandescent bulb (xenon, krypton, halogen) or LED at blade tip.
Light Output: 500-3,000 Lux depending on bulb type and battery condition.
Bulb Life: 2-20 hours for incandescent; 10,000+ hours for LED.
Battery Type: C, AA, or proprietary rechargeable lithium-ion; 2-4 hours continuous use.
Blade Curvature: Radius of curvature 30-45 mm; designed to fit vallecula and lift epiglottis indirectly.
Blade Flange: Height 10-20 mm; provides channel for tube passage and displaces tongue.
Blade Tip: Rounded, blunt tip with bulb housing designed for vallecula placement without tissue trauma.
Contact System: International Standard (ISO 7376) hook-on or fiber optic-compatible fittings.

3. PHYSICAL & OPERATIONAL PROPERTIES

Handle Material: Stainless steel, anodized aluminum, or chrome-plated brass; knurled or textured grip.
Blade Material: Stainless steel (reusable) or medical-grade plastic (disposable).
Bulb Access: Screw-in or bayonet mount for bulb replacement.
Weight: 8-16 ounces complete (handle + blade).
Connection: International Standard (ISO 7376) hook-on fitting; compatible across manufacturers.
Battery Access: Screw-on or snap-off cap; may be sealed or unsealed.
Light Activation: Automatic when blade is deployed (most models) or manual switch.
Cleaning Compatibility: Fully immersible for cleaning; some models autoclavable (with battery removed).

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Class II medical device requiring FDA 510(k) clearance.
Intended Use: Indicated for oral intubation providing direct visualization of the glottis.
Electrical Safety: Compliant with IEC 60601-1 for medical electrical equipment; battery-operated.
Biocompatibility: Blade materials must be biocompatible for oral contact (ISO 10993).
Bulb Temperature: Incandescent bulbs generate heat; must remain within safe limits for tissue contact.
Autoclave Compatibility: Must withstand repeated steam sterilization cycles without degradation (if specified).
Contact Reliability: Electrical contacts must maintain connection during use without intermittent failure.
ISO Compliance: Meets ISO 7376 for handle/blade compatibility and blade dimensions.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store blades and handles in a clean, dry environment; blade storage rack or case; protect from impact.
Cleaning: Manual cleaning with enzymatic detergent; rinse thoroughly; dry before sterilization.
Sterilization: Steam autoclave (gravity or prevacuum) at 132-135°C for 3-4 minutes (wrapped) for autoclavable models. Remove batteries before autoclaving.
Bulb Replacement: Check bulb brightness regularly; replace dim or failed bulbs immediately. Keep spare bulbs available.
Battery Maintenance: Use only specified batteries; remove if storing long-term; recharge rechargeables per manufacturer.
Contact Cleaning: Clean electrical contacts to ensure reliable connection; inspect for corrosion.
Inspection: Check bulb brightness, blade locking mechanism, and electrical contact before each use.
Replacement: Replace when bulb holder is damaged, when blade bent, or when locking mechanism fails.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Provides direct visualization for tracheal intubation during general anesthesia, emergency resuscitation, and critical care using the standard Macintosh curved blade design with distal bulb illumination.
Limitation: Bulb-at-tip design may be obscured by secretions, blood, or vomitus; requires direct line-of-sight to glottis; less bright than fiber optic or video systems.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Light Check Before Use: Verify bright, white light before each intubation attempt; dim or yellow bulb indicates low battery or failing bulb.
Bulb Security: Ensure bulb is fully seated and tight; loose bulb may fail during procedure.
Blade Selection: Choose appropriate blade size for patient anatomy; too small fails to lift epiglottis; too large causes trauma.
Technique: Place blade tip in vallecula; lift upward at 45-degree angle (not levering on teeth). Bulb position does not replace proper technique.
Tooth Protection: Avoid using blade as lever on upper teeth; use lifting motion to prevent dental trauma.
Sterility: Use sterile blade for surgical cases; high-level disinfection for non-sterile procedures.
Battery Check: Verify adequate battery charge before procedure; have backup handle available.
Bulb Obstruction: Secretions, blood, or vomitus may obscure the bulb; have suction ready and backup blade available.
Alternative Available: Always have backup laryngoscope (fiber optic or video) available for difficult airways.
Infection Control: Clean and sterilize between patients per facility protocol; disposable blades eliminate reprocessing concerns.

2. FIRST AID MEASURES

Bulb Failure: Replace bulb if loose; if failed, switch to backup blade or device.
Light Failure: Check battery; replace handle; have backup device available.
Blade Lock Failure: Remove blade; use backup device; do not attempt intubation with unstable blade.
Patient Trauma: If dental or soft tissue injury occurs, document and manage per protocol.
Bulb Breakage in Airway: If bulb breaks during use, carefully remove fragments; bronchoscopy may be required; document incident.

3. FIRE FIGHTING MEASURES

Flammability: Metal components non-combustible; plastic handles combustible.
Extinguishing Media: For electrical fire, use CO₂ or dry chemical (Class C) extinguisher.
