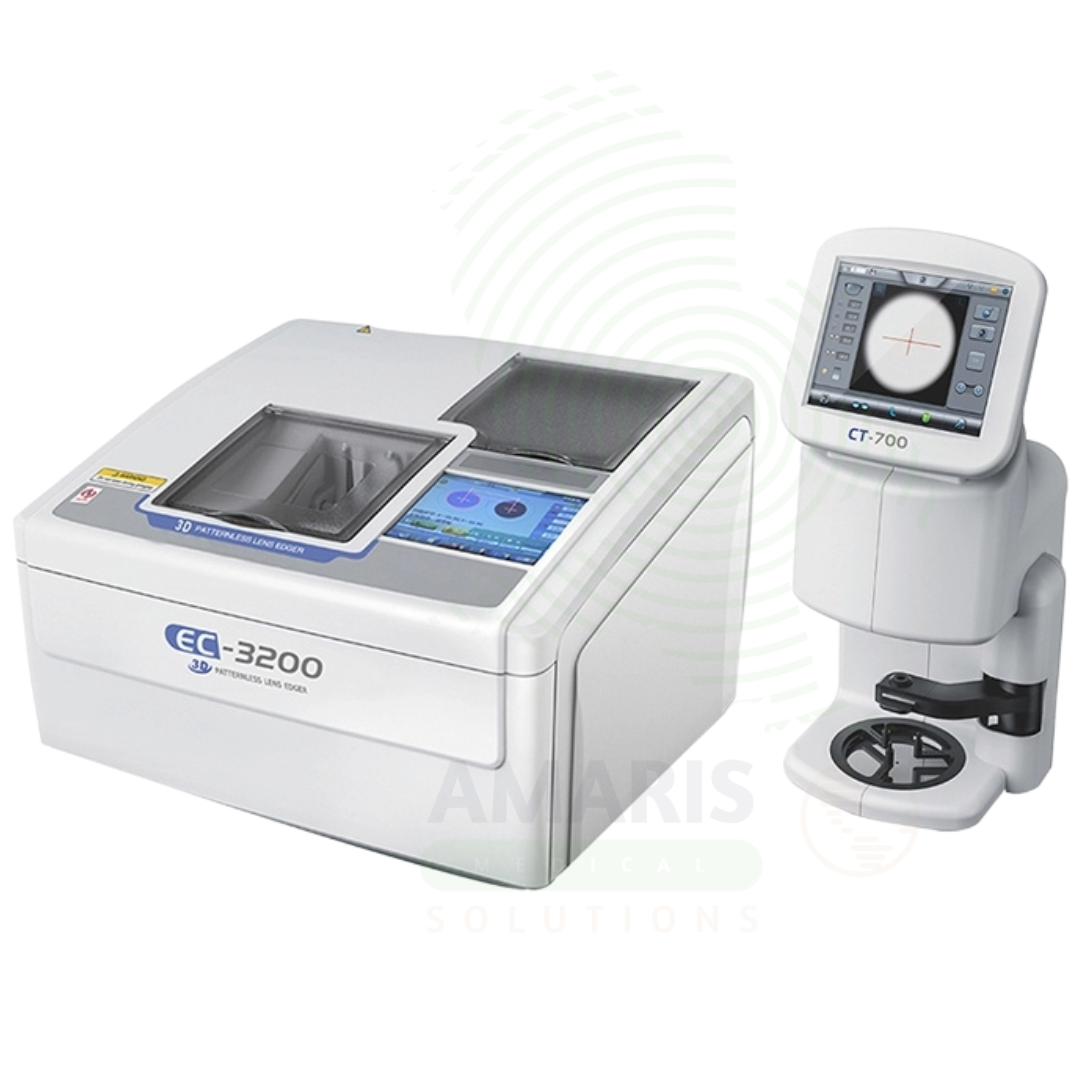

3D Patternless Lens Edger

3D Patternless Lens Edger

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Automated Lens Edging for Prescription Eyeglasses

• Primary Use: Automatically cuts and shapes eyeglass lenses to fit into frames using digital 3D tracing technology without requiring physical patterns. The system traces the frame shape digitally and calculates the optimal lens shape, then grinds the lens to precise specifications.

• How it helps: For the optician and optical laboratory technician, the patternless edger streamlines lens fabrication—eliminating the need for physical patterns, reducing errors, and increasing efficiency. For the patient, this means faster turnaround time for prescription glasses and more precise lens fitting.

2. 3D Digital Frame Tracing

• Primary Use: Uses digital tracing technology to capture the exact shape of the frame groove, including contours, curvature, and bevel placement. The 3D tracing ensures accurate lens fitting with proper bevel alignment.

• How it helps: For the optical professional, 3D tracing provides precise frame data that ensures lenses fit perfectly—reducing the need for manual adjustments and minimizing remakes. For the patient, perfectly fitted lenses mean better visual alignment, improved comfort, and reduced lens stress that could lead to breakage.

3. High-Resolution Lens Blocking

• Primary Use: Uses digital blocking technology to position the lens correctly for edging, ensuring accurate optical center placement and proper axis alignment for astigmatism correction. The system automatically calculates the optimal blocking position.

• How it helps: For the optical technician, automated blocking ensures that the optical center of the lens aligns precisely with the patient’s visual axis—critical for maintaining the prescribed correction. For the patient, accurate optical center placement means clear vision and reduced adaptation issues with new glasses.

4. Multi-Material Capability

• Primary Use: Capable of edging a wide range of lens materials including high-index, polycarbonate, Trivex, and standard plastic. The system adjusts grinding parameters automatically based on lens material to prevent chipping or damage.

• How it helps: For the optical laboratory, multi-material capability allows fabrication of all lens types with a single machine—reducing equipment needs and increasing versatility. For the patient, this means access to the full range of lens materials, including thinner, lighter, and impact-resistant options.

5. Integrated Bevel and Groove Cutting

• Primary Use: Automatically cuts bevels for rimless frames and grooves for semi-rimless (supra) frames. The system calculates the optimal bevel position based on frame curvature and lens thickness.

• How it helps: For the optician, integrated bevel and groove cutting enables fabrication of all frame types—from full-rim to semi-rimless to rimless—with a single machine. For the patient, this means access to a wider selection of frame styles without compromising lens fit or aesthetics.

SECONDARY & SUPPORTIVE USES

1. Prescription Verification: Some models include integrated lens measurement to verify prescription before edging.

2. Pattern Storage: Digital storage of frame patterns for repeat orders and customer records.

3. Remote Order Processing: Integration with laboratory management systems for remote order processing.

4. Repair and Replacement Lenses: Edging of replacement lenses for existing frames.

5. Safety Eyewear: Edging of lenses for safety frames and industrial eyewear.

6. Sun Lens Tinting Compatibility: Processing of lenses for tinting after edging.
