Lithotripter (ESWL Systems) Amaris Medical

ESWL Lithotripter Systems

WhatsApp Order

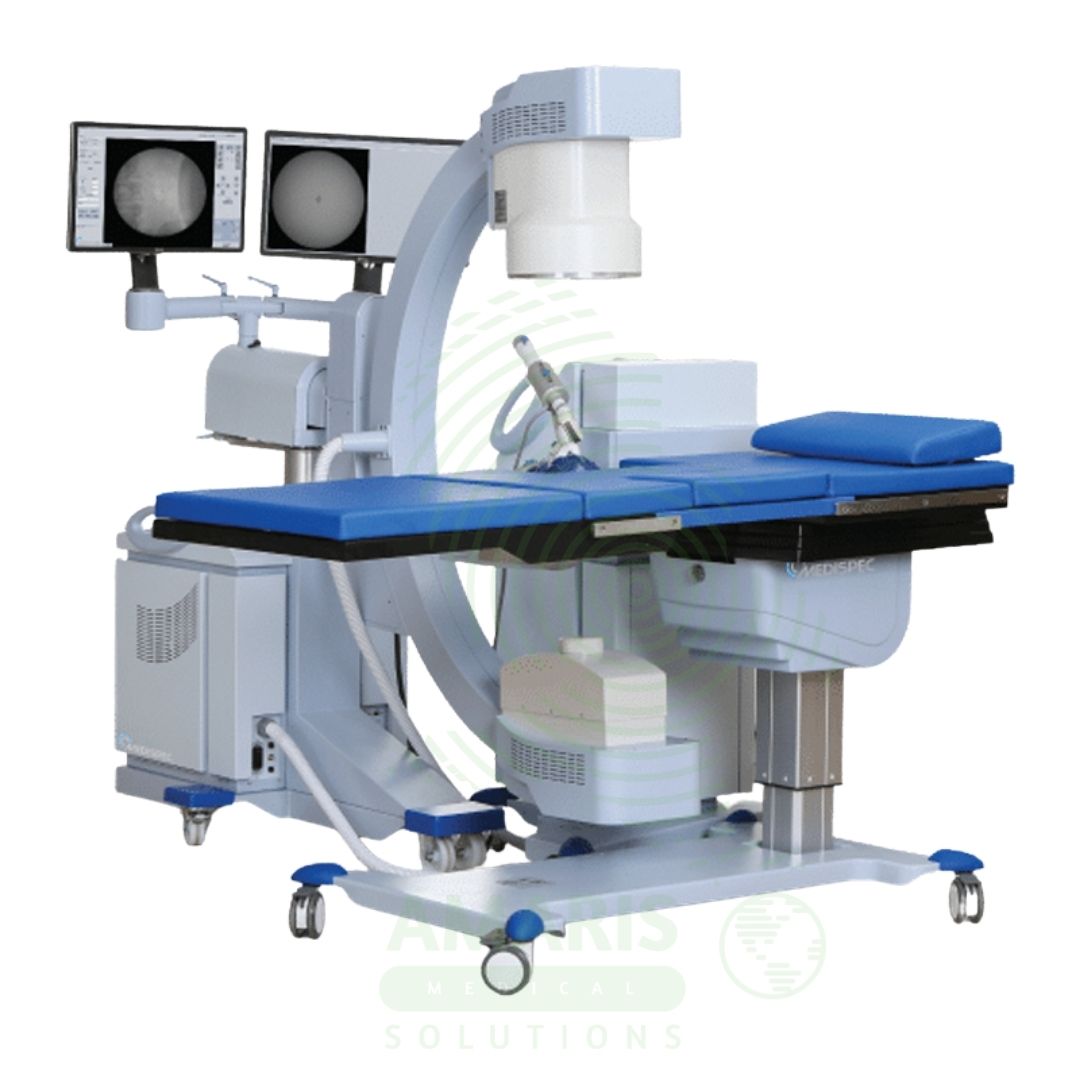

A ESWL Lithotripter Systems is a non-invasive surgical device that uses focused, high-energy acoustic shock waves generated outside the body to fragment kidney and upper ureteral stones. The patient lies on a table while integrated imaging (fluoroscopy/ultrasound) is used to target the stone precisely at the shock wave focal point. Treatment success depends on stone size, location, and composition. While avoiding surgical incisions, the procedure requires meticulous safety protocols to manage risks such as renal injury, bleeding, and radiation exposure. It is a capital-intensive, fixed equipment system that defines the modern, non-invasive approach to urolithiasis.

Categories: UROLOGY AND NEPHROLOGY, Lithotripters Tags: ESWL, KidneyStoneTreatment, Lithotripter, MedicalCapitalEquipment, NonInvasiveSurgery, ShockWaveLithotripsy, UrologyEquipment

Description

ESWL Lithotripter Systems

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Non-Invasive Kidney Stone Fragmentation

Primary Use: Treats renal calculi (kidney stones) located in the kidney or upper ureter without surgical incision by directing focused shock waves generated outside the body at the stone to break it into small fragments that can be passed naturally.
How it helps: For the urologist, ESWL transforms the management of kidney stones from an invasive procedure to an outpatient event—targeting stones with precisely focused energy while the patient rests comfortably. For the patient experiencing the excruciating pain of kidney stones, this technology offers the hope of fragmenting their stone into passable dust without a single incision, no hospital stay, and a rapid return to normal life.

2. Ureteral Stone Treatment

Primary Use: Used for stones located in the proximal (upper) ureter, particularly those that are not amenable to endoscopic removal or have failed to pass spontaneously.
How it helps: For the urologic surgeon, ESWL provides a valuable option for stones lodged in hard-to-reach locations, avoiding the need for more invasive ureteroscopic approaches. For the patient with a stone stuck in the ureter causing persistent pain and obstruction, shock wave therapy offers a chance to break the stone where it sits, relieving the blockage and allowing normal urine flow to resume without surgical instrumentation.

3. Gallstone Fragmentation (Historical/Selected Use)

Primary Use: While largely superseded by laparoscopic cholecystectomy, ESWL has been used for fragmentation of gallstones in selected patients who are not surgical candidates.
How it helps: For the gastroenterologist managing a patient too frail for surgery, ESWL once offered a non-invasive alternative for symptomatic gallstones. For the high-risk surgical patient with symptomatic gallbladder stones, this approach provided relief without the risks of general anesthesia and abdominal surgery, though today it remains a niche application for carefully selected individuals.

SECONDARY & SUPPORTIVE USES

1. Salivary Gland Stone Fragmentation: For the otolaryngologist (ENT specialist) and oral surgeon, ESWL technology adapted for sialolithiasis offers a non-invasive method to treat obstructive stones in the salivary glands. For the patient suffering from painful salivary stones that block saliva flow and cause recurrent gland swelling, this means relief without surgical duct exploration or gland removal.

2. Pancreatic Duct Stone Fragmentation: For the gastroenterologist specializing in pancreatic disorders, ESWL can fragment stones obstructing the pancreatic duct in chronic pancreatitis. For the patient with chronic pancreatitis whose life is dominated by severe pain from blocked ducts, fragmenting these stones can relieve obstruction, reduce pain episodes, and delay or avoid more invasive surgical interventions.

3. Orthopedic Applications (ESWT): While a general lithotripter is not typically used for this, the principle of Extracorporeal Shock Wave Therapy has been adapted for orthopedic conditions like plantar fasciitis and non-union fractures. For the patient with chronic heel pain that hasn’t responded to conservative care, this technology stimulates healing in tissues that have failed to repair themselves, offering hope when other treatments have failed.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A large, fixed or mobile, electromechanical medical system that generates focused, high-energy acoustic shock waves for non-invasive stone fragmentation.
Designation: "ESWL" stands for Extracorporeal Shock Wave Lithotripsy. Systems are often referred to by their shock wave generation method.
Core Shock Wave Generation Technologies:
- Electrohydraulic (Spark Gap): The original method. A high-voltage spark underwater creates a plasma expansion, generating a shock wave.
- Electromagnetic: An electric current through a coil creates a magnetic field that repels a metal membrane, generating a shock wave. Common in modern systems.
- Piezoelectric: An array of piezoelectric crystals vibrates when electrified, generating a shock wave. Produces a precise focal zone.
Core System Components:
- Shock Wave Generator: The core engine using one of the above technologies.
- Focusing System (Ellipsoid Reflector or Acoustic Lens): Directs and focuses the shock waves to a precise point (F2 focal point).
- Patient Coupling System: A water-filled cushion or tub that makes direct contact with the patient's skin, allowing shock waves to pass into the body with minimal energy loss.
- Imaging System: Integrated fluoroscopy (C-arm) and/or ultrasound for real-time stone localization, targeting, and treatment monitoring.
- Patient Table: Integrated, specialized table for positioning the patient over the shock wave source.

2. TECHNICAL & PERFORMANCE PROPERTIES

Focal Zone Size & Pressure: The volume where the shock wave energy is concentrated (typically ellipsoid) and the peak positive pressure (in megapascals, MPa) achieved. A smaller focal zone is more precise but requires more accurate targeting.
Energy Flux Density (ED): The energy per unit area at the focal point (mJ/mm²). Adjustable to match stone composition and patient tolerance.
Penetration Depth: The distance from the coupling surface to the focal point, determining the depth of treatable stones within the body.
Imaging Capability: The quality and flexibility of the integrated imaging (fluoroscopy dose, ultrasound resolution) are critical for treatment success.

3. PHYSICAL & OPERATIONAL PROPERTIES

Form Factor: Large console systems, often mounted on ceiling tracks or with mobile C-arms. Some are mobile units on wheels.
Water Management: Requires a water degassing system and temperature control for the coupling medium to ensure consistent shock wave propagation.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Classified as a Class II or higher medical device (moderate to high risk) due to its tissue-interactive energy.
Radiation Safety: Systems with integrated fluoroscopy are radiation-emitting devices and must comply with stringent radiological safety regulations. Operators require appropriate licensing.
Electrical Safety: Must comply with the highest grades of medical electrical equipment safety standards (IEC 60601-1 and its particular standards for lithotripters).

5. STORAGE & HANDLING ATTRIBUTES

Storage: Installed in a dedicated procedure room. Requires a stable environment free from excessive dust and humidity.
Cleaning & Disinfection: The patient coupling membrane must be cleaned and disinfected between patients. The exterior is wiped down. The internal water system requires periodic maintenance as per manufacturer schedule.
Quality Assurance: Regular performance testing (using phantom stones) and calibration of imaging and shock wave energy output are mandatory.
Preventive Maintenance: Requires scheduled service by specialized engineers.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: The cornerstone of non-invasive surgical stone management in Urology departments, often housed in an operating room or specialized procedure suite.
Clinical Role: Used as a first-line treatment for eligible stones (typically <2 cm, located in the kidney). The procedure is usually performed under sedation or light anesthesia.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Contraindications: ABSOLUTE: Pregnancy, untreated bleeding disorders, aortic/renal artery aneurysm near the stone, obstruction distal to the stone. RELATIVE: Severe obesity (exceeds machine's focal depth), hard stones (e.g., cystine, calcium oxalate monohydrate), uncontrolled UTI, pacemaker/ICD (requires cardiology consultation).
Cardiac Synchronization: For renal treatments, shock waves are typically triggered by the R-wave of the patient's ECG to reduce the risk of cardiac arrhythmias.
Lung Tissue Protection: The lung parenchyma is highly susceptible to shock wave damage. Never target stones in the upper pole of the kidney without proper lung shielding protocols.
Renal Injury Mitigation: Using the lowest effective energy level and limiting the number of shocks helps reduce the risk of perirenal hematoma and long-term renal injury.
Radiation Safety: Adhere to ALARA principles for fluoroscopy use. Staff must wear lead aprons and thyroid shields; the patient's gonads should be shielded.

2. FIRST AID MEASURES

Perirenal Hematoma: If suspected post-procedure (flank pain, dropping hematocrit, hypotension), manage supportively with bed rest, hydration, and blood transfusion if necessary. Severe cases may require embolization or surgery.
Steinstrasse ("Street of Stones"): A column of fragments obstructing the ureter. May require emergency ureteroscopy or stent placement for relief.
Severe Hematuria: Usually transient. If persistent and heavy, may require cystoscopy with fulguration or other interventions.

3. FIRE FIGHTING MEASURES

Flammability: Contains combustible electrical and plastic components. The high-voltage section of electrohydraulic systems presents a significant ignition risk.
Extinguishing Media: In case of fire, immediately cut power at the main breaker. Use a CO2 or dry chemical (Class C) fire extinguisher. Do not use water due to electrical hazards.

ESWL Lithotripter Systems

ESWL Lithotripter Systems

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Non-Invasive Kidney Stone Fragmentation

Primary Use: Treats renal calculi (kidney stones) located in the kidney or upper ureter without surgical incision by directing focused shock waves generated outside the body at the stone to break it into small fragments that can be passed naturally.

2. Ureteral Stone Treatment

Primary Use: Used for stones located in the proximal (upper) ureter, particularly those that are not amenable to endoscopic removal or have failed to pass spontaneously.

3. Gallstone Fragmentation (Historical/Selected Use)

Primary Use: While largely superseded by laparoscopic cholecystectomy, ESWL has been used for fragmentation of gallstones in selected patients who are not surgical candidates.

SECONDARY & SUPPORTIVE USES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A large, fixed or mobile, electromechanical medical system that generates focused, high-energy acoustic shock waves for non-invasive stone fragmentation.

Designation: "ESWL" stands for Extracorporeal Shock Wave Lithotripsy. Systems are often referred to by their shock wave generation method.

Core Shock Wave Generation Technologies:

Electrohydraulic (Spark Gap): The original method. A high-voltage spark underwater creates a plasma expansion, generating a shock wave.

Electromagnetic: An electric current through a coil creates a magnetic field that repels a metal membrane, generating a shock wave. Common in modern systems.

Piezoelectric: An array of piezoelectric crystals vibrates when electrified, generating a shock wave. Produces a precise focal zone.

Core System Components:

Shock Wave Generator: The core engine using one of the above technologies.

Focusing System (Ellipsoid Reflector or Acoustic Lens): Directs and focuses the shock waves to a precise point (F2 focal point).

Patient Coupling System: A water-filled cushion or tub that makes direct contact with the patient's skin, allowing shock waves to pass into the body with minimal energy loss.

Imaging System: Integrated fluoroscopy (C-arm) and/or ultrasound for real-time stone localization, targeting, and treatment monitoring.

Patient Table: Integrated, specialized table for positioning the patient over the shock wave source.

2. TECHNICAL & PERFORMANCE PROPERTIES

Focal Zone Size & Pressure: The volume where the shock wave energy is concentrated (typically ellipsoid) and the peak positive pressure (in megapascals, MPa) achieved. A smaller focal zone is more precise but requires more accurate targeting.

Energy Flux Density (ED): The energy per unit area at the focal point (mJ/mm²). Adjustable to match stone composition and patient tolerance.

Penetration Depth: The distance from the coupling surface to the focal point, determining the depth of treatable stones within the body.

Imaging Capability: The quality and flexibility of the integrated imaging (fluoroscopy dose, ultrasound resolution) are critical for treatment success.

3. PHYSICAL & OPERATIONAL PROPERTIES

Form Factor: Large console systems, often mounted on ceiling tracks or with mobile C-arms. Some are mobile units on wheels.

Water Management: Requires a water degassing system and temperature control for the coupling medium to ensure consistent shock wave propagation.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Classified as a Class II or higher medical device (moderate to high risk) due to its tissue-interactive energy.

Radiation Safety: Systems with integrated fluoroscopy are radiation-emitting devices and must comply with stringent radiological safety regulations. Operators require appropriate licensing.

Electrical Safety: Must comply with the highest grades of medical electrical equipment safety standards (IEC 60601-1 and its particular standards for lithotripters).

5. STORAGE & HANDLING ATTRIBUTES

Storage: Installed in a dedicated procedure room. Requires a stable environment free from excessive dust and humidity.

Cleaning & Disinfection: The patient coupling membrane must be cleaned and disinfected between patients. The exterior is wiped down. The internal water system requires periodic maintenance as per manufacturer schedule.

Quality Assurance: Regular performance testing (using phantom stones) and calibration of imaging and shock wave energy output are mandatory.

Preventive Maintenance: Requires scheduled service by specialized engineers.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: The cornerstone of non-invasive surgical stone management in Urology departments, often housed in an operating room or specialized procedure suite.

Clinical Role: Used as a first-line treatment for eligible stones (typically <2 cm, located in the kidney). The procedure is usually performed under sedation or light anesthesia.

1. SAFETY PRECAUTIONS

Cardiac Synchronization: For renal treatments, shock waves are typically triggered by the R-wave of the patient's ECG to reduce the risk of cardiac arrhythmias.

Lung Tissue Protection: The lung parenchyma is highly susceptible to shock wave damage. Never target stones in the upper pole of the kidney without proper lung shielding protocols.

Renal Injury Mitigation: Using the lowest effective energy level and limiting the number of shocks helps reduce the risk of perirenal hematoma and long-term renal injury.

Radiation Safety: Adhere to ALARA principles for fluoroscopy use. Staff must wear lead aprons and thyroid shields; the patient's gonads should be shielded.

2. FIRST AID MEASURES

Perirenal Hematoma: If suspected post-procedure (flank pain, dropping hematocrit, hypotension), manage supportively with bed rest, hydration, and blood transfusion if necessary. Severe cases may require embolization or surgery.

Steinstrasse ("Street of Stones"): A column of fragments obstructing the ureter. May require emergency ureteroscopy or stent placement for relief.

Severe Hematuria: Usually transient. If persistent and heavy, may require cystoscopy with fulguration or other interventions.

3. FIRE FIGHTING MEASURES

Flammability: Contains combustible electrical and plastic components. The high-voltage section of electrohydraulic systems presents a significant ignition risk.

Extinguishing Media: In case of fire, immediately cut power at the main breaker. Use a CO2 or dry chemical (Class C) fire extinguisher. Do not use water due to electrical hazards.
