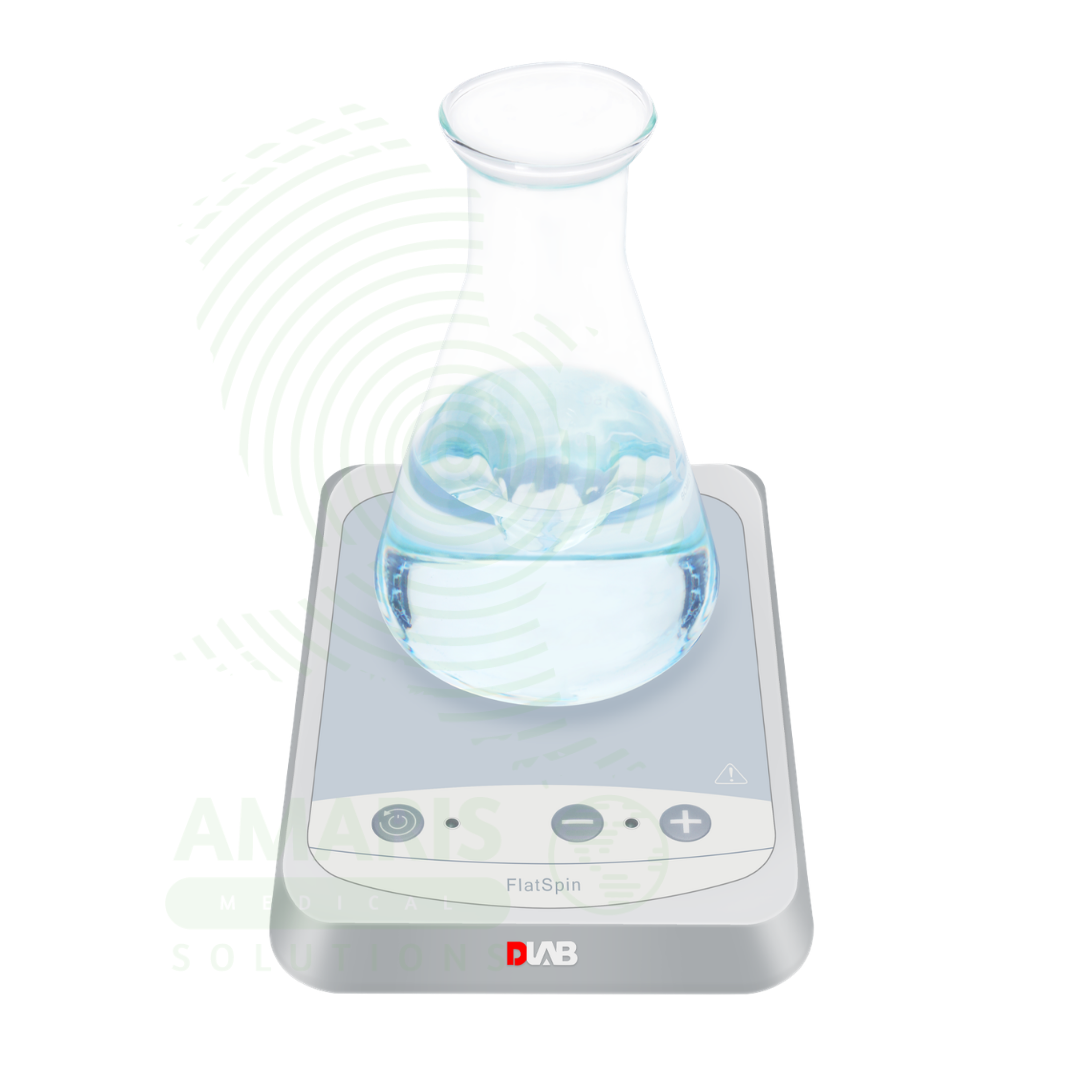

FlatSpin Ultra-flat Compact Magnetic Stirrer

WhatsApp Order
The FlatSpin Ultra-flat Compact Magnetic Stirrer is a revolutionary, non-heating magnetic stirrer designed for high-performance, space-saving mixing in clinical, analytical, and quality control laboratories. Its innovative motorless technology provides silent, vibration-free operation, making it ideal for sensitive titration procedures and use on crowded, space-constrained benchtops. With a maximum stirring capacity of 0.8 liters and an adjustable speed range of 15–1500 rpm, the FlatSpin is engineered for efficient and precise liquid mixing.
Every FlatSpin is built around a unique motorless design, eliminating source of mechanical noise and vibration while reducing maintenance needs. Featuring a chemical-resistant PET work plate with a Ø90 mm radius, it ensures long-lasting durability for daily lab work. The stirrer has a wide speed range from 15 to 1500 rpm controllable in 10 rpm increments with the push of a button, and a bright digital display indicates power and speed for precise monitoring.
Key user-focused features include its ultra-flat profile of only 15 mm, which allows it to fit almost anywhere, including under bottle-top burettes for seamless titrations. The built-in auto-reverse mode changes direction every 15 seconds to eliminate dead zones and improve mixing efficiency, especially for complex or viscous solutions. With an IP65 protection rating (on select models), the stirrer is safeguarded against splashes, making it suitable for use in demanding environments.
  • Cat. No.: 8030184000
  • Speed Range and Display: 15-1500 rpm, button control, bright indicator light
  • Stirring Capacity: 0.8L at H₂O
  • Magnetic Bar: Suitable for stir bars up to 40 mm in length
  • Protection Grade: IP21 or IP65 depending on model
  • Work Surface: PET top work plate with excellent chemical resistance
  • Weight and Dimensions: 0.3 kg, dimensions: 175 × 120 × 15 mm
  • Power and Standard: 5W, 100-120V / 200-240V AC, 50/60Hz, CE, etc.
For the analytical chemist performing precise titrations, the quality control technician preparing standards, or the educator teaching basic chemistry principles, the FlatSpin provides a unique combination of a powerful yet silent operation, an ultra-flat build, and wide speed range. For the patient, this instrument ensures that reagents, QC samples, and analytical standards are prepared accurately and reliably, which forms the bedrock of effective diagnostics, pharmaceutical safety, and regulatory compliance.
Description

FlatSpin Ultra-flat Compact Magnetic Stirrer

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Space-Saving, Quiet Mixing for Sensitive Clinical Assays and Titrations
Primary Use: Provides a non-heating, ultra-flat magnetic stirrer with a unique motorless design and a chemical-resistant PET top work plate (Ø90 mm), used for the gentle, vibration-free mixing of solutions in space-constrained clinical, analytical, and research laboratories. It features a speed range of 15 to 1500 rpm, an automatic reverse rotation function for superior mixing, and a maximum stirring capacity of 0.8 liters.
How it helps: For the clinical laboratory scientist and analytical chemist, the FlatSpin’s revolutionary motorless technology ensures ultra-silent and vibration-free operation, which is critical for sensitive analytical procedures on crowded benchtops. With a height of only 15 mm, it fits easily under a bottle-top burette during titrations and in tight spaces like culture hoods and glove boxes, freeing up valuable workspace. For the patient, the consistent and reproducible mixing of reagents and samples in quality control and analytical labs supports accurate diagnostic test results and pharmaceutical product safety.
2. General Chemical and Reagent Preparation for Sample Analysis
Primary Use: Used for the efficient and homogeneous mixing of a wide range of liquids, including buffers, standard solutions, and clinical reagents, before analysis. Despite its compact size, it is engineered for excellent mixing efficiency for most standard laboratory solutions.
How it helps: For the medical technologist, the FlatSpin’s simple push-button controls, a bright digital display, and an automatic reverse rotation mode that changes direction every 15 seconds provide powerful and even stirring for complex or colloidal solutions. Its PET work plate offers excellent chemical resistance to common laboratory acids and solvents, ensuring long-term durability. For the patient, this reliable preparation of chemical and biological reagents is the foundation of accurate diagnostic testing, leading to better clinical outcomes.
3. Sample Preparation in Point-of-Care and Decentralized Testing
Primary Use: Serves as an ideal mixing tool for small-volume sample preparation in point-of-care testing (POCT) settings, mobile laboratories, and space-constrained clinical stations, ensuring homogeneity for rapid diagnostic tests (RDTs) and other on-site assays.
How it helps: For the laboratory technician in a satellite or outreach clinic, the FlatSpin’s ultra-compact dimensions (175 × 120 × 15 mm) and light weight (0.3 kg) allow it to be easily stored and transported. Its quiet operation and IP65-rated splash resistance make it suitable for use in busy, humid environments or on open workbenches without disturbing nearby procedures. For the patient, proper sample preparation at the point of care leads to reliable, immediate results, enabling faster clinical decisions and treatment initiation.
4. Mixing for Educational and Teaching Laboratories
Primary Use: A durable and simple-to-use magnetic stirrer for undergraduate and graduate students in clinical laboratory science and chemistry courses, used to teach the principles of solution preparation, dissolution, and mixing.
How it helps: For the instructor, the FlatSpin’s single-button control and clear, easy-to-read speed display make it highly durable for student use. Its robust, easy-to-clean PET top and vibration-free operation ensure it can withstand daily use in a teaching environment. For the patient, well-trained future laboratory professionals, who are developed using reliable and intuitive equipment, are essential for the future of accurate diagnosis and safe clinical practice.

SECONDARY & SUPPORTIVE USES

1. Titration procedures (bottle-top burette): The ultra-flat 15 mm height allows the stirrer to be placed directly under a bottle-top burette, providing unobstructed, continuous stirring during analytical chemistry titrations without needing to transfer the beaker, making it the perfect magnetic stirrer for this application.
2. Automatic reverse rotation for enhanced mixing: The built-in auto-reverse mode automatically changes the direction of rotation every 15 seconds, which improves mixing efficiency for complex or colloidal solutions, prevents the formation of a central vortex, and helps keep solids evenly suspended.
3. Space-constrained workstations (fume hoods, glove boxes): With a footprint similar to a postcard and a height of only 15 mm, the FlatSpin is ideal for use in crowded fume hoods, biological safety cabinets, and glove boxes where vertical space is extremely limited and a traditional stirrer would not fit.
4. Educational and teaching laboratories: An ideal tool for practical work sessions and educational protocols, its simplicity, safety (IP65), and durable PET top make it perfect for teaching basic principles of solution mixing, dissolution testing, and homogenization in chemistry and biology labs.
5. Quality control (QC) sample preparation: In quality control laboratories, the FlatSpin ensures standard preparations and analytical protocols are performed with reliable and homogeneous stirring, improving the reproducibility of results for routine product testing.
6. Mobile and field laboratory testing: Its low power consumption (5W) and universal power supply make it suitable for mobile labs and field testing units. Some distributors also offer 12V DC options for portable use powered by a vehicle, enabling on-site environmental or food safety testing.
7. Dissolution testing and small-volume homogenization: The FlatSpin can be used for quick dissolution testing of tablets or powders in small volumes (up to 0.8L) and for light homogenization of suspensions in research and small-scale industrial settings.
KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

  • Device Type: A non-heating, ultra-flat compact magnetic stirrer with a unique motorless design.
  • Designation: DLAB FlatSpin Ultra-flat Compact Magnetic Stirrer,
  • Key Components:
    • PET (Polyethylene Terephthalate) top work plate (Ø90 mm) with excellent chemical resistance
    • Motorless technology for ultra-silent, vibration-free operation
    • ABS working platform (on some models)
    • Automatic reverse rotation function (reverses direction every 15 seconds)
    • Digital buttons for precise speed control
    • Bright LED display for speed and operation status
    • Universal 100-240V power supply
    • IP21 or IP65 protection class housing (varies by model)

2. TECHNICAL & PERFORMANCE PROPERTIES

  • Work plate dimensions: Ø90 mm
  • Work plate material: PET (Polyethylene Terephthalate) for excellent chemical durability
  • Stirring capacity (H₂O): 800 mL (0.8 L)
  • Speed range: 15 to 1500 rpm (digital, adjustable in 10 rpm increments)
  • Speed setting: Push-button controls, bright display indicates operation and speed
  • Reverse mode: Automatic rotation direction reversal every 15 seconds; can be activated/deactivated
  • Number of stirring positions: 1
  • Maximum magnetic bar length: 40 mm
  • Motor type: Motorless (magnetic drive technology)
  • Motor output power / Max. power: 3W / 5W
  • Voltage, Frequency: 100-120V / 200-240V, 50/60Hz (universal input)
  • Protection class (EN 60529): IP21 (on many models) or IP65 (on some models)
  • Dimensions (W × D × H): 175 × 120 × 15 mm (approx. 6.9 × 4.7 × 0.6 inches)
  • Weight: 0.3 kg (approx. 0.66 lbs)
  • Operating conditions: Temperature: 5–40 °C, Humidity: 80% RH

3. PHYSICAL & OPERATIONAL PROPERTIES

  • Construction: Ultra-flat, low-profile design (15 mm height) with a PET top and high-impact plastic housing. The motorless design means no mechanical wear and tear from brushes.
  • Display: Bright LED display for clear monitoring of stirring speed and operational status.
  • Operation: Simple, intuitive operation with easily accessible buttons for coarse and fine speed adjustment (10 rpm increments) and a dedicated button to activate the reverse mode. Vibration-free and practically inaudible operation.
  • Portability: Extremely light (0.3 kg) and compact, making it easy to store or move between workstations. Can be stored almost anywhere.
  • Magnetic stirring system: A powerful magnetic stirrer that uses innovative motorless magnetic drive technology to generate a uniform, silent, and stable rotating magnetic field.
  • Maintenance: Virtually maintenance-free. The PET top is easy to clean and resistant to most chemicals. The motorless design eliminates the need for routine brush replacements.
  • Physical capacity: Recommended for beakers with perfectly flat bottoms and magnetic stir bars ≤ 20 × 8 mm for optimal coupling. The platform can support up to 2 kg.

4. SAFETY & COMPLIANCE ATTRIBUTES

  • Regulatory Status: General laboratory equipment for in vitro diagnostic (IVD) use. TÜV-certified with CE, cTUVus, and FCC product safety certifications.
  • Splash Resistance (IP65 / IP21): An IP65 protection class rating (on select models) provides excellent protection against low-pressure water jets and dust, making it safe for use in humid environments or near open vessels. IP21 models provide protection against dripping water.
  • Electrical Safety: The motorless, brushless design ensures no sparks are generated, making it safer for use in environments with volatile chemicals. The universally-powered, low-voltage adapter provides electrical isolation. Complies with DIN/EN 60529 standards.
  • Low Power / Magnetic Safety: Extremely low power consumption (5W) runs cool. Follow standard magnetic safety precautions: keep the stirrer away from magnetic-sensitive devices like pacemakers, hard drives, and monitors.
  • Chemical Safety: The PET top is highly resistant to most chemicals, including strong acids and bases, and will not be damaged by spills, ensuring longevity.
  • Operational Safety: The reverse mode and digital speed control provide stable, consistent stirring, preventing uncontrolled splashing. An automatic cut-off likely prevents operation without the stir bar to save energy.

5. STORAGE & HANDLING ATTRIBUTES

  • Storage: The stirrer's ultra-flat, compact size (approx. 15 mm height) means it can be stored virtually anywhere, such as in a drawer, on a shelf, or even under a benchtop storage bin.
  • Cleaning: Unplug the unit before cleaning. Wipe the PET top plate and housing with a damp cloth or soft sponge using mild detergent or 70% isopropyl alcohol. The PET surface is resistant to most common lab reagents and is easy to disinfect. Do not immerse the unit in liquid. Dry thoroughly before reconnecting to power.
  • Pre-use inspection: Before each use, inspect the power cord and plug for damage. Ensure the work plate and the area are clean and dry.
  • Installation: Place on a stable, level, non-flammable benchtop with a flat bottom. The FlatSpin's low profile allows it to be placed on virtually any flat surface and even under a bottle-top burette.
  • Operation: Plug the stirrer into a standard grounded laboratory power outlet (100-240V). Place the beaker or vessel containing the stir bar centrally on the work plate. Start with the speed at a low setting, using the buttons to gradually increase to the desired speed. The bright LED display allows for precision setting. The reverse mode can be turned on or off via its own button.
  • Stirring Bar Care: The FlatSpin is optimized for stir bars 20 mm or 40 mm in length. Always use magnetic stir bars that are in good condition without chips or cracks. The platform works best with vessels that have perfectly flat bottoms.
  • Periodic verification: No special periodic maintenance or calibration is required for this non-heating stirrer. Simply verify that the unit powers on and the speed can be adjusted. The motorless design ensures consistent performance with no mechanical wear.
  • Reversal Mode Use: The auto-reverse function can improve mixing for certain applications. To activate, press the reverse button; the direction will automatically reverse every 15 seconds to enhance mixing efficiency, especially for colloidal solutions.

6. LABORATORY & CLINICAL APPLICATIONS

  • Primary Application: Gentle, vibration-free mixing of small-volume chemical and biological samples for titrations in analytical chemistry, preparation of standards and quality control materials in pharmaceutical labs, general liquid mixing in educational and research labs, and sample preparation for clinical assays.
  • Clinical Role: A specialized instrument for clinical diagnostic labs, analytical chemistry departments, pharmaceutical quality control (QC) labs, educational institutions, and research facilities. It is critical for titration procedures, mixing reagents for sensitive assays, and preparing solutions in space-constrained or quiet laboratory environments.
SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

  • Magnetic Device Safety: The FlatSpin contains strong permanent magnets. People with implanted medical devices (e.g., pacemakers, defibrillators, infusion pumps) should keep a safe distance (at least 30 cm). Keep the stirrer away from magnetic-sensitive media (hard drives, credit cards, monitors, CRTs).
  • Chemical Compatibility: While the PET work plate is chemically resistant, prolonged exposure to some concentrated acids or aggressive organic solvents could cause damage. Clean up spills promptly. Always refer to the SDS for the specific chemicals used and verify compatibility with PET plastic.
  • Vessel and Stir Bar Selection: For maximum efficiency and safety, use beakers or vessels with perfectly flat bottoms and low fluting. Recommended stir bar size is 20 × 8 mm or a maximum of 40 mm in length. Ensure the stir bar is properly centered before starting.
  • Start Slowly: Always start with the speed at its lowest setting and allow the stir bar to settle into rotation before gradually increasing to the desired speed. This prevents the stir bar from decoupling, which can cause splashing.
  • Cleaning: Disconnect the power supply before cleaning. Do not immerse or allow liquids to enter the instrument housing. The IP rating offers protection against splashes, not full immersion.
  • Training Requirement: Only trained laboratory personnel should operate the DLAB FlatSpin Ultra-flat Compact Magnetic Stirrer for clinical or diagnostic applications.

2. FIRST AID MEASURES

  • Sample Splash to Eyes: If a biological or chemical sample splashes into the eyes, flush immediately with water for 15 minutes and seek medical attention.
  • Skin Contact: Wash contaminated skin with soap and water thoroughly. If irritation or signs of infection develop, seek medical evaluation.
  • Chemical Exposure: If a hazardous chemical is spilled on the skin or clothing, refer to the specific Safety Data Sheet (SDS) for that chemical for detailed first-aid instructions.
  • Inhalation: If chemical vapors from volatile reagents are inhaled during sample preparation, move to fresh air immediately; seek medical attention if symptoms persist.
  • Electrical Shock: If an electrical shock incident occurs, disconnect power at the circuit breaker before attempting to assist the victim. Do not touch the victim until power is disconnected. Seek emergency medical attention.

3. FIRE FIGHTING MEASURES

  • Flammability: The PET work plate and plastic components of the stirrer housing are combustible. Do not operate near flammable solvents, gases, or volatile materials.
  • Extinguishing Media: Use carbon dioxide (CO₂) or a dry chemical extinguisher for fires involving electrical equipment. Do not use water on electrical fires.
  • Fire Response: The primary fire hazard is the flammable liquids being mixed. In case of fire, disconnect the stirrer from its power source if safe to do so, evacuate the area, and follow the laboratory's fire safety protocols.
