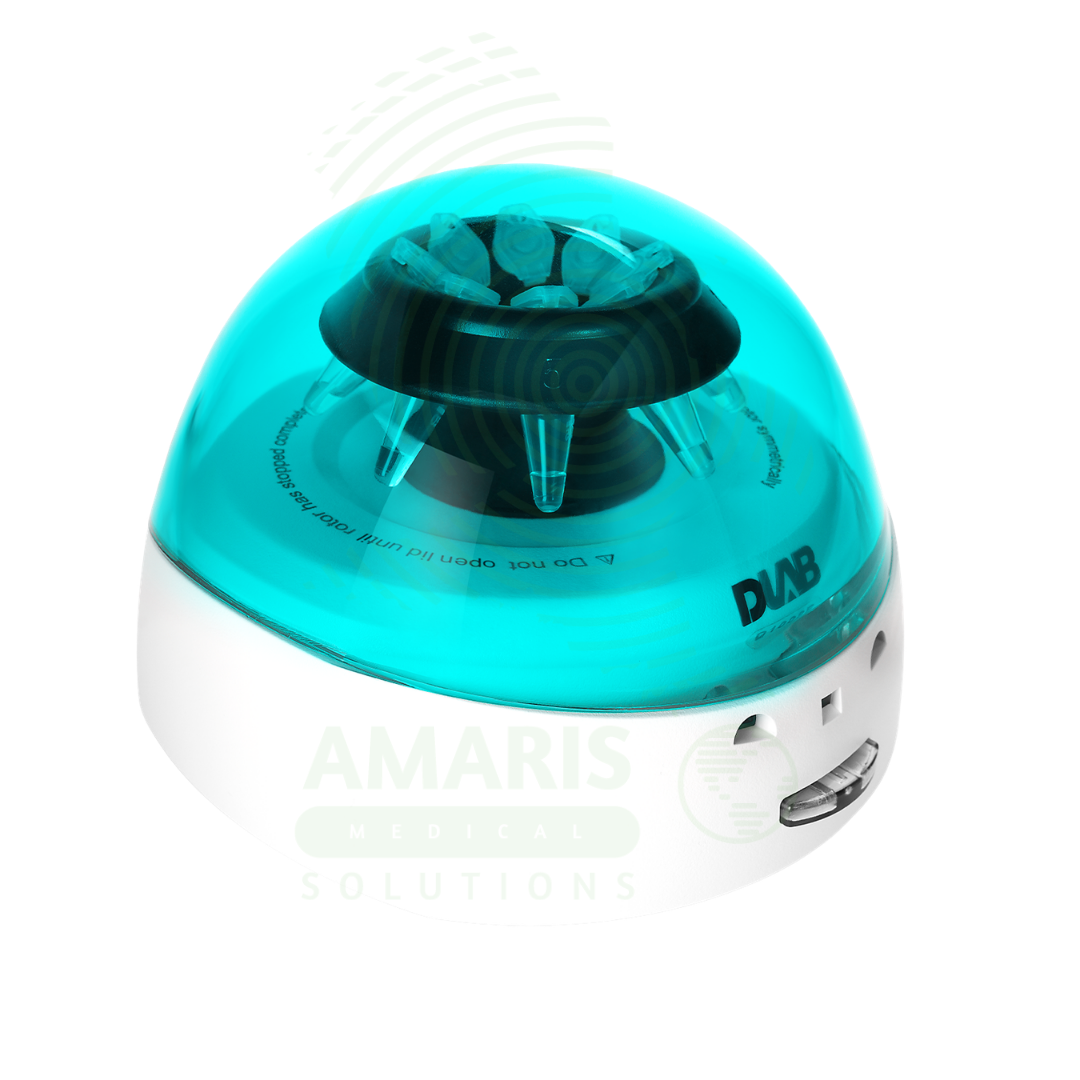

Mini Centrifuge (D1008E)

WhatsApp Order

The D1008E Mini Centrifuge (also known as the EZee Mini-Centrifuge) is a compact benchtop centrifuge designed for rapid sample processing in clinical diagnostic, molecular biology, and research laboratories . Operating at a fixed speed of up to 5,000 rpm (1,360–2,000 × g) with a quiet DC motor, this mini centrifuge supports dual rotor capacity: a 8-position rotor for 0.2/0.5/1.5/2.0 mL microcentrifuge tubes and a PCR rotor for 0.2mL PCR tubes and 8-strip tubes, both with tool-free exchange and adapter compatibility .

For the clinical laboratory scientist and medical technologist, the D1008E facilitates rapid sample preparation for urinalysis, serological testing, and basic chemistry assays . It supports DNA/RNA extraction and purification for molecular diagnostics, PCR sample preparation (including 0.2 mL PCR tubes and 8-strip tubes), protein precipitation for biochemical assays, and microfiltration for sample cleanup workflows .

The centrifuge features an intuitive “close-to-start” operation—simply close the lid to begin spinning and open it to stop, eliminating the need for any buttons . The unit provides continuous run operation, accelerates and brakes in seconds, and operates at low noise levels (≤45 dB) for a quiet laboratory environment . The double door lock mechanism and automatic stop upon lid opening ensure user safety during operation .

Safety features include double door lock design, over-speed protection, and advanced wide voltage technology that maintains stable speed regardless of voltage fluctuations . The D1008E has passed rigorous EN61010-2-20 explosion-proof safety testing and holds CE, cTUVus, and FCC safety certifications .

With an ultra-compact footprint (150 × 150 × 117 mm) and lightweight (0.5 kg) design available in multiple colors (blue, green, pink, yellow), the D1008E provides versatile, consistent performance for routine laboratory workflows supporting patient diagnosis and research applications

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Centrifuges and Separators Tags: Benchtop Microcentrifuge, Clinical Centrifuge, D1008E Centrifuge, D1008E Mini Centrifuge, DLAB Centrifuge, EZee Mini-Centrifuge, Laboratory Centrifuge, Low-Speed Mini Centrifuge, Microfiltration Centrifuge, Molecular Diagnostics Equipment, PCR Preparation, Sample Spin-Down, SCILOGEX Centrifuge

Description

Mini Centrifuge (D1008E)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Rapid Sample Sedimentation for Basic Clinical Assays

Primary Use: Provides a compact fixed-speed mini centrifuge that spins at up to 5,000 rpm (1,360–2,000 × g) to accelerate the sedimentation of particles or droplets from the walls and caps of microcentrifuge tubes for basic laboratory analysis .
How it helps: For the medical technologist and laboratory assistant, the D1008E enables rapid mixing and spin-down of microcentrifuge tubes, preparing samples for tests like urinalysis or rapid plasma reagin (RPR) diagnostics. For the patient, the simplified and faster sample preparation helps reduce the turnaround time for routine test results.

2. PCR and Molecular Sample Preparation

Primary Use: Accommodates 0.2mL PCR tubes, 0.2mL PCR 8-strip tubes, and 1.5/2.0mL microcentrifuge tubes, enabling rapid spin-down of samples before polymerase chain reaction amplification for infectious disease testing .
How it helps: For the molecular biologist and clinical laboratory scientist, the D1008E’s “close-to-start” functionality ensures quick consolidation of condensation and removal of air bubbles from reaction mixes—improving PCR efficiency and reducing experimental variability. For the patient undergoing molecular testing, reliable sample preparation contributes to accurate diagnostic results.

3. Microfiltration and Quick Spin-Downs

Primary Use: Generates sufficient centrifugal force (up to 2,000 × g) to push liquid through filtration devices for sample clarification and particle separation .
How it helps: For the clinical microbiologist and research assistant, the D1008E enables efficient processing of small-volume filtration steps for protein analysis, buffer exchange, and sample cleanup—improving workflow efficiency. For the patient, efficient sample processing aids in rapid diagnostic workflows.

4. General Clinical Sample Preparation

Primary Use: Facilitates rapid spin-down of urine, cerebrospinal fluid, and other body fluid samples to remove cellular debris and particulates before microscopic examination or chemical analysis .
How it helps: For the clinical laboratory scientist, the centrifuge’s simple operation and compact design ensure consistent sample quality for diagnostic testing—improving workflow efficiency. For the patient, proper sample preparation leads to more accurate test results.

SECONDARY & SUPPORTIVE USES

1. Nucleic Acid Extraction and Purification: Used in DNA and RNA extraction protocols for spin column-based purification in molecular diagnostics workflows .

2. Protein Precipitation and Biochemical Assays: Used for quick spin-downs during antibody and protein preparation workflows .

3. Plasmid Mini-Prep Preparation: Supports quick spin-downs during mini-prep plasmid isolation procedures for cloning and sequencing experiments .

4. Blood Typing and Serology: Used for sample preparation in blood grouping and cross-matching procedures in blood banks .

5. Research and Academic Laboratories: Used in university and research laboratory settings for routine centrifugation needs in molecular biology and biochemistry workflows .

6. Veterinary Diagnostic Laboratory: Supports basic sample processing for animal health testing and veterinary diagnostics .

7. Pharmaceutical Quality Control: Used in pharmaceutical QC laboratories for simple sample preparation steps .

8. Educational Laboratory Training: Used in teaching laboratories to demonstrate basic centrifugation principles to students.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A compact benchtop fixed-speed mini centrifuge with a DC motor, designed for rapid sample processing in clinical diagnostic, molecular biology, and research laboratories .
Designation: D1008E Mini Centrifuge, D1008E Centrifuge, Low-Speed Mini Centrifuge, Benchtop Microcentrifuge, Clinical Centrifuge, EZee Mini-Centrifuge, DLAB D1008E .
Key Components:
- A8-2 Rotor: 8-position fixed-angle rotor for 1.5/2.0 mL tubes
- A04-PCR8 Rotor: Dedicated rotor for 0.2mL PCR 8-strip tubes and 16 x 0.2mL PCR tubes
- Adapters: 0.2mL and 0.5mL tube adapters for multi-format compatibility
Motor: DC motor (maintenance-free, quiet operation)
Control System: Simple on/off with "close-to-start" lid switch mechanism

2. TECHNICAL & PERFORMANCE PROPERTIES

Maximum Speed: 5,000 rpm (fixed speed, with some sources indicating up to 5,200 rpm)
Maximum RCF (Relative Centrifugal Force): 1,360 – 2,000 × g (varies by source)
Rotor Capacity: 8 × 1.5/2.0 mL tubes (with 0.2mL and 0.5mL adapters); 16 × 0.2mL PCR tubes; 2 × 0.2mL PCR 8-strip tubes
Run Time: Continuous operation only
Acceleration/Deceleration: Starts and stops in seconds via lid mechanism
Motor Type: DC motor
Noise Level: ≤ 54 dB (typically ≤45 dB)
Power Requirements: AC 100-240V, 50/60Hz, 20-100W (wide voltage tolerance)
Dimensions (L × W × H): 150-160 × 150-170 × 117-122 mm
Weight: 0.5 kg
Safety Certifications: CE, cTUVus, FCC certified; passes EN61010-2-20 safety standards

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Durable plastic housing with small benchtop footprint
Body Material: High-impact plastic with powder-coated finish
Rotor Material: High-strength plastic rotors with chemical resistance
Control: Simple lid-actuated start/stop mechanism; no digital interface
Operation Modes: Continuous run mode; "close-to-start" (lid closes = start; lid opens = stop)
Safety Features: Double door lock mechanism; automatic stop upon lid opening; over-speed protection; wide voltage tolerance for stable speed
Audio Indicators: None (simple visual operation)
Emergency Release: Manual lid release mechanism

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: General laboratory equipment meeting international safety standards
Safety Certifications: CE certified; cTUVus certified; FCC certified
Special Safety Certification: Passed rigorous EN61010-2-20 explosion-proof testing for centrifuge safety
Construction Safety: Double lid lock system for enhanced operational safety
Electrical Safety: Wide voltage tolerance (100-240V) with advanced voltage stabilization technology

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store on clean, dry benchtop; no special clearance requirements due to low heat output
Cleaning: Wipe exterior with soft, damp cloth; use mild detergent if needed
Rotor Maintenance: Remove and clean rotors with mild detergent; dry thoroughly before reinstallation. Rotors are autoclavable at 121°C
Inspection: Inspect rotors for cracks or damage before each use; replace if compromised
Power Cord: Inspect power cord for damage before each use
Calibration: Factory calibrated; no user calibration required

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Sample spin-down for PCR preparation, nucleic acid extraction, microfiltration, and quick sedimentation in clinical diagnostic and research laboratories
Clinical Role: Essential sample preparation equipment in clinical diagnostic laboratories, hospital laboratories, molecular diagnostics labs, research laboratories, and physician office laboratories

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Rotor Balancing: Ensure rotor is balanced with tubes of equal weight; imbalance may cause excessive vibration
Lid Security: Ensure lid is securely closed for operation; automatic stop function prevents operation with open lid
Rotor Inspection: Inspect rotors for cracks or damage before each use; do not use damaged rotors
Tube Compatibility: Use only tubes rated for centrifugation at applicable speeds
Rotor Loading: Load tubes symmetrically; never run rotor with unbalanced loads
Cleaning: Clean spills immediately; disinfect if biological materials are involved
Placement: Place on stable, level surface; ensure adequate ventilation
Training: Only trained laboratory personnel should operate the centrifuge

2. FIRST AID MEASURES

Tube Breakage: If tube breaks during operation, stop centrifuge immediately, allow rotor to stop fully (open lid to stop), carefully remove fragments using forceps, disinfect rotor and chamber
Sample Splash: If biological sample splashes, disinfect area immediately with appropriate disinfectant
Imbalance Vibration: If imbalance occurs, rebalance rotor equally, restart centrifuge
Power Failure: If power fails during operation, open lid manually to access samples

3. FIRE FIGHTING MEASURES

Flammability: Plastic components are combustible; electrical components present fire risk
Extinguishing Media: Use carbon dioxide or dry chemical extinguisher for electrical fires
Fire Response: Unplug centrifuge immediately; do not use water on electrical fire
