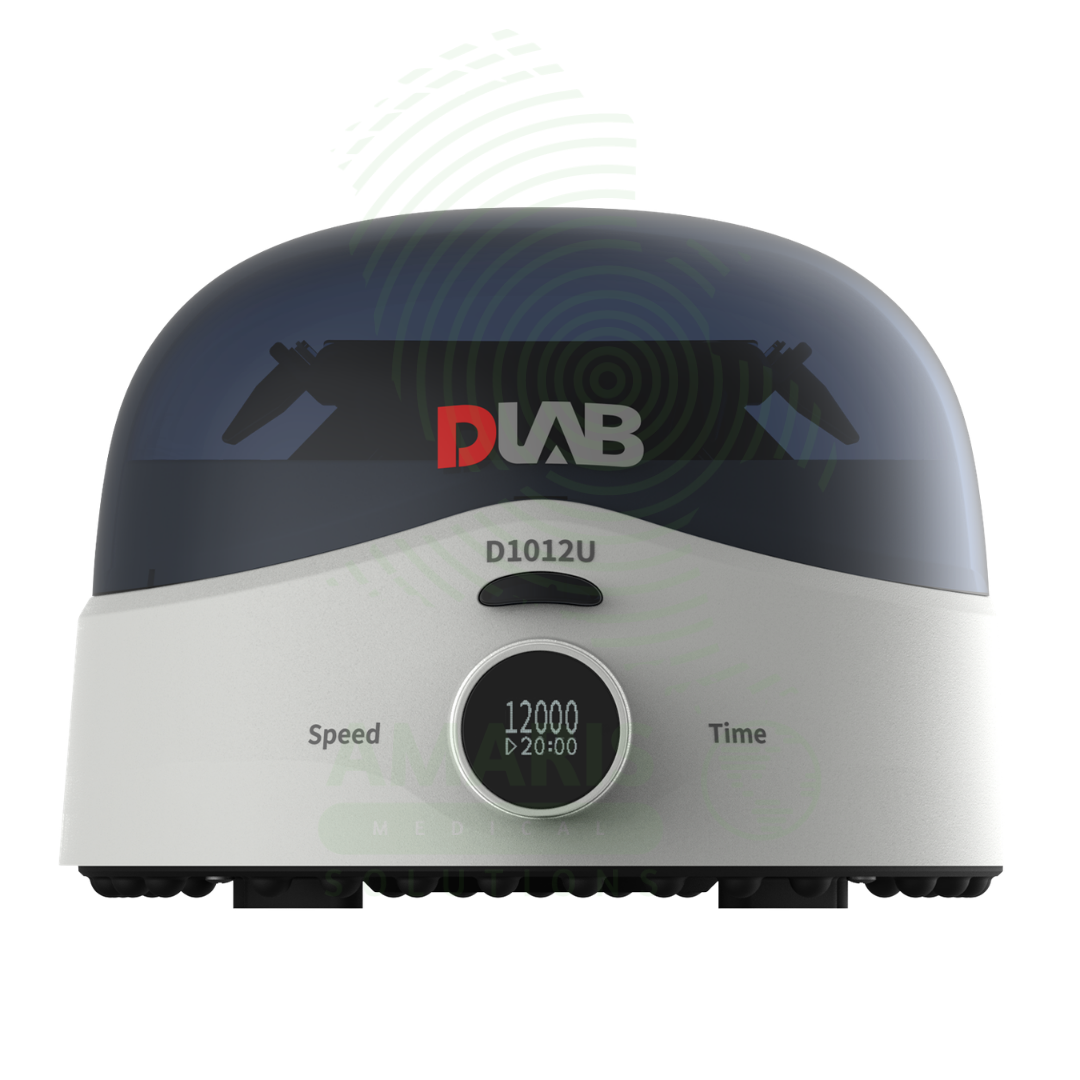

High Speed Palm Micro Centrifuge(D1012U)

WhatsApp Order

The High Speed Palm Micro Centrifuge(D1012U) is a compact, high-speed centrifuge designed for rapid sample processing in clinical and research laboratories. Operating at speeds up to 12,000 rpm (up to 6,708 × g) with a quiet DC motor, this palm-sized centrifuge supports multiple rotor configurations—including 12 x 0.5/1.5/2.0 mL microcentrifuge tubes, 44 x 0.2 mL PCR tubes, and 4 x 0.2 mL PCR 8-strips . The OLED display allows precise monitoring and adjustment of speed (1,000-12,000 rpm) and run time (10 seconds to 20 minutes), while the clamp-locking rotor design ensures safe, secure operation . For the clinical laboratory scientist and medical technologist, the D1012U facilitates rapid separation of blood components for diagnostic testing, PCR sample preparation for molecular diagnostics, microfiltration of body fluids for urinalysis and cytology, and cell pelleting for cytological examination . Its compact footprint (210 x 180 x 130 mm) and lightweight design (1.5 kg) make it ideal for point-of-care testing, physician office laboratories, and space-constrained benchtops . Wide voltage technology (100-240V) ensures consistent performance across different laboratory power conditions . This centrifuge provides reliable, consistent performance for routine laboratory workflows supporting patient diagnosis and treatment monitoring.

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Centrifuges and Separators Tags: Benchtop Microcentrifuge, Blood Separation, Clinical Laboratory Equipment, D1012U High Speed Palm Micro Centrifuge, High Speed Micro Centrifuge, Laboratory Centrifuge, Palm Centrifuge, PCR Centrifuge, PCR Preparation

Description

High Speed Palm Micro Centrifuge(D1012U)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Rapid Separation of Blood Components for Diagnostic Testing

Primary Use: Provides a compact, high-speed microcentrifuge that spins up to 12,000 rpm (6,708 × g) to separate whole blood into plasma, serum, and cellular components for diagnostic laboratory analysis .
How it helps: For the laboratory technician and medical technologist, the high-speed palm centrifuge enables rapid sample processing at the point of collection or in small clinical laboratories—reducing turnaround time for critical test results such as blood chemistry, coagulation studies, and infectious disease screening. For the patient, faster sample processing means receiving diagnostic results more quickly, enabling earlier diagnosis and treatment initiation.

2. PCR Sample Preparation and Molecular Diagnostics

Primary Use: Accommodates 0.2 mL PCR tubes, 44 × 0.2 mL PCR single tubes, and 4 × 0.2 mL PCR 8-strip tubes, enabling rapid spin-down of samples before polymerase chain reaction amplification for infectious disease testing .
How it helps: For the molecular biologist and clinical laboratory scientist, the D1012U centrifuge includes dedicated rotor configurations for PCR tubes and strip tubes—ensuring that samples are properly mixed and free from air bubbles before thermal cycling. For the patient undergoing molecular testing for COVID-19, influenza, hepatitis, or other infectious diseases, reliable PCR sample preparation contributes to accurate diagnostic results that guide treatment decisions.

3. Microfiltration and Sample Clarification for Body Fluids

Primary Use: Facilitates rapid spin-down and microfiltration of urine, cerebrospinal fluid, and other body fluid samples to remove cellular debris and particulates before microscopic examination or chemical analysis .
How it helps: For the clinical laboratory scientist, the centrifuge’s continuous operation mode and tool-free rotor exchange streamline the preparation of body fluid samples—improving workflow efficiency and ensuring consistent sample quality for diagnostic testing. For the patient, proper sample clarification leads to more accurate test results, reducing the need for repeat specimen collection and allowing for confident clinical decision-making.

4. Cell Separation and Pellet Formation

Primary Use: Generates sufficient centrifugal force (up to 6,708 × g) to pellet cells from liquid samples, supporting cytological examination and cell-based diagnostic testing .
How it helps: For the cytotechnologist and pathologist, the compact centrifuge allows for rapid cell concentration from body fluids such as pleural fluid, ascitic fluid, and cerebrospinal fluid—enhancing the diagnostic yield of cytological examination. For the patient, improved cell recovery increases the sensitivity of cancer detection and infection diagnosis from fluid specimens.

SECONDARY & SUPPORTIVE USES

1. Microcentrifuge Tube Processing: Supports 0.5 mL, 1.5 mL, and 2.0 mL microcentrifuge tubes for standard laboratory applications .

2. Nucleic Acid Extraction and Purification: Used in DNA and RNA extraction protocols for spin column-based purification and sample preparation .

3. Plasmid Mini-Prep Preparation: Supports quick spin-downs during mini-prep plasmid isolation procedures.

4. Protein Precipitation and Biochemical Assays: Used for protein precipitation steps in biochemical assays and sample preparation.

5. Phase Separation for Extraction Procedures: Facilitates separation of organic and aqueous phases in liquid-liquid extraction procedures.

6. Lipid and Lipoprotein Analysis: Supports sample preparation for lipid panel testing in clinical chemistry laboratories.

7. Coagulation Testing Preparation: Used for platelet-poor plasma preparation for coagulation studies.

8. Therapeutic Drug Monitoring: Supports sample preparation for therapeutic drug monitoring and toxicology screening .

9. Research and Academic Laboratories: Used in university and research laboratory settings for routine centrifugation needs.

10. Veterinary Diagnostic Laboratory: Supports sample processing for animal health testing and veterinary diagnostics.

11. Food Safety and Environmental Testing: Used in food microbiology and environmental testing laboratories for sample preparation.

12. Molecular Biology Workflows: Ideal for sample preparation steps in PCR, qPCR, cloning, and sequencing preparation experiments .

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A compact, high-speed palm microcentrifuge designed for rapid sample processing, PCR preparation, and microfiltration in clinical and research laboratories .
Designation: D1012U High Speed Palm Micro Centrifuge, High Speed Micro Centrifuge, Palm Centrifuge, Benchtop Microcentrifuge, PCR Centrifuge, Laboratory Centrifuge .
Key Components:

o Motor: Brushless DC motor for quiet, smooth operation .

o Rotor Capacity: 0.5/1.5/2.0 mL × 12 tubes; 0.2 mL × 44 PCR tubes; 0.2 mL × 4 PCR 8-strips .

o Display: OLED display for speed and time settings .

o Control: Screen buttons for motor start/stop with soft brake and instant stop modes .

o Housing: Durable, compact plastic enclosure.

2. TECHNICAL & PERFORMANCE PROPERTIES

Maximum Speed: 12,000 rpm .
Maximum RCF (Relative Centrifugal Force): 6,708 × g (1.5/2 mL tubes); 6,596–7,490 × g (PCR 8-strips) .
Speed Setting Range: 1,000 – 12,000 rpm, step: 1,000 rpm .
Time Setting Range: 10 seconds – 20 minutes, step: 10 seconds .
Motor Type: DC motor .
Noise Level: ≤ 58 dB .
Power Requirements: AC 100–240 V, 50/60 Hz, 30 W .
Dimensions (L × W × H): 210 × 180 × 130 mm .
Weight: 1.5 kg .
Voltage Technology: Wide voltage technology ensures speed is not affected by voltage fluctuations .

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: High-strength plastic housing with durable rotor assembly.
Control: OLED display with screen buttons for speed and time adjustment .
Rotor Design: Clamp-locking rotor for safety, durability, and ease of use .
Braking Modes: Supports soft braking and instant stop modes .
Operation Modes: Continuous operation mode; supports setting memory function.
Portability: Compact footprint for benchtop or palm use; lightweight at only 1.5 kg.
Maintenance: DC motor requires minimal maintenance.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Class II medical device (instrument classification) .
Registration: Meets applicable regulatory registration requirements.
Rotor Safety: Durable clamp-locking rotor design ensures secure operation .
Electrical Safety: Wide voltage compatibility (100-240V) with voltage fluctuation resistance .
Lid Safety: Secure lid interlock system prevents operation with open lid.
Noise Control: Low noise operation (≤58 dB) for comfortable laboratory environment .

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store on clean, dry benchtop; protect from dust and moisture.
Cleaning: Wipe exterior with soft, damp cloth; use mild detergent if needed.
Rotor Maintenance: Remove and clean rotors with mild detergent; dry thoroughly before reinstallation.
Inspection: Inspect rotors for cracks or damage before each use; replace if compromised.
Power Cord: Inspect power cord for damage before each use.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Rapid separation of blood components, PCR sample preparation, microfiltration of body fluids, and cell pelleting for diagnostic testing in clinical laboratories, physician offices, and research settings .

Clinical Role: Essential sample preparation equipment in clinical diagnostic laboratories, hospital laboratories, physician office laboratories, molecular diagnostics labs, and research laboratories.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Imbalance Detection: Ensure rotor is balanced with samples of equal weight; imbalance may cause excessive vibration.
Lid Security: Ensure lid is securely closed before operation; centrifuge will not operate with open lid.
Rotor Inspection: Inspect rotors for cracks or damage before each use; do not use damaged rotors.
Tube Compatibility: Use only tubes rated for centrifugation at high speeds.
Liquid Levels: Do not overfill tubes; leave adequate headspace to prevent leakage.
Cleaning: Clean spills immediately; disinfect if biological materials are involved.
Placement: Place on stable, level surface; ensure adequate ventilation.
Power Supply: Use only specified power supply (100-240VAC).
Training: Only trained laboratory personnel should operate the centrifuge.

2. FIRST AID MEASURES

Tube Breakage: If tube breaks during operation, stop centrifuge immediately, allow rotor to stop fully, carefully remove fragments using forceps, disinfect rotor and chamber.
Sample Splash: If biological sample splashes, disinfect area immediately with appropriate disinfectant.
Rotor Imbalance: If excessive vibration occurs, stop centrifuge immediately, check rotor balance, rebalance samples.

3. FIRE FIGHTING MEASURES

Flammability: Plastic components are combustible; electrical components present fire risk.
Extinguishing Media: Use carbon dioxide or dry chemical extinguisher for electrical fires.
Fire Response: Unplug centrifuge immediately; do not use water on electrical fire.
