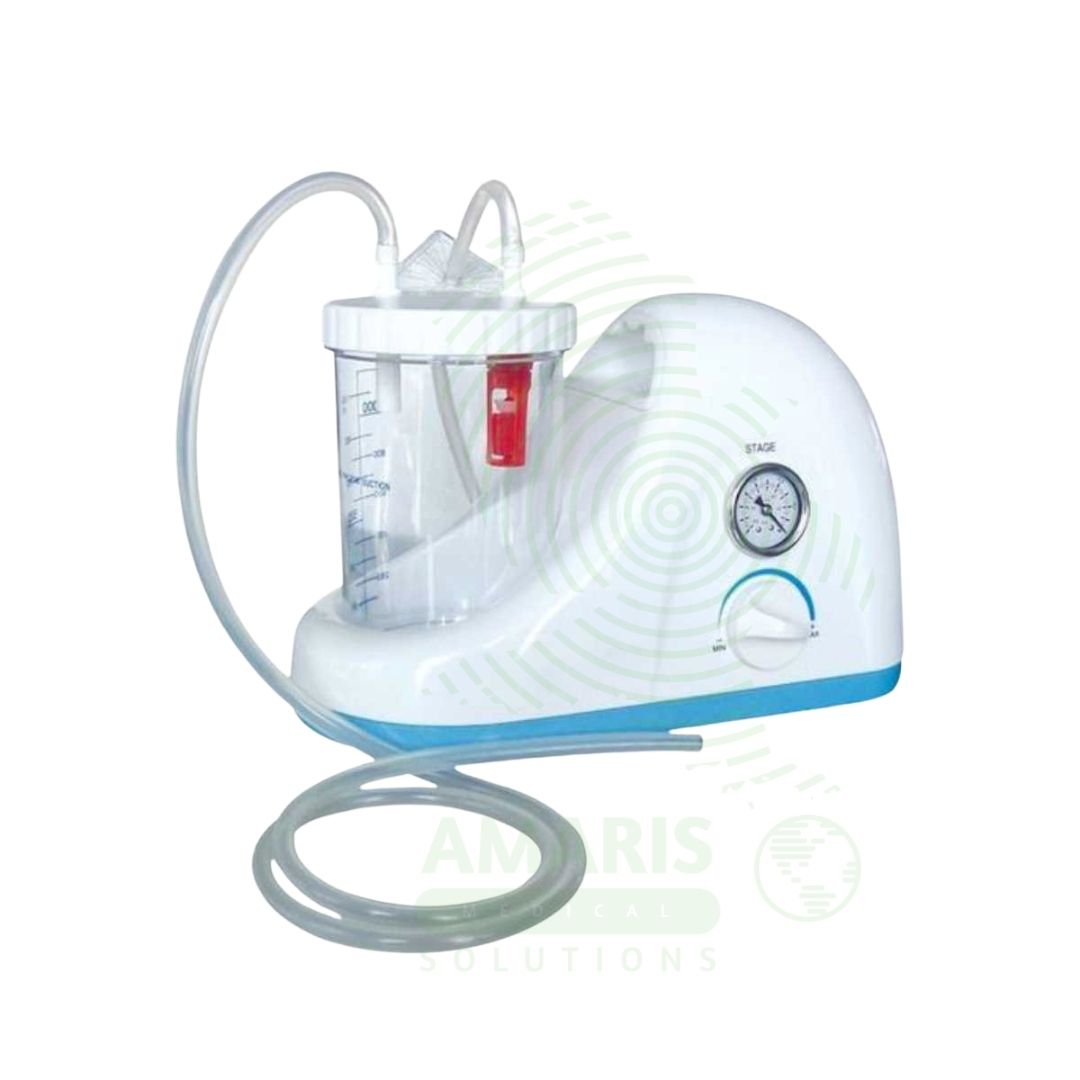

One Bottle Suction Machine

WhatsApp Order
A One Bottle Suction Machine is a portable or mobile suction unit used for clearing airway secretions in patients who cannot clear their own airway. It consists of a vacuum pump, collection bottle with overflow protection, and suction tubing with catheters or Yankauer tips. Used in hospitals, ICUs, post-anesthesia care units, and home healthcare settings, it provides controlled negative pressure for oral, pharyngeal, endotracheal, and tracheostomy suctioning. Proper pressure settings, patient monitoring, and bottle management are essential for safe and effective use.
Description

One Bottle Suction Machine

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Airway Clearance and Secretion Management
  • Primary Use: Provides controlled suction to remove mucus, saliva, blood, vomitus, and other secretions from a patient’s airway to maintain patency, prevent aspiration, and support ventilation in patients with impaired cough reflex, altered consciousness, or artificial airways.
  • How it helps: For the respiratory therapist, nurse, and critical care provider, the suction machine is their first-line defense against airway obstruction—clearing the secretions that patients cannot clear themselves, preventing the pooling that leads to aspiration pneumonia, and maintaining a clear path for oxygen delivery. For the patient who cannot cough effectively due to sedation, neurological injury, or muscle weakness, the suction machine removes secretions that would otherwise block their airway, protecting them from respiratory compromise and infection.
2. Endotracheal and Tracheostomy Tube Suctioning
  • Primary Use: Essential for suctioning artificial airways in intubated and tracheostomized patients, maintaining tube patency, preventing mucus plugging, and reducing ventilator-associated pneumonia risk. The machine provides consistent, regulated negative pressure for safe and effective airway clearance.
  • How it helps: For the ICU nurse and respiratory therapist managing a patient on mechanical ventilation, the suction machine is essential for keeping the artificial airway clear—removing the secretions that would otherwise narrow the tube, increase work of breathing, and provide a medium for bacterial colonization. For the ventilated patient, regular suctioning means their airway remains patent, ventilation remains effective, and the risk of pneumonia is minimized.
3. Post-Operative Airway Management
  • Primary Use: Used in post-anesthesia care units and surgical wards to manage secretions in patients emerging from anesthesia who have not yet fully regained their cough reflex or swallowing function. The machine provides immediate airway clearance capability during the vulnerable recovery period.
  • How it helps: For the PACU nurse monitoring patients as they emerge from anesthesia, the suction machine stands ready at the bedside—available to clear secretions or vomit immediately, preventing aspiration and maintaining airway patency during the vulnerable period when protective reflexes are still suppressed. For the patient waking from surgery, having suction available means that if they cannot clear their own airway, help is immediate and effective.
4. Oral and Pharyngeal Suctioning in Dysphagic Patients
  • Primary Use: Clears pooled oral secretions in patients with impaired swallowing due to stroke, neurologic disease, head and neck surgery, or altered mental status, reducing aspiration risk and maintaining comfort.
  • How it helps: For the speech-language pathologist, neurologist, and nurse caring for patients with swallowing difficulties, the suction machine provides a means to manage oral secretions when the patient cannot swallow them effectively—preventing the silent aspiration that leads to pneumonia and maintaining comfort and dignity. For the patient with dysphagia, gentle suctioning means they are not constantly choking on their own saliva.
5. Emergency Airway Clearance
  • Primary Use: Critical for rapid airway clearance during resuscitation, trauma management, and respiratory emergencies. The machine provides immediate suction capability for clearing the airway of blood, vomit, or secretions that obstruct breathing.
  • How it helps: For the code team and emergency provider managing a patient in respiratory arrest, the suction machine is non-negotiable equipment—clearing the airway of blood, secretions, or foreign material to enable effective ventilation and oxygenation. For the patient in extremis, immediate suction can be the difference between effective resuscitation and failure to oxygenate.

SECONDARY & SUPPORTIVE USES

1. Wound Drainage and Debridement Support: Provides controlled suction for removing blood, irrigation fluid, and debris from surgical wounds and chronic ulcers during dressing changes and debridement procedures.
2. Gastric Decompression: May be used for intermittent suction to remove gastric contents via a nasogastric or orogastric tube for patients with intestinal obstruction or post-operative ileus.
3. Procedure Support: Used during minor surgical procedures, endoscopy, and dental procedures to clear blood, irrigation fluid, and debris from the operative field.
4. Bronchoscopy Adjunct: Provides suction capability during bronchoscopy procedures to clear secretions and lavage fluid.
5. Home Healthcare: Portable one-bottle suction units enable patients with chronic respiratory conditions, tracheostomies, or neuromuscular weakness to manage airway secretions at home, reducing hospital admissions.
6. Pediatric and Neonatal Use: Smaller, low-flow suction units are used in pediatric and neonatal settings for gentle airway clearance in infants and children.
KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

  • Device Type: A portable or mobile suction unit consisting of a vacuum pump, collection bottle, and suction tubing for removing fluids and secretions from the airway or surgical site.
  • Designation: Suction Machine, Aspirator, Suction Unit, Portable Suction, Medical Vacuum Unit, One Bottle Suction.
  • Key Components:
    • Vacuum Pump: Electric or foot-operated pump that generates negative pressure.
    • Collection Bottle: Translucent or clear plastic bottle with volume graduations (typically 1000-2000 mL capacity).
    • Overflow Protection: Automatic shut-off valve that stops suction when the bottle reaches capacity to prevent fluid from entering the pump.
    • Suction Tubing: Flexible, kink-resistant tubing connecting the collection bottle to the patient suction catheter or Yankauer tip.
    • Pressure Regulator: Adjustable control for setting suction pressure.
    • Vacuum Gauge: Display showing current negative pressure in mmHg or cm Hâ‚‚O.
    • Bottle Lid/Seal: Airtight seal with inlet and outlet ports for tubing connections.

2. TECHNICAL & PERFORMANCE PROPERTIES

  • Vacuum Range: Adjustable typically from 0 to 200 mmHg for oral/pharyngeal suction; up to 300-500 mmHg for endotracheal suction.
  • Flow Rate: Air flow capacity sufficient for rapid secretion removal; varies by pump type.
  • Bottle Capacity: Typically 1000-2000 mL; graduations for volume measurement.
  • Overflow Protection: Automatic float valve stops suction when bottle reaches capacity, preventing fluid entry into pump.
  • Noise Level: Variable by pump design; portable units typically quieter than larger stationary units.
  • Power Source: Electric plug-in; portable units may include battery backup or AC/DC capability.

3. PHYSICAL & OPERATIONAL PROPERTIES

  • Configuration: Mobile cart-mounted or portable tabletop design.
  • Portability: Locking casters for mobility; lightweight design for transport.
  • Controls: Simple on/off switch; adjustable pressure dial; illuminated switches for visibility.
  • Bottle Access: Easy-open lid for bottle removal and emptying; autoclavable bottle options.
  • Tubing Connections: Standardized connectors for suction tubing and catheters.

4. SAFETY & COMPLIANCE ATTRIBUTES

  • Regulatory Status: Class I and Class II medical devices regulated by FDA.
  • Overflow Protection: Critical safety feature to prevent pump damage and contamination.
  • Electrical Safety: Compliant with IEC 60601-1; ground fault protection recommended.
  • EMC Compliance: Electromagnetic compatibility for use near other medical equipment.

5. STORAGE & HANDLING ATTRIBUTES

  • Storage: Store in a clean, dry location; protect from dust and damage.
  • Cleaning: External surfaces cleaned with hospital-grade disinfectants.
  • Bottle Management: Collection bottle emptied after each use or when full; bottles are single-use disposable or autoclavable reusable.
  • Tubing Disposal: Suction tubing and catheters are single-use; disposed of as biohazard waste.
  • Filter Maintenance: Replace bacterial filters per manufacturer schedule.

6. LABORATORY & CLINICAL APPLICATIONS

  • Primary Application: Airway secretion clearance in hospitalized patients, post-operative care, emergency settings, and home care.
  • Clinical Role: Essential equipment in hospital wards, ICUs, emergency departments, post-anesthesia care units, and home healthcare.
SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

  • Pressure Setting: Use appropriate suction pressure for patient age and application:
    • Oral/pharyngeal suction: 100-150 mmHg
    • Endotracheal suction: 80-120 mmHg
    • Pediatric suction: 60-100 mmHg
    • Neonatal suction: 40-80 mmHg
  • Pre-Oxygenation: Pre-oxygenate patients before and after endotracheal suctioning to prevent desaturation.
  • Suction Duration: Limit suction duration to 10-15 seconds per pass to prevent hypoxia.
  • Catheter Size: Use appropriate catheter size; too large increases mucosal trauma; too small ineffective.
  • Bottle Monitoring: Monitor collection bottle level; empty before overflow to prevent pump contamination.
  • Tubing Integrity: Inspect tubing for kinks, cracks, or disconnections; ensure secure connections.
  • Patient Monitoring: Monitor heart rate, oxygen saturation, and respiratory status during suctioning.

2. FIRST AID MEASURES

  • Overflow to Pump: If fluid enters the pump due to overflow protection failure, disconnect the unit immediately; do not operate until serviced.
  • Suction Failure: If suction fails, check bottle level, tubing connections, and power source; have backup suction available.
  • Mucosal Trauma: If bleeding occurs during suctioning, apply gentle pressure; assess airway; notify provider.

3. FIRE FIGHTING MEASURES

  • Flammability: Plastic components are combustible; electrical components pose fire risk.
  • Extinguishing Media: For electrical fire, use COâ‚‚ or dry chemical extinguisher; unplug unit if safe to do so.
