Dlab

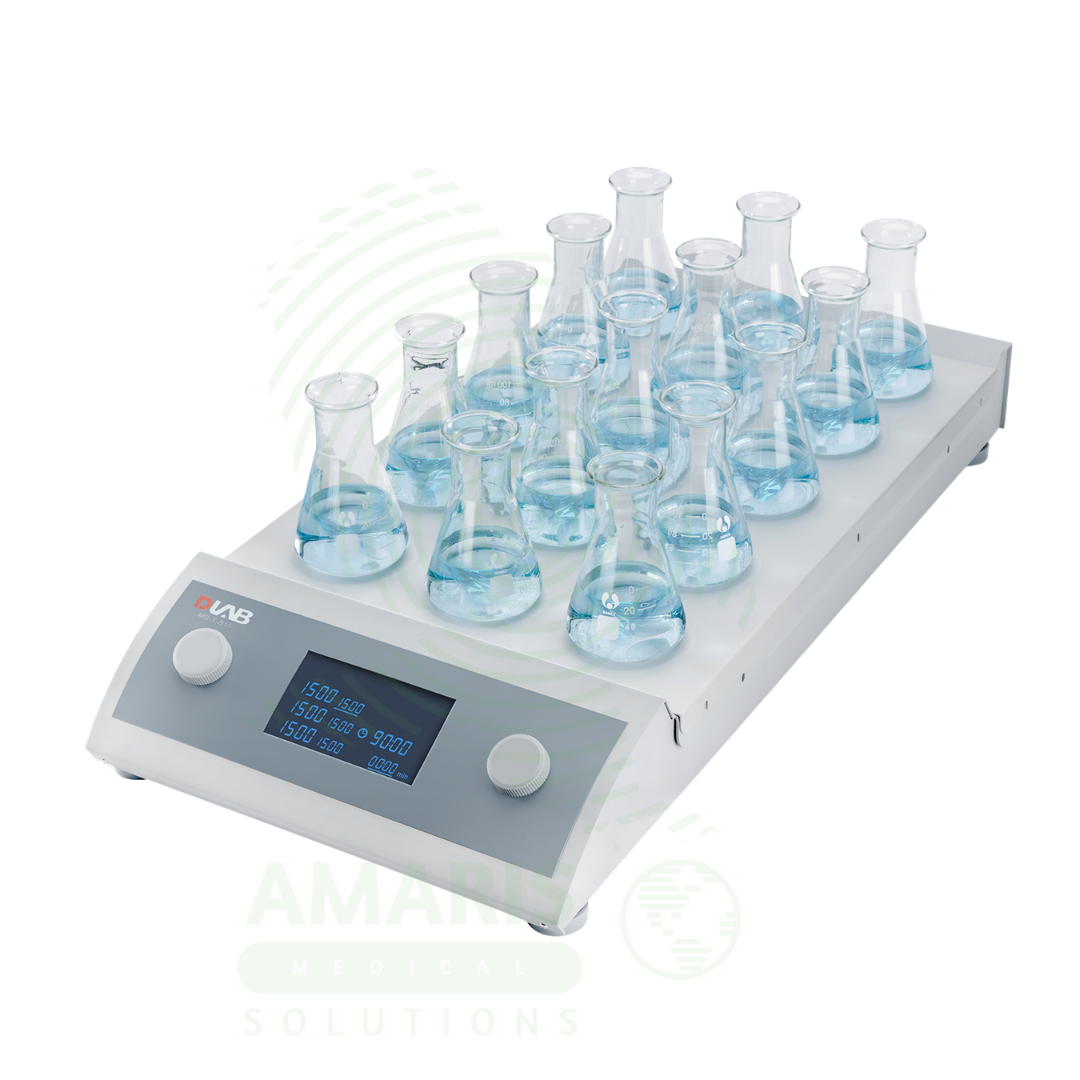

Position Magnetic Stirrer (MS‑T‑S15 15‑)

WhatsApp Order

The Position Magnetic Stirrer is a high‑throughput, non‑heating benchtop instrument engineered for the independent, reproducible stirring of up to 15 samples simultaneously in clinical diagnostics, pharmaceutical quality control, food and feed analysis, environmental testing, textile and polymer research, petroleum products analysis, and academic research laboratories. Featuring a large 460 × 304 mm aluminum work plate with laser‑engraved anti‑slip surface, this stirrer provides a digital speed range of 100 to 1500 rpm (±10 rpm accuracy) and a maximum stirring capacity of 0.4 liters of water per position (6 liters total).

Every Position Magnetic Stirrer is equipped with 15 stirring positions divided into three independent control channels, each with its own LCD display showing real‑time speed and timer status. The three independent channel groups can be set to different speeds (from 100 to 1500 rpm) and different timer durations (1 minute to 99 hours 59 minutes) without cross‑interference, allowing true parallel processing of diverse sample types. The maintenance‑free, spark‑free brushless DC motor provides stable torque, ultra‑quiet operation, and long‑term reliability without routine maintenance. The aluminum laser‑engraving work plate surface is anti‑slip, corrosion‑resistant, and anti‑abrasive, ensuring chemical durability and easy cleaning.

Key user‑focused features for high‑throughput clinical and QC workflows include three independent channel groups for simultaneous processing of up to 15 samples, a built‑in timer with buzzer alert (audible “beep beep beep” at countdown end) for unattended operation, a compact space‑saving design (460 × 304 mm footprint, 615 × 307 × 90 mm overall, 9.2 kg weight) that integrates 15 stirring positions into a single instrument – dramatically reducing bench space compared to 15 separate single‑channel units – and an IP21‑rated housing for basic splash and dust protection. The universal power supply (100–240 V, 50/60 Hz) allows worldwide use without voltage converters. The instrument is TÜV‑certified (CE, cTUVus, FCC) and manufactured under ISO 9001 and ISO 13485 quality management systems.

For the clinical laboratory scientist, pharmaceutical QC technician, food and feed analyst, environmental testing scientist, and research scientist, the Position Magnetic Stirrer delivers the independent, high‑throughput stirring required for parallel clinical sample mixing (up to 15 patient samples simultaneously), buffer and standard preparation, environmental sample homogenisation, Kjeldahl nitrogen determination, Soxhlet extraction, and educational laboratory demonstrations. For the patient, the reliable, reproducible performance of this high‑throughput instrument ensures that diagnostic reagents, quality control materials, and research samples are prepared consistently and efficiently across up to 15 channels simultaneously, directly supporting accurate diagnostic outcomes, efficient laboratory operations, and patient safety

Compare
Add to wishlist
Categories: , Tags: , , , , , , , , , , , , , , , , , , , , , ,
Description

Position Magnetic Stirrer (MS‑T‑S15 15‑)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. High‑Capacity Multi‑Sample Processing for Clinical and Pharmaceutical Research
 Primary Use: Provides a 15‑position, non‑heating LCD digital magnetic stirrer with a large 460 × 304 mm aluminum work plate, used for the simultaneous and reproducible mixing of up to 15 separate clinical samples, reagents, buffers, or biological specimens in clinical diagnostic, pharmaceutical, and research laboratories. The 15 stirring positions are divided into 3 independent channels, each with its own speed and timer settings, a maximum stirring capacity of 0.4 liters of water per position (6 liters total), a digital speed range of 100 to 1500 rpm (or 0–1500 rpm on some variants), and a separate LCD display for each channel showing real‑time speed and timer readings.
How it helps: For the clinical research scientist and high‑throughput laboratory technician, the 15‑position design enables the parallel processing of up to 15 independent samples or experimental conditions simultaneously, dramatically increasing throughput while maintaining reproducibility. The three independent channel groups allow the operator to run different sets of samples at different speeds and running times without cross‑interference. The aluminum laser‑engraved work plate provides anti‑slip, corrosion‑resistant, and anti‑abrasive performance, ensuring long‑term durability even with aggressive reagents. The brushless DC motor is spark‑free and maintenance‑free, making the instrument safe for extended continuous operation. A built‑in buzzer alerts the user when the countdown timer ends, eliminating the need for constant manual monitoring. For the patient, the ability to rapidly and reproducibly process multiple samples under controlled, independent conditions helps ensure accurate and timely diagnostic test results, directly supporting effective clinical decision‑making.
2. Parallel Sample Preparation for Clinical Chemistry, Toxicology, and Microbiology
 Primary Use: Enables the controlled, independent stirring of up to 15 patient specimens (serum, plasma, urine, whole blood) for routine clinical chemistry panels, toxicology screening, and microbiology media preparation. The 0.4‑liter per position capacity supports batch processing of quality control materials, standards, and reagents across all 15 positions simultaneously.
How it helps: For the clinical chemistry technologist and toxicology analyst processing large numbers of patient samples, the 15‑position design supports the simultaneous preparation of up to 15 independent samples or QC materials in a single run, considerably reducing total processing time for routine panels (e.g., lipid profiles, liver function tests) and high‑volume toxicology screening (e.g., drugs of abuse, alcohol panels). The three independent channels allow different sample types or different experimental conditions to be run simultaneously at different speeds – for example, one channel can stir at a low speed for delicate cell suspensions while another channel stirs vigorously for dissolving powdered media. The IP21‑rated housing offers basic protection against solid foreign objects (>12.5 mm) and vertically falling water drops, ensuring reliable service in busy clinical environments. For the patient, consistent, efficient processing ensures that diagnostic test results are accurate, timely, and reproducible across large numbers of specimens.
3.Kjeldahl Nitrogen Determination, Soxhlet Extraction, and Parallel Synthesis Applications
 Primary Use: Serves as an ideal tool for multilateral comparison experiments and parallel parameter optimisation, including Kjeldahl nitrogen determination, Soxhlet extraction, and parallel chemical synthesis, allowing the user to handle up to 15 tests simultaneously with stable performance, good reproducibility, and high accuracy.
How it helps: For the food and feed quality control analyst and environmental testing scientist, the 15‑position design supports simultaneous Kjeldahl digestion of up to 15 food, feed, soil, or water samples for nitrogen/protein quantification, dramatically reducing total analysis time. The three independent channels allow different sample types to be processed under optimised conditions (e.g., different stirring speeds for different matrices). The timer function (1 minute to 99 hours 59 minutes) with buzzer alert enables unattended operation, freeing the analyst to perform other tasks while the samples run. For the patient, accurate, efficient sample preparation for nutritional and environmental testing ensures that food supplies are safe, drinking water is clean, and regulatory standards are met, directly supporting public health.
4.Educational and High‑Throughput Teaching Laboratory Stirring
 Primary Use: Serves as a robust, user‑friendly teaching tool for undergraduate and graduate courses in chemistry, clinical laboratory science, and biochemistry, allowing up to 15 students or groups to run independent mixing experiments on a single compact benchtop instrument, with clear digital displays for monitoring speed and time.
How it helps: For the instructor and teaching assistant, the Position Magnetic Stirrer straightforward three‑channel operation and clear digital displays minimize training time and reduce the chance of operator error in high‑use teaching laboratories. The 15‑position capacity allows up to 15 individual student workstations on a single instrument, maximizing lab bench utilisation and reducing equipment duplication costs. The durable aluminum work plate with laser engraving stands up to daily handling, resists chemical spills from student experiments, and is easy to clean. For the patient, the training of competent future laboratory personnel using reliable, high‑throughput equipment sets a solid foundation for diagnostic accuracy and safe clinical practice.

SECONDARY & SUPPORTIVE USES

1. General solution preparation for pharmaceutical and food analysis: Used for the efficient dissolution of solid samples and the preparation of standard solutions, buffers, and mobile phases in pharmaceutical and food analysis quality control laboratories, ensuring homogeneity for HPLC, UV‑Vis spectrophotometry, and other analytical testing, with a 6‑liter total capacity across 15 positions.
2. Sample preparation for environmental and water testing: Prepares up to 15 liquid samples for heavy metal analysis, organic pollutant screening, and nutrient determination by maintaining solid particles in suspension for accurate sampling; the aluminum work plate is durable and easy to clean.
3. Parallel titration and electrochemical measurements: Provides stable, consistent stirring for up to 15 independent pH calibrations, ion‑selective electrode measurements, or manual titrations simultaneously, ensuring uniform ion concentration around each electrode and improving laboratory throughput for routine electrochemical analysis.
4. Quality control sample preparation in textile, polymer, and petroleum testing: Used in textile, fiber, polymer, rubber, plastics, and petroleum products testing laboratories for the preparation of test solutions, dissolution of polymer samples, and mixing of solvents for viscosity and mechanical property testing, with the ability to run up to 15 different formulations or samples in parallel.
5. Soil, sludge, and water treatment sample homogenization: Prepares up to 15 solid environmental samples – such as soils, sediments, sludges, and treated water – by mixing them with extraction solvents or reagents in parallel, ensuring representative results with high throughput for environmental monitoring and remediation studies.
6. High‑throughput drug dissolution and stability screening: Enables simultaneous stirring of up to 15 dissolution vessels (e.g., small‑volume beakers) for accelerated dissolution testing of solid oral dosage forms (tablets, capsules) during early‑stage formulation screening, dramatically increasing screening throughput compared to single‑position instruments.
7. Research and development for small laboratories: Provides a reliable, high‑capacity stirring solution for research scientists in small academic and industrial laboratories performing small‑scale synthesis, media optimisation, and routine mixing tasks requiring reproducible agitation across multiple samples.
KEY PRODUCT FEATURES

1.BASIC IDENTIFICATION ATTRIBUTES

  • Device Type: A 15‑position, non‑heating LCD digital magnetic stirrer with independent control of three channel groups.
  • Designation: Position Magnetic Stirrer.
  • Key Components:
    • 15 independent stirring positions arranged on a 460 × 304 mm aluminum work plate
    • 3 independent control channels, each controlling 5 stirring positions
    • LCD display for each channel showing real‑time speed and timer settings
    • Maintenance‑free, spark‑free brushless DC motor (electric brushless motor)
    • Programmable timer (1 minute to 99 hours 59 minutes) with buzzer alert
    • Aluminum laser‑engraving work plate surface – anti‑slip, corrosion‑resistant, anti‑abrasive
    • Strong rare‑earth magnets for powerful magnetic coupling
    • IP21‑rated housing (protection against solid objects >12.5 mm and vertically falling water drops)
    • Universal power supply (100–240 V, 50/60 Hz)
    • Non‑slip base for stability

2.TECHNICAL & PERFORMANCE PROPERTIES

  • Work plate dimensions: 460 × 304 mm.
  • Work plate material: Aluminum with laser engraving (anti‑slip, anti‑corrosion, anti‑abrasive, durable).
  • Number of stirring positions: 15 (divided into 3 independent channels, each with 5 positions).
  • Maximum stirring capacity per position (H₂O): 0.4 L (6 L total).
  • Speed range: 100 to 1500 rpm (0–1500 rpm on some variants).
  • Speed control accuracy: ±10 rpm.
  • Speed display: LCD per channel.
  • Timer range: 1 minute to 99 hours 59 minutes.
  • Timer display: LCD per channel.
  • Timer alert: Buzzer (“beep beep beep”) sounds at end of countdown.
  • Maximum stir bar length: 40 mm.
  • Motor type: Brushless DC motor (maintenance‑free, spark‑free).
  • Total power consumption: 40 W or 54 W (depending on variant).
  • Motor output power: 4 W.
  • Protection class: IP21 (protection against solid objects >12.5 mm and vertically falling water drops).
  • Power requirements: 100–240 V, 50/60 Hz (universal input).
  • Dimensions (L × W × H): 615 × 307 × 90 mm.
  • Weight: 9.2 kg.
  • Operating conditions: 5–40 °C, ≤80 % relative humidity.
  • Applications: Ideal for food, feed, textile, soil, sewage, water treatment, pharmaceutical, polymerization, petroleum, resin and plastics testing laboratories.
  • Certifications: TÜV‑certified (CE, cTUVus, FCC); meets DIN/EN 60529 (IP code), IEC/EN 61010‑1 safety requirements for laboratory electrical equipment.

3.PHYSICAL & OPERATIONAL PROPERTIES

  • Construction: Durable, compact benchtop design with a large 460 × 304 mm aluminum work plate. The anodised aluminum construction offers excellent corrosion resistance, durability, and easy cleaning. The laser‑engraved pattern provides anti‑slip properties to prevent vessels from drifting during stirring. IP21‑rated housing provides basic protection against solid foreign objects (>12.5 mm) and vertically falling water drops.
  • Work plate: 460 × 304 mm aluminum plate with laser engraving, providing a durable, anti‑slip, corrosion‑resistant, and anti‑abrasive surface. The white or silver surface provides good contrast for observing solutions during stirring. The overall work plate area accommodates 15 standard beakers or flasks (up to 0.4 L each) arranged in a 3 × 5 grid pattern. The work plate is heat‑resistant up to at least 80 °C (note: this is a non‑heating model; only environmental heat from motor operation may be present).
  • Controls and Interface: The instrument features a simple and intuitive operation panel. Three independent control channels each have their own LCD digital display showing the current speed (rpm) and set timer value (remaining time). Each channel is controlled by its own set of buttons for adjusting speed (200–1500 rpm in increments) and setting the timer (1 minute to 99 hours 59 minutes). A separate start/stop button for each channel allows independent control of the stirring function.
  • Stirring System: The brushless DC motor drives a multi‑position magnetic drive system that simultaneously powers all 15 stirring positions. Strong rare‑earth magnets provide high magnetic adhesion to prevent stir bar decoupling even with viscous liquids or at high speeds. The three independent channel groups allow different stirring speeds to be set for different groups of samples (e.g., channel 1 at 500 rpm, channel 2 at 1000 rpm, channel 3 at 1500 rpm), each with independent timers. All channels can run simultaneously, or individual channels can be stopped without affecting the others.
  • Safety Function:
    • IP21 Protection Class: The IP21‑rated housing (DIN/EN 60529) provides protection against solid foreign objects >12.5 mm and vertically falling water drops, ensuring reliable service in busy laboratory environments where minor spills may occur.
    • Spark‑Free Brushless Motor: The brushless DC motor is spark‑free, making the instrument safer for use in environments where flammable solvents may be present.
    • Overload Protection: Basic circuit protection ensures safe operation under normal conditions.
    • Stable, Non‑Slip Base: Non‑slip rubber feet prevent the instrument from walking during operation at high speeds, ensuring stability and safety.
    • Low Noise Operation: The brushless motor provides ultra‑quiet operation, minimising distractions in the laboratory.
  • Spill Protection: IP21‑rated housing offers protection against vertically falling water drops. The smooth aluminum work plate is easy to wipe clean after minor spills. The perimeter of the work plate is slightly raised to contain small spills.
  • Portability: Compact benchtop design with a moderate footprint (615 × 307 mm) and weight of 9.2 kg, easily moved between workstations but heavy enough to remain stable during operation.
  • Maintenance: The brushless DC motor is maintenance‑free, requiring no routine brush replacement or lubrication. The aluminum work plate is easy to clean with a mild detergent and soft, damp cloth. The laser‑engraved pattern is durable and resistant to wear.
  • Included Accessories: The standard package includes the MS‑T‑S15 magnetic stirrer, 15 PTFE‑coated magnetic stirring bars (maximum length 40 mm) – typically 40 mm length, one for each position, and a region‑specific power cord (depending on the variant), with a quick start guide and calibration certificate packaged with the manual.
  • Timer Buzzer (Audio Alert): The instrument has a built‑in buzzer. When the timer countdown ends (completion of the set time), the buzzer will emit an audible “beep beep beep” (or “滴滴滴”) alert to notify the user, eliminating the need for constant manual monitoring of the run time.

4.SAFETY & COMPLIANCE ATTRIBUTES

  • Regulatory Status: General laboratory equipment for in vitro diagnostic (IVD) use. Manufactured under ISO 9001 and ISO 13485 quality management systems. TÜV‑certified safety: CE, cTUVus, FCC; meets DIN/EN 60529 (IP code), IEC/EN 61010‑1 safety requirements for laboratory electrical equipment (IEC 61010‑1:2010+A1).
  • IP21 Protection Class (Ingress Protection – Industrial‑strength safety and ingress rating): The IP21 rating (DIN/EN 60529) provides protection against solid foreign objects >12.5 mm (dust protection) and vertically falling water drops (basic splash protection), ensuring reliable service in general laboratory environments where spills and splashes are routine.
  • Motor Safety: The brushless DC motor is spark‑free, making the instrument safe for use in environments where flammable solvents may be present.
  • Electrical Safety: Designed with a universal power supply (100–240 V, 50/60 Hz) for safe operation across multiple regions without voltage conversion. The IP21‑rated housing offers protection against solid foreign objects >12.5 mm and vertically falling water drops.
  • Chemical Safety: The anodised aluminum work plate is resistant to many common laboratory chemicals, including weak acids, weak alkalis, and organic solvents, preventing corrosion and ensuring a long service life. However, as with all aluminum surfaces, avoid prolonged exposure to strong acids, strong alkalis, or concentrated aggressive solvents.
  • Fire Safety: Aluminum work plate and flame‑retardant plastic housing provide basic fire protection and heat dissipation.
  • Quality Assurance: Each instrument is factory‑calibrated and supplied with a calibration certificate traceable to international standards. The instrument is backed by the manufacturer’s warranty.

5.STORAGE & HANDLING ATTRIBUTES

  • Storage: Store the instrument in a clean, dry, dust‑free environment at room temperature (15–30 °C) when not in use. Keep the work plate covered to prevent dust accumulation. The IP21 rating provides protection against dust ingress during storage.
  • Installation: Place the instrument on a stable, level, non‑flammable laboratory benchtop away from flammable materials, volatile solvents, and strong magnetic fields (e.g., large magnets, NMR equipment). Allow adequate clearance for ventilation. The wide operating voltage (100–240 V) allows worldwide use without a voltage converter.
  • Cleaning: Unplug the unit before cleaning. Wipe the aluminum work plate and the metal housing with a soft, damp cloth using a mild laboratory detergent or 70 % isopropyl alcohol. Do not immerse the unit in liquid. Do not use abrasive cleaners, strong acids, or metal‑scouring pads, which may scratch the laser‑engraved pattern or damage the anodised surface of the work plate. The laser‑engraved anti‑slip pattern is durable, but abrasive scrubbing will erode the fine engraving over time.
  • Pre‑use inspection: Before each use, inspect the power cord and plug for any damage. Ensure the work plate is clean, dry, and free of chemical residues. Check that all 15 magnetic stir bars are in good condition without chips or cracks and are appropriately sized for the vessels (recommended stir bar length ≤40 mm). Verify that the instrument is not placed near sources of strong magnetic fields, which could interfere with the magnetic coupling. Ensure that each vessel is correctly positioned over its respective magnetic drive point.
  • Operation – Multiple‑Position Stirring: For each channel group independently, place up to 5 stirring vessels (e.g., beakers, flasks, tubes) on the work plate, centering each vessel over its corresponding magnetic drive position. Add a magnetic stir bar (maximum length 40 mm) to each vessel. Turn on the main power. For channel 1, set the desired stirring speed (100–1500 rpm) and timer duration (1 minute to 99 hours 59 minutes) using the control panel for that channel. Repeat for channels 2 and 3. Each channel can be set to a different speed and timer independently. Press the start button for each channel to begin stirring. The LCD display for that channel will show the actual real‑time speed and remaining time. Always start stirring at a low speed (200–300 rpm) to allow the stir bars to couple correctly before gradually increasing to the target speed. The electronic speed control maintains constant speed even under changing load conditions.
  • Cooling down: Not applicable (non‑heating model). The work plate may warm slightly due to motor operation (especially during long runs), but remains safe to touch. For continuous high‑speed operation on all 15 positions, the work plate may reach temperatures up to approximately 40–50 °C.
  • Timer operation: For each channel independently, set the desired timer duration before starting the channel. The timer counts down while the channel is stirring. When the timer reaches zero, the channel stops stirring automatically, and the buzzer sounds. Press any button on that channel‘s panel to silence the buzzer. The buzzer feature ensures operators are alerted when a run is complete, even when they are working across the laboratory. The timer can be deactivated (set to continuous mode) if not needed.
  • Periodic verification: Verify the stirring performance periodically for each channel by observing the LCD speed reading and comparing with an independent tachometer if required (speed accuracy is ±10 rpm). If any deviation is detected beyond the specification, consult the manufacturer’s service guidelines. Keep a record of verifications as part of the instrument’s performance log.

6. LABORATORY & CLINICAL APPLICATIONS

  • Primary Application: High‑throughput, non‑heating stirring for clinical diagnostics (15‑sample parallel mixing), pharmaceutical quality control (batch preparation of standards and buffers), food and feed analysis (Kjeldahl nitrogen determination), environmental testing (soil, water, sludge sample homogenisation), textile and polymer testing, petroleum products analysis, and academic research laboratories where independent, reproducible stirring of up to 15 samples simultaneously is required.
Clinical Role: A versatile and essential high‑throughput benchtop instrument for hospital and clinical chemistry laboratories, toxicology departments, pharmaceutical QC facilities, food and feed testing laboratories, environmental monitoring stations, water treatment plants, petrochemical laboratories, textile and polymer testing facilities, academic research institutions, and teaching laboratories. Critical for parallel mixing of QC materials, standards, reagents, and patient samples where independent, reproducible stirring across multiple channels is required for diagnostic accuracy, regulatory compliance, and laboratory efficiency.
SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

  • Magnetic Field Interference: The stirrer contains strong permanent neodymium magnets. People with implanted medical devices (e.g., pacemakers, neurostimulators, implantable cardioverter‑defibrillators) should keep a safe distance of at least 30 cm from the operating stirrer. Do not place the instrument near credit cards, hard drives, computer monitors, or other magnetic‑sensitive equipment.
  • Channel and Position Spacing: Use vessels that fit comfortably within the designated position boundaries without contacting adjacent vessels. The 15 positions are arranged in three rows of five. Ensure adequate spacing between vessels on adjacent channels to prevent magnetic interference that could cause stir bars to decouple or vessels to collide. Do not use oversized vessels that extend beyond the footprint of the aluminum plate.
  • Vessel Selection: Use only flat‑bottomed vessels (beakers, Erlenmeyer flasks, crystallizing dishes) that sit flush on the aluminum work plate. Avoid using round‑bottom flasks without a suitable flat‑bottom adaptor, as they may tip over and cause spillage. Ensure each vessel is properly centered over its corresponding magnetic drive coil.
  • Stir Bar Selection: Select stir bars no longer than 40 mm. Ensure each stir bar is in good condition without chips, cracks, or deformities before use. Before starting each channel, visually check that the stir bar is correctly coupled to the magnetic drive. Always start stirring at a low speed (100–200 rpm) to allow the stir bar to centre itself before gradually increasing to the desired speed. This prevents the stir bar from decoupling, which can cause erratic rotation, scraping of the plate surface, or splashing.
  • Speed Adjustments: For each of the three channels, increase the speed gradually. A sudden high‑speed start may cause the stir bar to spin erratically and strike the vessel wall or decouple entirely. When processing viscous samples, a slower start is particularly important to prevent stalling of the magnetic coupling.
  • Channel Independence: The three channels operate independently. When using multiple channels simultaneously, note that the speed and timer settings for each channel are independent. Different channels can be set to completely different speed profiles (e.g., Channel 1 at 500 rpm, Channel 2 at 1500 rpm, Channel 3 at 200 rpm). Ensure that the stir bars in each channel are correctly coupled before beginning operation on the next channel.
  • Electrical Safety: Do not operate the instrument with wet hands. Ensure the mains power cable does not come into contact with liquids or sharp edges that could damage the insulation. Use only the supplied grounded power cord and ensure the outlet provides proper grounding. This instrument complies with IEC 61010‑1 safety requirements, but the IP21 rating only provides basic protection against dripping water. For applications involving large volumes of liquid near the instrument, use spill trays or secondary containment.
  • Spill Management: If a liquid spill occurs on the work plate during operation, turn off the affected channel(s) at once. After the spill has been wiped clean and the work plate is completely dry, resume operation. Prolonged contact with aggressive solvents (e.g., acetone, chlorinated solvents) may damage the laser engraving on the aluminum plate. Do not pour solvents directly onto the work plate.
  • Cleaning and Maintenance: Unplug the instrument before cleaning. Wipe the aluminum work plate and the outer housing with a soft, slightly damp cloth using a mild laboratory detergent or 70 % isopropyl alcohol. Do not immerse the unit in liquid. Do not use abrasive cleaners, metal scouring pads, or sharp objects that could scratch the laser engraving or damage the aluminum surface. Allow the work plate to dry thoroughly before reconnecting power.
  • Operating Environment: The MS‑T‑15 is designed for indoor laboratory use only. Do not use the instrument in explosive atmospheres, in the presence of flammable gases or vapors, or in environments where condensation is likely to occur (e.g., directly above a water bath). The permissible ambient temperature range is 5–40 °C with relative humidity not exceeding 80 %.
  • Pre‑Use Inspection: Before each use, inspect the power cord for fraying or damage. Ensure that all 15 stirring positions are clean and free of debris. Check that the stir bars are correctly seated in the vessels and are free from cracks or chips. If any stir bar shows signs of wear, replace it before proceeding.
  • Ventilation and Clearance: The instrument’s brushless DC motor generates minimal heat, but the power supply electronics require adequate ventilation. Place the instrument on a stable, level benchtop with at least 5 cm clearance on all sides. Do not cover the instrument or stack objects on top of it during operation.
  • Timer and Buzzer Use: When using the timer function (1 min to 99 h 59 min), verify that the preset time is correct before starting. The buzzer emits an audible “beep beep beep” when the countdown ends. Programmed timers can be used for unattended operation, but users should verify the buzzer volume is adequate for the ambient noise level of the laboratory. Do not rely on the timer alert alone when unattended operation of hazardous materials is involved.
  • Training Requirement: Only trained laboratory personnel with appropriate technical background in laboratory equipment operation should operate the MS‑T‑S15 for clinical diagnostic or research applications. Users must read and understand the operator’s manual before first use. Laboratory managers should ensure that all operators are aware of the independent channel control features and the proper procedure for starting and stopping stir bars across 15 positions.

2. FIRST AID MEASURES

  • Chemical Splash to Eyes: If a biological or chemical sample splashes into the eyes during operation, immediately flush the eyes with copious amounts of water or sterile saline for at least 15 minutes. Seek immediate medical attention.
  • Skin Contact with Chemical Sample: Remove contaminated clothing at once. Wash the affected skin area with soap and water for at least 5 minutes. If irritation or signs of chemical burn develop, seek medical evaluation. Refer to the Safety Data Sheet (SDS) for the specific chemical involved.
  • Sharps Injury (Broken Glassware): If a broken vessel lacerates the skin, allow the wound to bleed freely. Wash the wound with soap and water for 15 minutes. Apply antiseptic and a sterile bandage. If the vessel contained patient biological material, follow the facility’s exposure management protocol for bloodborne pathogens.
  • Inhalation of Chemical Vapors: If vapors from volatile reagents are inhaled during sample preparation, move the affected person to fresh air immediately. Administer oxygen if breathing is difficult. Seek medical attention if coughing, dizziness, or respiratory distress persists.
  • Electrical Shock: If an electrical shock incident occurs, disconnect power at the circuit breaker or unplug the instrument before attempting to assist the victim. Do not touch the victim until the power is disconnected. Call emergency medical services immediately.

3. FIRE FIGHTING MEASURES

  • Flammability: The instrument’s aluminum work plate is non‑combustible, but the plastic control panel, power cord, and electronic components are combustible. Do not operate near flammable solvents, gases, or volatile materials (e.g., diethyl ether, acetone, hexane). The primary fire hazard is the flammable liquids being stirred.
  • Extinguishing Media: Use carbon dioxide (CO₂) or a dry chemical (ABC‑class) extinguisher for fires involving the electrical components. Do not use water, as water conducts electricity and may cause electrical shock or damage the instrument.
  • Fire Response: In case of fire, disconnect the instrument from its power source if safe to do so. Evacuate the immediate area. Use an appropriate extinguisher for small, contained fires. For larger fires, evacuate the laboratory and call emergency services. Do not attempt to extinguish a fire if not trained or if the fire is spreading rapidly.
