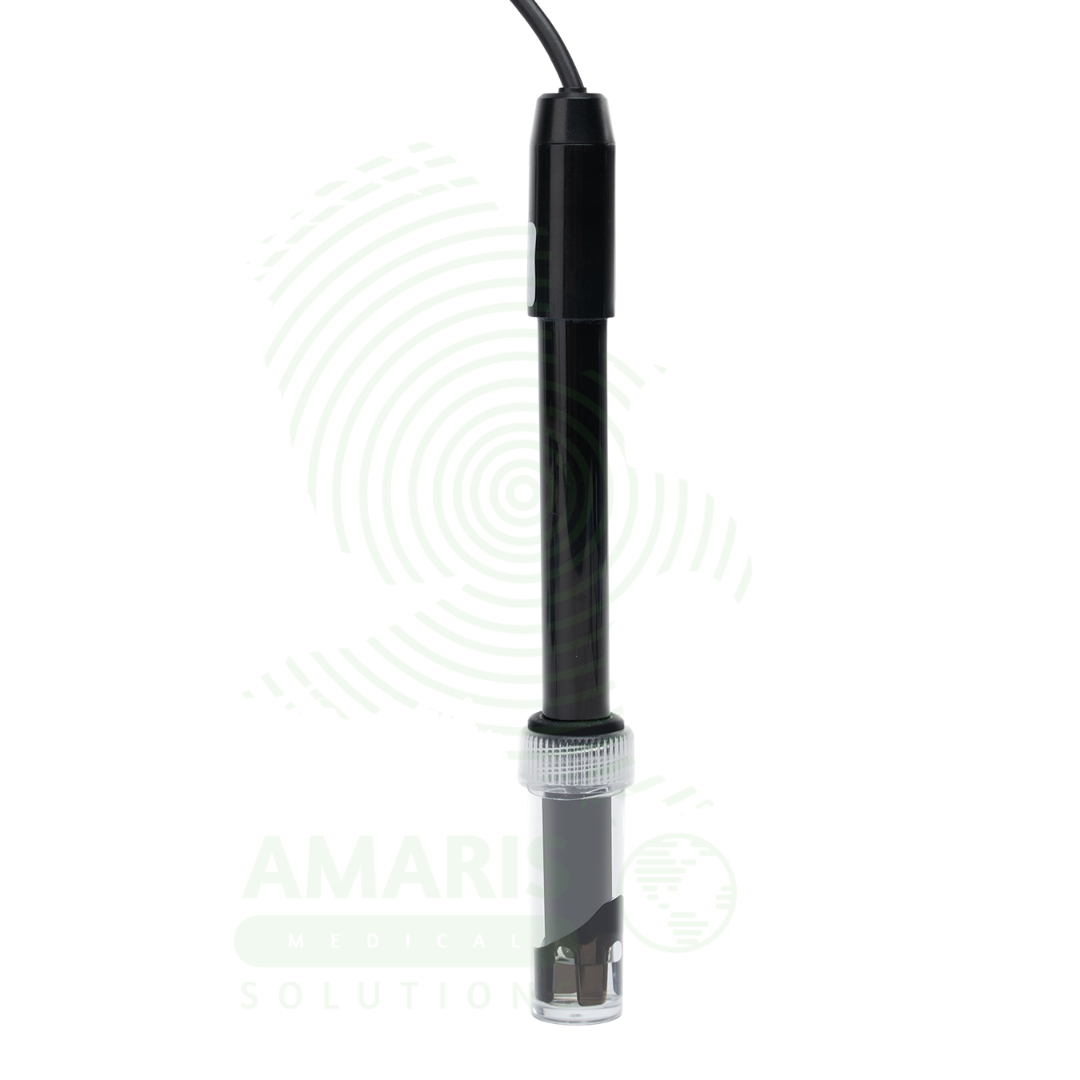

Plastic ATC Cond probe

WhatsApp Order

The Plastic ATC Cond Probe is a rugged, 4-ring conductivity and temperature sensor designed for use with compatible benchtop and portable meters. Featuring a durable epoxy body and an integrated temperature sensor, this single probe automatically corrects conductivity readings for temperature fluctuations (ATC), simplifying measurement of ionic content in pharmaceutical water, dialysis fluids, and biological samples.

The 4-cell graphite design minimizes polarization, ensuring high accuracy across a wide measuring range—from 0.1 µS/cm for high-purity water up to 350 mS for saline solutions. For the laboratory professional, this probe offers a low-maintenance solution for verifying water quality and monitoring buffer concentrations, supporting critical applications in renal dialysis, pharmaceutical compounding, and chemistry analysis. For the patient, consistent and accurate conductivity testing ensures the safety and efficacy of water purification systems and the chemical composition of essential treatment fluids.

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Lab Consumables Tags: 4-Ring Conductivity Sensor, Conductivity Probe, Dialysis Water Testing, Epoxy Conductivity Electrode, Pharmaceutical Water QC, Plastic ATC Cond Probe, Temperature Compensation Probe

Description

Plastic ATC Cond Probe

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Conductivity and Temperature Measurement of Biological Fluids

Primary Use: Provides a combination conductivity electrode with a built-in automatic temperature compensation (ATC) sensor (typically a 4-ring or 4-cell graphite/platinum design) housed in a durable plastic (epoxy) body. It measures electrical conductivity (EC) and temperature simultaneously in liquids, ranging from purified water up to 350 mS for saline and high-ionic-strength solutions.
How it helps: For the clinical laboratory scientist and medical technologist, the 4-ring design eliminates polarization effects, allowing accurate measurement of conductivity in complex biological fluids (e.g., urine, dialysis fluid, saline). The integrated ATC sensor automatically corrects readings to a standard reference temperature (usually 25°C), eliminating calculation errors and improving the reproducibility of diagnostic testing. For the patient, accurate conductivity measurement is essential for assessing electrolyte balance (e.g., monitoring urine concentration in kidney disease) and verifying the quality of dialysis solutions.

2. Quality Control of Purified Water and Dialysis Solutions

Primary Use: Designed for high-accuracy measurement of resistivity/conductivity in purified water systems, water-for-injection (WFI), and hemodialysis solutions, with temperature compensation essential for USP compliance.
How it helps: For the healthcare facility water quality manager and dialysis technician, the epoxy body provides high chemical resistance, ensuring reliable conductivity measurement in aggressive media and compatibility with Clean-In-Place (CIP) protocols. For the patient, continuous monitoring of dialysis water conductivity prevents patient exposure to improper electrolyte concentrations or microbial contaminants in renal replacement therapy.

SECONDARY & SUPPORTIVE USES

1. UV Water Quality and Boiler Water Monitoring: Supports high-precision conductivity measurement for industrial water treatment and process control.

2. Salinity and Ionic Strength Measurement: Used to measure salinity in research applications or monitor total ionic strength in buffer solutions.

3. Leak Detection and Cleaning Validation: Serves as a flush-mounted sensor for leak detection in cleanrooms and to validate rinsing steps in CIP systems.

4. Concentration Monitoring of Salt Solutions: Used to monitor the concentration of saline solutions in pharmaceutical compounding or laboratory reagent preparation.

5. Environmental Water Sampling: Measures conductivity of natural water samples in environmental monitoring programs.

6. Food and Beverage Quality Control: Used in beverage manufacturing (e.g., soft drinks, dairy) and food processing to verify product consistency.

7. Research and Academic Laboratories: Serves as a general purpose conductivity sensor for any aqueous solution in research settings.

8. Agriculture and Hydroponics: Monitors nutrient concentration (EC) in hydroponic nutrient solutions.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A 4-ring/4-cell conductivity/temperature (EC/ATC) probe with a durable plastic (epoxy) body for general laboratory, environmental, and industrial applications.
Designation: Plastic ATC Cond Probe (e.g., DLAB DCON201T, Eutech ECCONSEN9203J, Accumet polymer electrodes), 4-Cell Conductivity Probe, Graphite Conductivity Electrode.
Key Components:
- Sensor Element: 4 graphite rings or platinum plates for conductivity measurement (reduces polarization).
- Body Material: Epoxy or PEEK (polyetheretherketone) for high chemical resistance and durability.
- Temperature Sensor: Integrated Pt100, Pt1000, or 10K thermistor for ATC.
- Electrode Constant: K = 0.1 to 1.0 (adjustable range for different sensitivity needs).

2. TECHNICAL & PERFORMANCE PROPERTIES

Conductivity Range: 0.1 µS/cm to 200 mS/cm (up to 350 mS for specific models).
Temperature Range: 0°C to 100°C.
Temperature Sensor: Automatic Temperature Compensation (ATC) via integrated thermistor.
Cell Constant (K): Typically 0.53 (allows wide range measurement from pure water to brackish water).
Body Material: Epoxy (general purpose, chemical resistant) or PEEK (industrial, high temp).
Connector Types: 8-pin (DIN), BNC + phono jack (3.5mm), or mini-phone.
Dimensions: Shaft length 120 mm, Diameter 12 mm (standard).

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Smooth, durable epoxy body; fully sealed, no electrolyte refilling required; graphite electrodes resist corrosion.
Operation: Requires calibration against standard KCl solutions; ensure probe is clean and free of air bubbles.
Maintenance: Rinse with distilled water; clean with mild detergent for organic residue; no electrolyte refill required.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Standard laboratory accessory for IVD and industrial use.
Chemical Resistance: Epoxy body resists corrosion from salts, mild acids, and bases; avoid strong organic solvents.
Storage: Keep electrode dry or in low-ionic-strength solution (e.g., deionized water) to prevent contamination.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store dry or in clean water; do not allow deposits to form on the graphite rings.
Cleaning: Rinse with distilled water; use mild detergent if oily; do not scrub the graphite surface.
Inspection: Check graphite rings for scratches or deposits before use.
Cable Care: Do not sharply bend or crimp the cable.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Conductivity and temperature measurement in purified water, dialysis fluids, pharmaceutical preparations, and general aqueous solutions in clinical diagnostic, environmental, and industrial laboratories.
Clinical Role: Essential accessory for water quality management in hospitals (dialysis, sterile processing), chemistry analyzers, and pharmaceutical compounding.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Electrical Safety: Do not submerge the connector; keep the plug dry.
Handling: Do not use sharp objects to clean the graphite rings.
Cleaning: Rinse immediately after contact with proteins or biological fluids to prevent fouling.
Training: Ensure users calibrate the system using a standard solution (KCl) before use.

2. FIRST AID MEASURES

Sample Splash: If sample splashes into eyes, flush with water for 15 minutes, seek medical attention; if on skin, wash with soap and water.
Electrical Malfunction: Check for loose connector if readings erratic.

3. FIRE FIGHTING MEASURES

Flammability: Plastic housing and cable insulation are combustible; the sensor tip is non-flammable.
Extinguishing Media: Use carbon dioxide (CO₂) or dry chemical extinguisher for electrical fires.

Plastic ATC Cond probe

Plastic ATC Cond Probe

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Conductivity and Temperature Measurement of Biological Fluids

2. Quality Control of Purified Water and Dialysis Solutions

Primary Use: Designed for high-accuracy measurement of resistivity/conductivity in purified water systems, water-for-injection (WFI), and hemodialysis solutions, with temperature compensation essential for USP compliance.

SECONDARY & SUPPORTIVE USES

1. UV Water Quality and Boiler Water Monitoring: Supports high-precision conductivity measurement for industrial water treatment and process control.

2. Salinity and Ionic Strength Measurement: Used to measure salinity in research applications or monitor total ionic strength in buffer solutions.

3. Leak Detection and Cleaning Validation: Serves as a flush-mounted sensor for leak detection in cleanrooms and to validate rinsing steps in CIP systems.

4. Concentration Monitoring of Salt Solutions: Used to monitor the concentration of saline solutions in pharmaceutical compounding or laboratory reagent preparation.

5. Environmental Water Sampling: Measures conductivity of natural water samples in environmental monitoring programs.

6. Food and Beverage Quality Control: Used in beverage manufacturing (e.g., soft drinks, dairy) and food processing to verify product consistency.

7. Research and Academic Laboratories: Serves as a general purpose conductivity sensor for any aqueous solution in research settings.

8. Agriculture and Hydroponics: Monitors nutrient concentration (EC) in hydroponic nutrient solutions.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A 4-ring/4-cell conductivity/temperature (EC/ATC) probe with a durable plastic (epoxy) body for general laboratory, environmental, and industrial applications.

Designation: Plastic ATC Cond Probe (e.g., DLAB DCON201T, Eutech ECCONSEN9203J, Accumet polymer electrodes), 4-Cell Conductivity Probe, Graphite Conductivity Electrode.

Key Components:

Sensor Element: 4 graphite rings or platinum plates for conductivity measurement (reduces polarization).

Body Material: Epoxy or PEEK (polyetheretherketone) for high chemical resistance and durability.

Temperature Sensor: Integrated Pt100, Pt1000, or 10K thermistor for ATC.

Electrode Constant: K = 0.1 to 1.0 (adjustable range for different sensitivity needs).

2. TECHNICAL & PERFORMANCE PROPERTIES

Conductivity Range: 0.1 µS/cm to 200 mS/cm (up to 350 mS for specific models).

Temperature Range: 0°C to 100°C.

Temperature Sensor: Automatic Temperature Compensation (ATC) via integrated thermistor.

Cell Constant (K): Typically 0.53 (allows wide range measurement from pure water to brackish water).

Body Material: Epoxy (general purpose, chemical resistant) or PEEK (industrial, high temp).

Connector Types: 8-pin (DIN), BNC + phono jack (3.5mm), or mini-phone.

Dimensions: Shaft length 120 mm, Diameter 12 mm (standard).

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Smooth, durable epoxy body; fully sealed, no electrolyte refilling required; graphite electrodes resist corrosion.

Operation: Requires calibration against standard KCl solutions; ensure probe is clean and free of air bubbles.

Maintenance: Rinse with distilled water; clean with mild detergent for organic residue; no electrolyte refill required.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Standard laboratory accessory for IVD and industrial use.

Chemical Resistance: Epoxy body resists corrosion from salts, mild acids, and bases; avoid strong organic solvents.

Storage: Keep electrode dry or in low-ionic-strength solution (e.g., deionized water) to prevent contamination.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store dry or in clean water; do not allow deposits to form on the graphite rings.

Cleaning: Rinse with distilled water; use mild detergent if oily; do not scrub the graphite surface.

Inspection: Check graphite rings for scratches or deposits before use.

Cable Care: Do not sharply bend or crimp the cable.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Conductivity and temperature measurement in purified water, dialysis fluids, pharmaceutical preparations, and general aqueous solutions in clinical diagnostic, environmental, and industrial laboratories.

Clinical Role: Essential accessory for water quality management in hospitals (dialysis, sterile processing), chemistry analyzers, and pharmaceutical compounding.

1. SAFETY PRECAUTIONS

Electrical Safety: Do not submerge the connector; keep the plug dry.

Handling: Do not use sharp objects to clean the graphite rings.

Cleaning: Rinse immediately after contact with proteins or biological fluids to prevent fouling.

Training: Ensure users calibrate the system using a standard solution (KCl) before use.

2. FIRST AID MEASURES

Sample Splash: If sample splashes into eyes, flush with water for 15 minutes, seek medical attention; if on skin, wash with soap and water.

Electrical Malfunction: Check for loose connector if readings erratic.

3. FIRE FIGHTING MEASURES

Flammability: Plastic housing and cable insulation are combustible; the sensor tip is non-flammable.

Extinguishing Media: Use carbon dioxide (CO₂) or dry chemical extinguisher for electrical fires.
