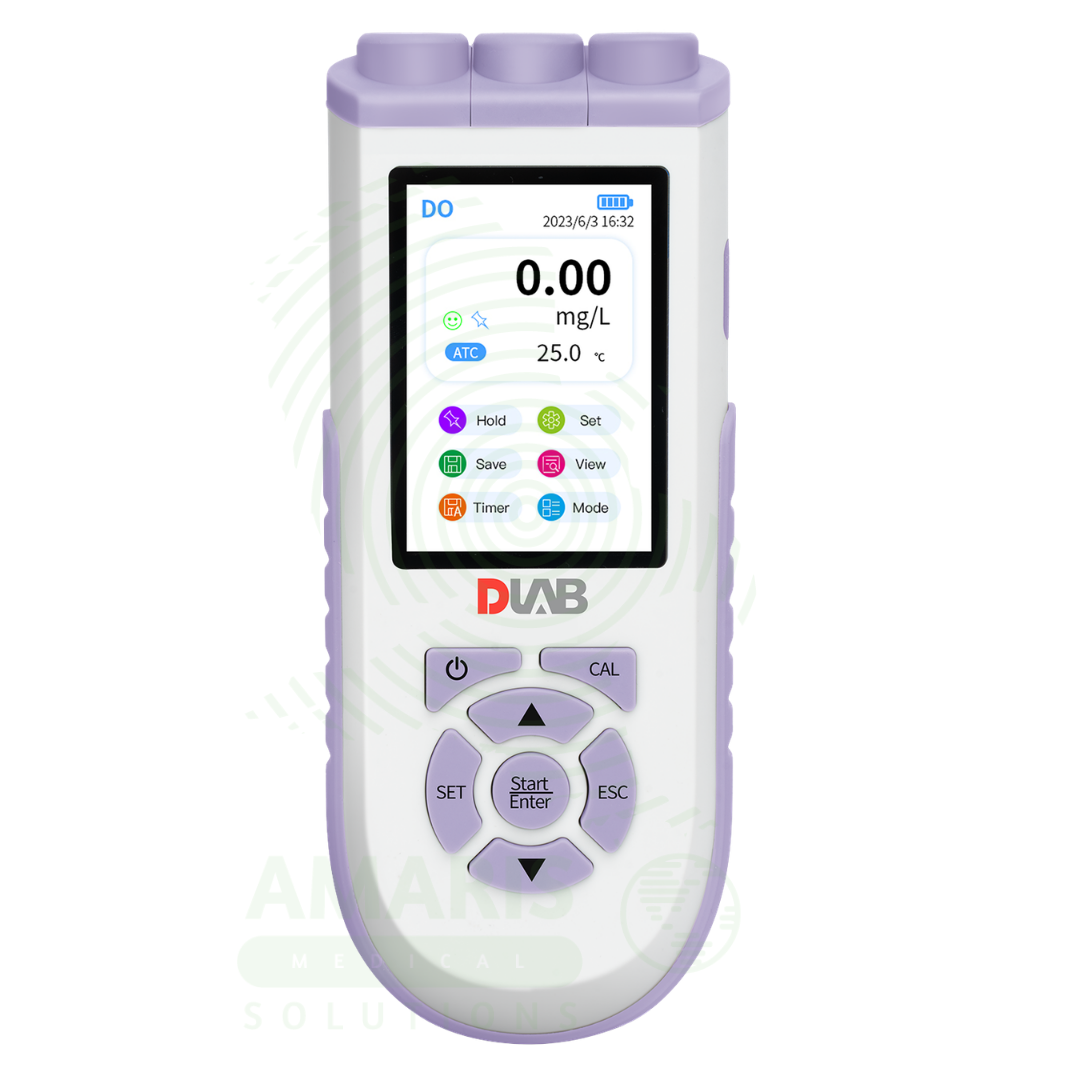

Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10)

WhatsApp Order

The Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10) is a rugged, handheld instrument designed for accurate, on-site dissolved oxygen analysis. Utilizing a polarographic probe technology, it measures DO concentration (0.00~20.00 mg/L) and percent saturation (0.0~200.0%) with automatic compensation for temperature, barometric pressure, and manual salinity changes.

Featuring a 3.5-inch TFT color screen and a user-friendly UI interface, the Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10) simplifies field water quality testing. It stores up to 3000 data sets, supporting GLP-compliant documentation, and its rechargeable lithium battery with a Type-C port ensures convenient power for mobile use. The system includes a polarographic DO probe (DDO01-2M-H), maintenance solutions, membrane caps, and a hard carrying case, making it ready for deployment.

For the water quality specialist, the Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10) is essential for monitoring dissolved oxygen in purified water systems (WFI, dialysis water), assessing aeration in wastewater treatment, and verifying water quality in pharmaceutical production and hospital facilities. For the patient, this rigorous monitoring helps ensure that water used in dialysis and other medical treatments meets stringent safety standards, preventing potential harm from improperly treated water. The meter provides quick, reliable, and verifiable results for any application requiring critical DO measurement.

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Analyzers Tags: Dialysis Water Monitoring, DLAB DDO10, DO Measurement, Polarographic DO Meter, Portable Dissolved Oxygen Meter, Portable DO Analyzer, Portable Polarized Dissolved Oxygen Meter - Single Parameter (DDO10), Water Quality Testing

Description

Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Rapid Assessment of Dissolved Oxygen in Biological and Environmental Samples

Primary Use: Provides a portable, single-parameter dissolved oxygen meter utilizing polarographic probe technology to measure DO concentration (0.00~20.00 mg/L) and oxygen saturation (0.0~200.0%) in aqueous samples, with integrated temperature, barometric pressure, and salinity compensation for accurate readings.
How it helps: For the clinical laboratory scientist and environmental health specialist, the DDO10 enables rapid, on-site determination of dissolved oxygen levels in various aqueous matrices relevant to healthcare environments, such as purified water systems, dialysis water, and biological oxygen demand (BOD) samples in wastewater treatment. The 3.5-inch TFT color screen provides an intuitive, easy-to-read interface for efficient fieldwork. For the patient, accurate measurement of dissolved oxygen in water used for dialysis or other medical processes is a critical parameter for ensuring water quality and preventing adverse events related to improper water treatment.

2. Monitoring of Water Quality in Critical Healthcare Systems

Primary Use: Designed to monitor dissolved oxygen levels in purified water systems, water-for-injection (WFI) loops, and wastewater treatment facilities associated with hospitals and pharmaceutical manufacturing.
How it helps: For the facility water quality manager and infection control officer, the DDO10’s IP57 dustproof and waterproof rating, along with its rechargeable lithium battery and Type-C charging, makes it ideally suited for spot-checking water quality at various points in a distribution system. The auto-calibration and data storage functions support rigorous quality assurance documentation as required by GLP standards. For the patient, continuous and accurate monitoring of water treatment processes helps prevent healthcare-associated infections linked to waterborne pathogens.

SECONDARY & SUPPORTIVE USES

1. Aquaculture and Zebrafish Facility Management: Used to monitor dissolved oxygen levels in aquatic animal housing facilities within research institutions.

2. Pharmaceutical Bioprocess Support: Verifies DO levels in small-scale bioreactors and shaker flasks used in pharmaceutical R&D.

3. Wastewater Treatment Monitoring: Measures dissolved oxygen in hospital wastewater treatment systems to assess treatment efficacy and aeration basin performance.

4. Boiler Water and Steam Generation Monitoring: Checks scavenger residuals and corrosion potential in boiler water systems.

5. Environmental and Surface Water Monitoring: Portable format is ideal for field studies measuring DO in natural water bodies to assess ecosystem health.

6. Educational and Laboratory Training: Serves as a practical teaching tool for demonstrating electrochemistry and water quality measurement principles.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A portable, battery-operated meter using a polarographic dissolved oxygen sensor. It is a single-parameter instrument for measuring DO concentration and saturation, with integrated temperature measurement and automatic/built-in compensation mechanisms.
Designation: DDO10 Portable Polarized Dissolved Oxygen Meter, DLAB DDO10, Portable DO Meter, Single-Parameter DO Analyzer.
Key Components:
- Instrument Meter: Portable housing with a 3.5-inch TFT LCD color screen, UI interface, and Type-C charging port.
- Polarographic DO Probe: Model DDO01-2M-H dissolved oxygen electrode with a 2-meter cable, pre-installed membrane cap.
- Electrode Maintenance Supplies: DDOS-01 internal solution and DDOSC replacement membrane cap set.
- Power Supply: Rechargeable lithium battery (pre-installed) and charging cable.
- Accessories: Hard carrying case for transport and storage.

2. TECHNICAL & PERFORMANCE PROPERTIES

Measurement Range: Dissolved oxygen: 0.00~20.00 mg/L; Oxygen saturation: 0.0~200.0%.
Measurement Accuracy: DO: ±0.30 mg/L.
Temperature Display Range: 0.0~100.0°C / 32.0~212.0°F (with an extended sensor limit).
Temperature Accuracy: ±0.2°C.
Compensation Methods: Automatic barometric pressure compensation (0~200.0 kPa), automatic temperature compensation (0.0~50.0 °C), and manual salinity compensation (0~45 ppt).
Display: 3.5-inch TFT LCD color screen.
Data Storage: 3000 data sets, including parameter, measured value, temperature, and timestamp.
Power Supply: Rechargeable lithium battery, charged via Type-C port.
Protection Class: IP57 (dustproof and waterproof).
Dimensions (Carrying Case): 33 × 27.2 × 8.2 cm.

3. PHYSICAL & OPERATIONAL PROPERTIES

Display: High-resolution color TFT screen for superior visibility and user experience.
User Interface: New UI design and intelligent operation system with functions for timed measurement, parameter setting, and data locking.
Connectivity: Type-C charging port, compliant with modern electronics standards.
Electrode Maintenance: Polarographic probe requires periodic polarization before use and replenishment of the internal electrolyte solution; different membrane caps are used based on application.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: IVD (In Vitro Diagnostic) preparatory equipment; complies with GLP standards for data management.
Waterproof Rating: IP57, providing reliable operation in humid or wet field conditions.
Power Management: Built-in low-power management, automatic power-off, and power failure protection functions.
Software Upgradeable: Supports software upgrades for maintaining instrument performance.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store the meter in a clean, dry place. The DO probe must be stored with the membrane cap moist to prevent it from drying out and damaging the sensor.
Cleaning: Rinse the probe with distilled water after each use. Wipe the meter body with a soft, damp cloth using a mild detergent. Do not submerge the meter body.
Polarization: The polarographic DO probe requires a warm-up/polarization period (typically 10-30 minutes) before accurate calibration and measurement to stabilize the sensor current. Ensure the meter is ON and connected to the probe well in advance of use.
Calibration: Calibrate the meter before use, typically in water-saturated air (100% humidity) or using a zero-oxygen solution (e.g., sodium sulfite).
Calibrating: Follow the on-screen instructions to perform electrode calibration or standard solution calibration.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: On-site or laboratory measurement of dissolved oxygen concentration to assess water quality, monitor biological processes, and support environmental compliance in water treatment, aquaculture, and pharmaceutical facilities.
Clinical Role: Used in hospital engineering and facility management teams for water quality surveillance of dialysis water systems, purified water loops, and wastewater treatment plants, as well as in pharmaceutical QA/QC for water system validation.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Electrical Safety: Do not immerse the meter in liquid, despite its IP57 rating. Ensure the Type-C port is dry before charging. Avoid pulling the probe cable violently.
Probe Handling: The polarographic probe is delicate. Do not touch the membrane with sharp objects or abrasives. Do not use the probe in solutions containing organic solvents that might damage the membrane.
Polarization Time: To ensure accuracy, DO probes require a warm-up period of at least 10-30 minutes after connecting to the meter to stabilize the current. Connect the probe and turn on the meter well in advance of calibration.
Calibration Intervals: Calibrate the meter daily before use or as per facility protocol, especially when high accuracy is required for critical water systems. Use air calibration for general purposes.
Membrane Cap Life: Replace the membrane cap when it is damaged or when the response time becomes sluggish.

2. FIRST AID MEASURES

Electrolyte Exposure: If the internal electrolyte solution (DO filling solution) comes into contact with eyes, flush with copious amounts of water for at least 15 minutes and seek medical attention. If on skin, wash with soap and water.
Sample Splash: If a biological sample splashes into the eyes, flush with water for 15 minutes and seek medical attention; if on skin, wash with soap and water.
Electrical Malfunction: If the meter shows signs of electrical malfunction, disconnect it from any power source and contact service personnel.

3. FIRE FIGHTING MEASURES

Flammability: The plastic housing, cable, and case are combustible; may melt or burn if exposed to flame or high heat.
Extinguishing Media: Use carbon dioxide (CO₂) or dry chemical extinguisher for electrical fires.
Fire Response: Disconnect the meter from the charging cable; do not use water on an electrical fire.

Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10)

Portable Polarized Dissolved Oxygen Meter – Single Parameter (DDO10)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Rapid Assessment of Dissolved Oxygen in Biological and Environmental Samples

2. Monitoring of Water Quality in Critical Healthcare Systems

Primary Use: Designed to monitor dissolved oxygen levels in purified water systems, water-for-injection (WFI) loops, and wastewater treatment facilities associated with hospitals and pharmaceutical manufacturing.

SECONDARY & SUPPORTIVE USES

1. Aquaculture and Zebrafish Facility Management: Used to monitor dissolved oxygen levels in aquatic animal housing facilities within research institutions.

2. Pharmaceutical Bioprocess Support: Verifies DO levels in small-scale bioreactors and shaker flasks used in pharmaceutical R&D.

3. Wastewater Treatment Monitoring: Measures dissolved oxygen in hospital wastewater treatment systems to assess treatment efficacy and aeration basin performance.

4. Boiler Water and Steam Generation Monitoring: Checks scavenger residuals and corrosion potential in boiler water systems.

5. Environmental and Surface Water Monitoring: Portable format is ideal for field studies measuring DO in natural water bodies to assess ecosystem health.

6. Educational and Laboratory Training: Serves as a practical teaching tool for demonstrating electrochemistry and water quality measurement principles.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A portable, battery-operated meter using a polarographic dissolved oxygen sensor. It is a single-parameter instrument for measuring DO concentration and saturation, with integrated temperature measurement and automatic/built-in compensation mechanisms.

Designation: DDO10 Portable Polarized Dissolved Oxygen Meter, DLAB DDO10, Portable DO Meter, Single-Parameter DO Analyzer.

Key Components:

Instrument Meter: Portable housing with a 3.5-inch TFT LCD color screen, UI interface, and Type-C charging port.

Polarographic DO Probe: Model DDO01-2M-H dissolved oxygen electrode with a 2-meter cable, pre-installed membrane cap.

Electrode Maintenance Supplies: DDOS-01 internal solution and DDOSC replacement membrane cap set.

Power Supply: Rechargeable lithium battery (pre-installed) and charging cable.

Accessories: Hard carrying case for transport and storage.

2. TECHNICAL & PERFORMANCE PROPERTIES

Measurement Range: Dissolved oxygen: 0.00~20.00 mg/L; Oxygen saturation: 0.0~200.0%.

Measurement Accuracy: DO: ±0.30 mg/L.

Temperature Display Range: 0.0~100.0°C / 32.0~212.0°F (with an extended sensor limit).

Temperature Accuracy: ±0.2°C.

Compensation Methods: Automatic barometric pressure compensation (0~200.0 kPa), automatic temperature compensation (0.0~50.0 °C), and manual salinity compensation (0~45 ppt).

Display: 3.5-inch TFT LCD color screen.

Data Storage: 3000 data sets, including parameter, measured value, temperature, and timestamp.

Power Supply: Rechargeable lithium battery, charged via Type-C port.

Protection Class: IP57 (dustproof and waterproof).

Dimensions (Carrying Case): 33 × 27.2 × 8.2 cm.

3. PHYSICAL & OPERATIONAL PROPERTIES

Display: High-resolution color TFT screen for superior visibility and user experience.

User Interface: New UI design and intelligent operation system with functions for timed measurement, parameter setting, and data locking.

Connectivity: Type-C charging port, compliant with modern electronics standards.

Electrode Maintenance: Polarographic probe requires periodic polarization before use and replenishment of the internal electrolyte solution; different membrane caps are used based on application.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: IVD (In Vitro Diagnostic) preparatory equipment; complies with GLP standards for data management.

Waterproof Rating: IP57, providing reliable operation in humid or wet field conditions.

Power Management: Built-in low-power management, automatic power-off, and power failure protection functions.

Software Upgradeable: Supports software upgrades for maintaining instrument performance.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store the meter in a clean, dry place. The DO probe must be stored with the membrane cap moist to prevent it from drying out and damaging the sensor.

Cleaning: Rinse the probe with distilled water after each use. Wipe the meter body with a soft, damp cloth using a mild detergent. Do not submerge the meter body.

Polarization: The polarographic DO probe requires a warm-up/polarization period (typically 10-30 minutes) before accurate calibration and measurement to stabilize the sensor current. Ensure the meter is ON and connected to the probe well in advance of use.

Calibration: Calibrate the meter before use, typically in water-saturated air (100% humidity) or using a zero-oxygen solution (e.g., sodium sulfite).

Calibrating: Follow the on-screen instructions to perform electrode calibration or standard solution calibration.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: On-site or laboratory measurement of dissolved oxygen concentration to assess water quality, monitor biological processes, and support environmental compliance in water treatment, aquaculture, and pharmaceutical facilities.

Clinical Role: Used in hospital engineering and facility management teams for water quality surveillance of dialysis water systems, purified water loops, and wastewater treatment plants, as well as in pharmaceutical QA/QC for water system validation.

1. SAFETY PRECAUTIONS

Electrical Safety: Do not immerse the meter in liquid, despite its IP57 rating. Ensure the Type-C port is dry before charging. Avoid pulling the probe cable violently.

Probe Handling: The polarographic probe is delicate. Do not touch the membrane with sharp objects or abrasives. Do not use the probe in solutions containing organic solvents that might damage the membrane.

Polarization Time: To ensure accuracy, DO probes require a warm-up period of at least 10-30 minutes after connecting to the meter to stabilize the current. Connect the probe and turn on the meter well in advance of calibration.

Calibration Intervals: Calibrate the meter daily before use or as per facility protocol, especially when high accuracy is required for critical water systems. Use air calibration for general purposes.

Membrane Cap Life: Replace the membrane cap when it is damaged or when the response time becomes sluggish.

2. FIRST AID MEASURES

Electrolyte Exposure: If the internal electrolyte solution (DO filling solution) comes into contact with eyes, flush with copious amounts of water for at least 15 minutes and seek medical attention. If on skin, wash with soap and water.

Sample Splash: If a biological sample splashes into the eyes, flush with water for 15 minutes and seek medical attention; if on skin, wash with soap and water.

Electrical Malfunction: If the meter shows signs of electrical malfunction, disconnect it from any power source and contact service personnel.

3. FIRE FIGHTING MEASURES

Flammability: The plastic housing, cable, and case are combustible; may melt or burn if exposed to flame or high heat.

Extinguishing Media: Use carbon dioxide (CO₂) or dry chemical extinguisher for electrical fires.

Fire Response: Disconnect the meter from the charging cable; do not use water on an electrical fire.
