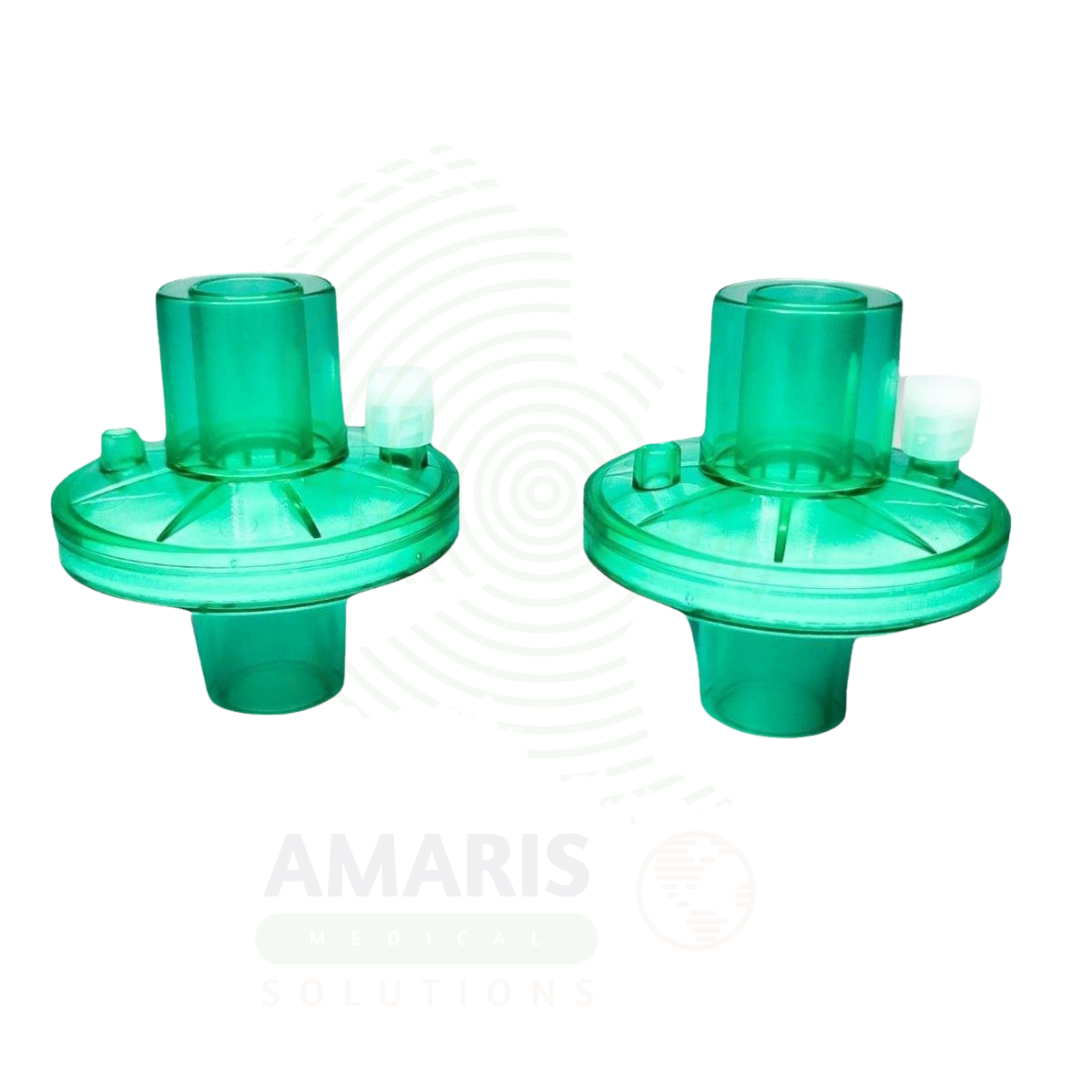

Bacterial Filters

WhatsApp Order

Bacterial Filters are single-use, high-efficiency filters used in mechanical ventilation and anesthesia circuits to remove bacteria and viruses from inspired and expired gases. Protecting patients, equipment, and staff from cross-contamination, they are essential for infection control in intensive care units, operating rooms, and during patient transport. Critical for immunocompromised patients and infection prevention protocols.

Categories: ANESTHESIA AND RESPIRATORY EQUIPMENT, Respiratory Therapy Accessories Tags: Anesthesia Filter, Bacterial Filter, Breathing Circuit Filter, HEPA Filter, Respiratory Filter, Ventilator Filter

Description

Bacterial Filters

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Protection Against Cross-Contamination in Ventilation Circuits

Primary Use: Provides high-efficiency filtration of bacteria, viruses, and other microorganisms from inspired and expired gases in mechanical ventilation and anesthesia circuits. The filter prevents pathogen transmission between patients, the circuit, and the environment.
How it helps: For the infection prevention team and respiratory therapist, bacterial filters provide a critical barrier against cross-contamination—reducing the risk of ventilator-associated pneumonia and protecting staff from exposure to infectious aerosols. For the ventilated patient, this means protection from circuit-acquired infections and reduced risk of respiratory complications.

2. Protection of Ventilator Equipment

Primary Use: Prevents contamination of ventilator internal components by filtering bacteria and viruses from exhaled gas, protecting sensitive equipment and reducing the risk of cross-contamination between patients.
How it helps: For the biomedical engineering team and respiratory care department, bacterial filters protect expensive ventilator equipment from contamination—reducing maintenance costs and extending equipment life. For the patient, this ensures that ventilators remain free from contamination between uses.

3. Infection Control in Anesthesia Circuits

Primary Use: Used in anesthesia circuits to filter both inspired and expired gases, protecting the anesthesia machine from contamination and preventing transmission of pathogens between patients.
How it helps: For the anesthesia department and sterile processing team, bacterial filters simplify infection control protocols—reducing the need for circuit disinfection between cases. For the patient undergoing anesthesia, this ensures a clean, protected airway circuit for each procedure.

4. Protection for Immunocompromised Patients

Primary Use: Provides critical protection for immunocompromised patients who are at increased risk of healthcare-associated infections, filtering both the gas delivered to the patient and the gas exhaled from the patient.
How it helps: For the critical care team managing immunocompromised patients, bacterial filters provide an additional layer of protection against environmental and cross-transmitted pathogens. For the vulnerable patient, this means reduced risk of acquiring respiratory infections during mechanical ventilation.

5. Prevention of Circuit Contamination During Transport

Primary Use: Used during patient transport to prevent contamination of portable ventilators and to protect both the patient and transport equipment from cross-contamination.
How it helps: For the transport team, bacterial filters simplify infection control during transport—allowing ventilators to be used on multiple patients with appropriate filtration. For the patient being transported, this ensures continuous protection against circuit-acquired infections.

SECONDARY & SUPPORTIVE USES

1. Home Ventilation: Used in home ventilators to protect equipment and patient.

2. Long-Term Care Facilities: Provides infection control for patients requiring prolonged ventilation.

3. Pediatric and Neonatal Applications: Smaller filters available for pediatric and neonatal patients.

4. Emergency Ventilation: Used in emergency settings for temporary ventilation support.

5. Pulmonary Function Testing: Filters used to prevent cross-contamination during testing.

6. Nebulizer Circuits: Provides filtration during aerosolized medication delivery.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A high-efficiency filter for removing bacteria and viruses from respiratory gases.
Designation: Bacterial Filter, Breathing Circuit Filter, Ventilator Filter, Anesthesia Filter, HEPA Filter.
Key Components:
- Filter Housing: Plastic casing with standard connectors.
- Filter Media: High-efficiency filtration material.
- Connectors: Standard 15 mm and 22 mm connectors.
- Port: Optional sampling port for gas analysis.
- Port Covers: Sterile packaging with protective covers.

2. TECHNICAL & PERFORMANCE PROPERTIES

Filtration Efficiency: >99.9% for bacteria; >99.9% for viruses.
Filter Media: Hydrophobic, electrostatic or mechanical filtration.
Dead Space: 20-50 mL depending on model.
Resistance: <2-5 cm H₂O at 60 L/min flow.
Weight: 20-50 grams.
Connector Sizes: 15 mm and 22 mm ISO connectors.
Duration: Up to 24-48 hours depending on model and clinical use.

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Lightweight plastic housing with filter media.
Transparency: Translucent for visualization of secretions.
Connectors: Standard 15 mm and 22 mm ISO connectors.
Packaging: Sterile, single-use; individually packaged.
Ports: Optional sampling port for gas monitoring.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Class II medical device regulated by FDA.
Biocompatibility: Materials safe for airway contact.
Latex-Free: Manufactured without natural rubber latex.
Filtration Standards: Meets ASTM and ISO filtration standards.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in a clean, dry location at room temperature; protect from moisture.
Sterility Maintenance: Do not use it if the package is opened, damaged, or wet.
Expiration: Check expiration date before use; do not use after expiration.
Single-Use Only: Intended for single patient use only; do not resterilize or reuse.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Filtration of bacteria and viruses in mechanical ventilation and anesthesia circuits.
Clinical Role: Essential equipment in intensive care units, operating rooms, and respiratory care settings.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Contraindications: Do not use if the filter becomes wet or occluded; replace immediately.
Monitoring: Monitor for increased airway resistance or secretion retention.
Replacement: Replace filter when visibly soiled, when resistance increases, or per protocol.
Circuit Integration: Place between patient Y-piece and ventilator circuit.
Sampling Port: Use port for gas sampling if needed; cap when not in use.
Single-Use: Do not reuse or resterilize.

2. FIRST AID MEASURES

Obstruction: If increased resistance is noted, replace the filter immediately.
Contamination: If contaminated with blood or secretions, replace immediately.
Wet Filter: If filter becomes wet, replace immediately; wet filters lose filtration efficiency.

3. FIRE FIGHTING MEASURES

Flammability: Plastic components are combustible; an oxygen-enriched environment increases fire risk.
Extinguishing Media: For fire, disconnect oxygen source; use appropriate extinguisher.

Bacterial Filters

Bacterial Filters

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Protection Against Cross-Contamination in Ventilation Circuits

Primary Use: Provides high-efficiency filtration of bacteria, viruses, and other microorganisms from inspired and expired gases in mechanical ventilation and anesthesia circuits. The filter prevents pathogen transmission between patients, the circuit, and the environment.

2. Protection of Ventilator Equipment

Primary Use: Prevents contamination of ventilator internal components by filtering bacteria and viruses from exhaled gas, protecting sensitive equipment and reducing the risk of cross-contamination between patients.

3. Infection Control in Anesthesia Circuits

Primary Use: Used in anesthesia circuits to filter both inspired and expired gases, protecting the anesthesia machine from contamination and preventing transmission of pathogens between patients.

How it helps: For the anesthesia department and sterile processing team, bacterial filters simplify infection control protocols—reducing the need for circuit disinfection between cases. For the patient undergoing anesthesia, this ensures a clean, protected airway circuit for each procedure.

4. Protection for Immunocompromised Patients

Primary Use: Provides critical protection for immunocompromised patients who are at increased risk of healthcare-associated infections, filtering both the gas delivered to the patient and the gas exhaled from the patient.

5. Prevention of Circuit Contamination During Transport

Primary Use: Used during patient transport to prevent contamination of portable ventilators and to protect both the patient and transport equipment from cross-contamination.

How it helps: For the transport team, bacterial filters simplify infection control during transport—allowing ventilators to be used on multiple patients with appropriate filtration. For the patient being transported, this ensures continuous protection against circuit-acquired infections.

SECONDARY & SUPPORTIVE USES

1. Home Ventilation: Used in home ventilators to protect equipment and patient.

2. Long-Term Care Facilities: Provides infection control for patients requiring prolonged ventilation.

3. Pediatric and Neonatal Applications: Smaller filters available for pediatric and neonatal patients.

4. Emergency Ventilation: Used in emergency settings for temporary ventilation support.

5. Pulmonary Function Testing: Filters used to prevent cross-contamination during testing.

6. Nebulizer Circuits: Provides filtration during aerosolized medication delivery.

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A high-efficiency filter for removing bacteria and viruses from respiratory gases.

Designation: Bacterial Filter, Breathing Circuit Filter, Ventilator Filter, Anesthesia Filter, HEPA Filter.

Key Components:

Filter Housing: Plastic casing with standard connectors.

Filter Media: High-efficiency filtration material.

Connectors: Standard 15 mm and 22 mm connectors.

Port: Optional sampling port for gas analysis.

Port Covers: Sterile packaging with protective covers.

2. TECHNICAL & PERFORMANCE PROPERTIES

Filtration Efficiency: >99.9% for bacteria; >99.9% for viruses.

Filter Media: Hydrophobic, electrostatic or mechanical filtration.

Dead Space: 20-50 mL depending on model.

Resistance: <2-5 cm H₂O at 60 L/min flow.

Weight: 20-50 grams.

Connector Sizes: 15 mm and 22 mm ISO connectors.

Duration: Up to 24-48 hours depending on model and clinical use.

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Lightweight plastic housing with filter media.

Transparency: Translucent for visualization of secretions.

Connectors: Standard 15 mm and 22 mm ISO connectors.

Packaging: Sterile, single-use; individually packaged.

Ports: Optional sampling port for gas monitoring.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Class II medical device regulated by FDA.

Biocompatibility: Materials safe for airway contact.

Latex-Free: Manufactured without natural rubber latex.

Filtration Standards: Meets ASTM and ISO filtration standards.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in a clean, dry location at room temperature; protect from moisture.

Sterility Maintenance: Do not use it if the package is opened, damaged, or wet.

Expiration: Check expiration date before use; do not use after expiration.

Single-Use Only: Intended for single patient use only; do not resterilize or reuse.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Filtration of bacteria and viruses in mechanical ventilation and anesthesia circuits.

Clinical Role: Essential equipment in intensive care units, operating rooms, and respiratory care settings.

1. SAFETY PRECAUTIONS

Contraindications: Do not use if the filter becomes wet or occluded; replace immediately.

Monitoring: Monitor for increased airway resistance or secretion retention.

Replacement: Replace filter when visibly soiled, when resistance increases, or per protocol.

Circuit Integration: Place between patient Y-piece and ventilator circuit.

Sampling Port: Use port for gas sampling if needed; cap when not in use.

Single-Use: Do not reuse or resterilize.

2. FIRST AID MEASURES

Obstruction: If increased resistance is noted, replace the filter immediately.

Contamination: If contaminated with blood or secretions, replace immediately.

Wet Filter: If filter becomes wet, replace immediately; wet filters lose filtration efficiency.

3. FIRE FIGHTING MEASURES

Flammability: Plastic components are combustible; an oxygen-enriched environment increases fire risk.

Extinguishing Media: For fire, disconnect oxygen source; use appropriate extinguisher.
