An Electrophoresis Bath is a laboratory instrument used to separate charged molecules (proteins, nucleic acids) through a gel medium using an electric current, based on size and charge differences. Available in horizontal (submarine) formats for agarose gel electrophoresis of DNA/RNA and some proteins, and vertical formats for polyacrylamide gel electrophoresis (PAGE) of proteins. Constructed of polycarbonate or acrylic tanks with platinum or carbon electrodes, safety-interlocked lids, and buffer reservoirs (200-2,000 mL). Designed for use with external power supplies (100-500 V). Primary clinical applications include serum protein electrophoresis (SPEP) for diagnosis of multiple myeloma and monoclonal gammopathies, hemoglobin electrophoresis for sickle cell disease and thalassemias, urine protein electrophoresis for Bence Jones proteins, immunofixation electrophoresis (IFE) for monoclonal protein characterization, isoenzyme analysis (CK-MB, LDH) for myocardial infarction and liver disease, and DNA/RNA electrophoresis for molecular diagnostics. Essential equipment in clinical pathology, hematology, molecular diagnostics, and research laboratories requiring separation and analysis of proteins and nucleic acids for diagnostic and research purposes.

Category: LABORATORY EQUIPMENT AND SUPPLIES Tags: DNA Electrophoresis, Electrophoresis Bath, Electrophoresis Chamber, Gel Electrophoresis, Hemoglobin Electrophoresis, Horizontal Electrophoresis, Protein Electrophoresis, SPEP, Vertical Electrophoresis

Description

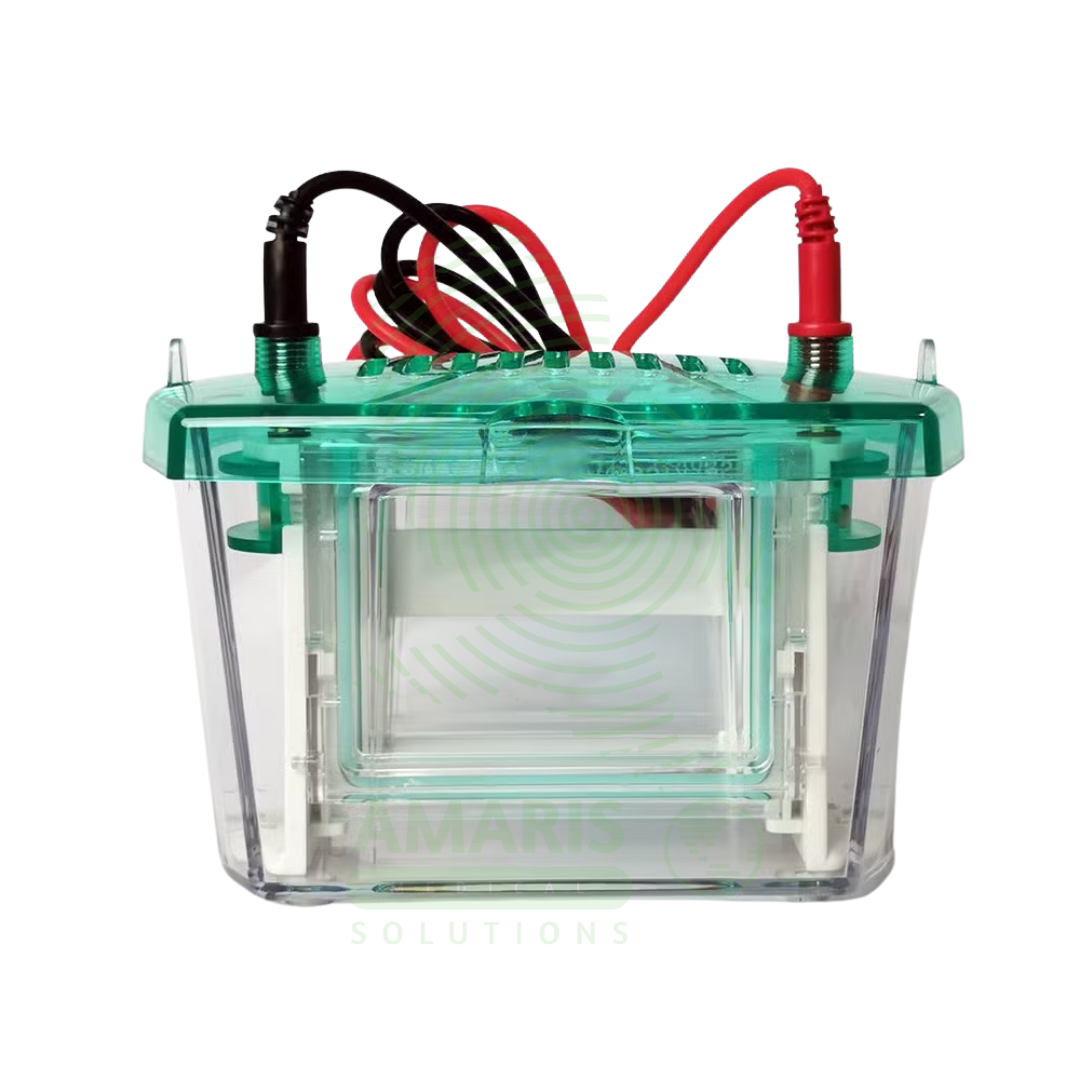

Electrophoresis Bath

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Serum Protein Electrophoresis (SPEP):

Primary Use: Electrophoresis baths are essential for separating serum proteins into albumin, alpha-1, alpha-2, beta, and gamma globulin fractions, aiding in diagnosis of multiple myeloma, monoclonal gammopathies, inflammatory conditions, and protein disorders.
How it helps: Reveals the distinctive patterns of protein abnormalities that signal cancer, inflammation, and other diseases, helping doctors identify multiple myeloma and other serious conditions before they cause severe symptoms.

2. Hemoglobin Electrophoresis for Hemoglobinopathies:

Primary Use: Used to separate and identify normal and abnormal hemoglobin variants (HbS, HbC, HbE, HbF, HbA2) for diagnosis of sickle cell disease, thalassemias, and other hemoglobin disorders.
How it helps: Detects the abnormal hemoglobin that causes sickle cell disease and thalassemia, providing families with answers about inherited blood disorders and guiding lifelong management.

3. Urine Protein Electrophoresis:

Primary Use: Employed to detect and quantify Bence Jones proteins and other abnormal proteins in urine for diagnosis and monitoring of multiple myeloma and other plasma cell dyscrasias.
How it helps: Finds the telltale protein fragments in urine that signal multiple myeloma, helping doctors diagnose and monitor treatment for this serious blood cancer.

4. Immunofixation Electrophoresis (IFE):

Primary Use: Used to confirm and characterize monoclonal proteins identified on SPEP, providing definitive diagnosis of monoclonal gammopathies including multiple myeloma, Waldenström’s macroglobulinemia, and MGUS.
How it helps: Confirms whether a suspicious protein band is truly a monoclonal protein and identifies exactly what type, guiding diagnosis and treatment decisions for patients with plasma cell disorders.

5. Lipoprotein Electrophoresis:

Primary Use: Separates lipoproteins into chylomicrons, VLDL, LDL, and HDL fractions for assessment of dyslipidemias and cardiovascular risk in specialized lipid laboratories.
How it helps: Provides detailed information about different types of cholesterol in the blood, helping doctors identify patients at risk for heart disease who might be missed by standard cholesterol tests.

6. Isoenzyme Analysis:

Primary Use: Used for separation of creatine kinase (CK-MB), lactate dehydrogenase (LDH) isoenzymes, and alkaline phosphatase isoenzymes for diagnosis of myocardial infarction, liver disease, and bone disorders.
How it helps: Pinpoints the exact source of elevated enzymes in the blood—whether from heart muscle during a heart attack, from the liver in hepatitis, or from bone in Paget’s disease—guiding rapid, accurate diagnosis.

7. DNA and RNA Electrophoresis:

Primary Use: Employed in molecular diagnostics for separation of DNA fragments, PCR products, and RNA samples for genetic testing, infectious disease diagnostics, and research applications.
How it helps: Allows scientists and clinicians to see and measure the genetic material that holds the secrets of inherited diseases, infections, and cancer, enabling personalized diagnosis and treatment.

SECONDARY & SUPPORTIVE USES

1. Research and Molecular Biology: Used in research laboratories for nucleic acid analysis, protein studies, and proteomics research, advancing our understanding of disease at the molecular level.

2. Veterinary Diagnostics: Serum and hemoglobin electrophoresis for animal health applications, extending diagnostic capabilities to veterinary patients.

3. Forensic DNA Analysis: Separation of DNA fragments for forensic identification and paternity testing, helping solve crimes and establish family relationships.

4. Pharmaceutical Quality Control: Analysis of protein-based pharmaceuticals and biosimilars, ensuring the safety and effectiveness of biologic medications.

5. Educational and Teaching Laboratories: Teaching electrophoresis principles and techniques in medical and graduate education, training the next generation of scientists and clinicians.

6. Food Science and Quality Control: Protein analysis in food products and authenticity testing, ensuring food quality and safety.

7. Biotechnology and Bioprocessing: Monitoring of protein products during manufacturing and purification, supporting the production of life-saving biologic drugs.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Product Type: Laboratory instrument that uses electric current to separate charged molecules (proteins, nucleic acids) through a gel medium based on size and charge.
Common Names: Electrophoresis Bath, Electrophoresis Apparatus, Electrophoresis Chamber, Gel Electrophoresis System, Horizontal Electrophoresis Cell, Vertical Electrophoresis System, Submarine Electrophoresis Unit.
Electrophoresis Types:
- Horizontal (Submarine) Electrophoresis: Gel submerged in buffer; used for agarose gel electrophoresis of DNA, RNA, and some proteins.
- Vertical Electrophoresis: Gel positioned vertically; used for polyacrylamide gel electrophoresis (PAGE) of proteins.
Gel Types:
- Agarose Gels: For DNA/RNA separation and larger proteins.
- Polyacrylamide Gels: For higher resolution protein separation (SDS-PAGE, native PAGE).
- Cellulose Acetate: For serum protein and hemoglobin electrophoresis.
- Agarose for Immunofixation: Specialized gels for IFE.
Components:
- Electrophoresis Tank/Chamber: Buffer reservoir with electrodes.
- Gel Tray/Casting Tray: Holds gel during casting and electrophoresis.
- Sample Combs: Create wells in gel for sample loading.
- Electrodes: Platinum or carbon electrodes (anode and cathode).
- Safety Lid: Interlocked lid to prevent electrical shock during operation.
- Power Cables: Connect to power supply.
Buffer Capacity: 200-2,000 mL depending on chamber size.
Gel Size: 5×5 cm to 25×25 cm depending on application.
Sample Capacity: 10-100+ samples per run depending on comb configuration.

2. TECHNICAL & PERFORMANCE PROPERTIES

Maximum Voltage: 100-500 V depending on chamber design (power supply is separate).
Maximum Current: 100-500 mA depending on chamber design.
Electrode Material: Platinum (premium) or carbon (economical).
Buffer Recirculation: Some systems include buffer recirculation ports for even ion distribution.
Heat Dissipation: Built-in heat exchangers or buffer recirculation for high-voltage runs.
Gel Casting: Integrated casting system or separate casting trays.
Well Format: 8, 10, 12, 15, or 20 wells standard; multichannel pipette compatible formats available.
Resolution: Depends on gel type, voltage, and buffer system; capable of single-base resolution for DNA sequencing.
Run Time: 30 minutes to several hours depending on application and voltage.
Buffer Cooling: Some systems include cooling plates or buffer cooling for protein electrophoresis.

3. PHYSICAL & OPERATIONAL PROPERTIES

Dimensions (Horizontal): 30-50 cm L × 15-30 cm W × 5-15 cm H.
Dimensions (Vertical): 20-30 cm L × 15-25 cm W × 15-25 cm H.
Weight: 2-10 kg depending on size and materials.
Construction Materials:
- Tank: Polycarbonate, acrylic, or UV-transparent plastic.
- Electrodes: Platinum wire or carbon rods.
- Gel Trays: UV-transparent plastic for DNA visualization.
- Lid: Safety-interlocked polycarbonate.
Color Coding: Red for anode (+), black for cathode (-) standard.
Cable Connections: Standard banana plugs or specialized connectors.
Safety Interlock: Lid must be properly seated to complete circuit; prevents shock.
Leveling Feet: Adjustable feet for leveling on the work surface.
Certifications: CE marked; meets laboratory safety standards.

4. SAFETY & COMPLIANCE ATTRIBUTES

Electrical Safety: Designed for use with compatible power supplies; safety interlock on lid prevents operation when open.
Buffer Hazards: Electrophoresis buffers may contain hazardous materials (TBE, TAE, Tris-glycine, MOPS); follow chemical safety protocols.
Chemical Safety: Acrylamide (for PAGE) is a neurotoxin; handle with care; use PPE.
UV Safety: If using UV-transparent gels, UV light may be used for visualization; use UV-protective shields or eyewear.
Heat Generation: High-voltage runs generate heat; ensure proper cooling to prevent gel melting.
Stability: Place on level, stable surface to prevent tipping.
Spill Management: Electrophoresis buffers can damage equipment and create slip hazards; clean spills immediately.
Ethidium Bromide: Common DNA stain is mutagenic; handle with care and dispose properly.
Quality Management: Manufactured under ISO 9001 certified processes.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store clean and dry; protect from UV light (can degrade plastics); avoid stacking heavy items on top.
Cleaning: Rinse thoroughly with deionized water after each use; remove buffer residues that can corrode electrodes.
Electrode Care: Inspect electrodes regularly for corrosion or damage; clean with soft brush if needed.
Gel Trays and Combs: Clean after use; remove residual agarose or polyacrylamide; store in dust-free container.
Buffer Disposal: Dispose of used buffers according to institutional hazardous waste guidelines.
Inspection: Check for cracks in tank or lid; verify electrode integrity; test safety interlock function.
Annual Maintenance: Professional inspection recommended for high-use systems.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Separation of proteins and nucleic acids for clinical diagnosis and research.
Clinical Protein Applications:
- Serum Protein Electrophoresis (SPEP): 5-7 samples per gel; run time 30-60 minutes; visualizes albumin and globulin fractions.
- Immunofixation Electrophoresis (IFE): 2-4 samples per gel; identifies monoclonal proteins.
- Hemoglobin Electrophoresis: Separates HbA, HbA2, HbF, HbS, HbC; critical for hemoglobinopathy diagnosis.
- Urine Protein Electrophoresis: Concentrated urine samples; detects Bence Jones proteins.
- CK Isoenzymes: CK-MM (skeletal muscle), CK-MB (cardiac), CK-BB (brain); for MI diagnosis.
- LDH Isoenzymes: LDH1-5 patterns for tissue-specific injury assessment.
Clinical Nucleic Acid Applications:
- PCR Product Analysis: Confirm amplification and size of PCR products.
- RFLP Analysis: Restriction fragment length polymorphism for genetic testing.
- DNA Fragment Analysis: Sizing of DNA fragments for molecular diagnostics.
- RNA Analysis: Assessing RNA integrity before Northern blot or RT-PCR.
Hemoglobinopathy Diagnosis:
- Sickle Cell Disease: Presence of HbS; quantification of HbS, HbF, HbA2.
- Thalassemia: Elevated HbA2 (β-thalassemia trait) or HbF (β-thalassemia major).
- HbC Disease: Detection of HbC variant.
Monoclonal Gammopathy Diagnosis:
- Multiple Myeloma: Monoclonal spike (M-spike) in gamma region; confirmed by IFE.
- MGUS: Small monoclonal spike without end-organ damage.
- Waldenström's Macroglobulinemia: IgM monoclonal gammopathy.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Electrical Safety: Never operate with lid open; ensure power supply is off before connecting/disconnecting cables; use only with compatible power supplies.
Chemical Hazards: Acrylamide (neurotoxin), ethidium bromide (mutagen), and electrophoresis buffers may be hazardous; use PPE (gloves, lab coat, eye protection); work in fume hood for acrylamide.
Heat Management: High-voltage runs generate heat; monitor for overheating; use cooling if available.
Buffer Handling: Avoid spills; clean immediately; dispose properly.
UV Safety: If using UV transilluminator with UV-transparent gels, use UV-protective face shield or safety glasses.
Glassware: Use caution with glass plates (vertical electrophoresis); they can break and cause cuts.
Training: Users should be trained on specific electrophoresis techniques and hazards.
First Aid: Know location of eyewash and safety shower.

2. FIRST AID MEASURES

Electrical Shock: Disconnect power; do not touch victim if still in contact with electrical source; call emergency services; begin CPR if trained.
Chemical Splash (Eye): Flush eyes with copious water for 15 minutes; seek medical attention.
Chemical Splash (Skin): Wash affected area with soap and water; remove contaminated clothing.
Acrylamide Exposure: If skin contact, wash thoroughly; if ingested, seek immediate medical attention.
Ethidium Bromide Exposure: Wash skin thoroughly; if eye contact, flush with water; seek medical attention.
Buffer Spill: Contain and absorb; dispose as hazardous waste per institutional policy.

3. FIRE FIGHTING MEASURES

Flammability: Plastic components are combustible; buffers are typically aqueous and non-flammable.
Extinguishing Media: Use CO₂, dry chemical, or foam for surrounding fire.
Power Off: Disconnect power if safe to do so.

Electrophoresis Bath

Electrophoresis Bath

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Serum Protein Electrophoresis (SPEP):

Primary Use: Electrophoresis baths are essential for separating serum proteins into albumin, alpha-1, alpha-2, beta, and gamma globulin fractions, aiding in diagnosis of multiple myeloma, monoclonal gammopathies, inflammatory conditions, and protein disorders.

How it helps: Reveals the distinctive patterns of protein abnormalities that signal cancer, inflammation, and other diseases, helping doctors identify multiple myeloma and other serious conditions before they cause severe symptoms.

2. Hemoglobin Electrophoresis for Hemoglobinopathies:

Primary Use: Used to separate and identify normal and abnormal hemoglobin variants (HbS, HbC, HbE, HbF, HbA2) for diagnosis of sickle cell disease, thalassemias, and other hemoglobin disorders.

How it helps: Detects the abnormal hemoglobin that causes sickle cell disease and thalassemia, providing families with answers about inherited blood disorders and guiding lifelong management.

3. Urine Protein Electrophoresis:

Primary Use: Employed to detect and quantify Bence Jones proteins and other abnormal proteins in urine for diagnosis and monitoring of multiple myeloma and other plasma cell dyscrasias.

How it helps: Finds the telltale protein fragments in urine that signal multiple myeloma, helping doctors diagnose and monitor treatment for this serious blood cancer.

4. Immunofixation Electrophoresis (IFE):

Primary Use: Used to confirm and characterize monoclonal proteins identified on SPEP, providing definitive diagnosis of monoclonal gammopathies including multiple myeloma, Waldenström’s macroglobulinemia, and MGUS.

How it helps: Confirms whether a suspicious protein band is truly a monoclonal protein and identifies exactly what type, guiding diagnosis and treatment decisions for patients with plasma cell disorders.

5. Lipoprotein Electrophoresis:

Primary Use: Separates lipoproteins into chylomicrons, VLDL, LDL, and HDL fractions for assessment of dyslipidemias and cardiovascular risk in specialized lipid laboratories.

How it helps: Provides detailed information about different types of cholesterol in the blood, helping doctors identify patients at risk for heart disease who might be missed by standard cholesterol tests.

6. Isoenzyme Analysis:

Primary Use: Used for separation of creatine kinase (CK-MB), lactate dehydrogenase (LDH) isoenzymes, and alkaline phosphatase isoenzymes for diagnosis of myocardial infarction, liver disease, and bone disorders.

How it helps: Pinpoints the exact source of elevated enzymes in the blood—whether from heart muscle during a heart attack, from the liver in hepatitis, or from bone in Paget’s disease—guiding rapid, accurate diagnosis.

7. DNA and RNA Electrophoresis:

Primary Use: Employed in molecular diagnostics for separation of DNA fragments, PCR products, and RNA samples for genetic testing, infectious disease diagnostics, and research applications.

How it helps: Allows scientists and clinicians to see and measure the genetic material that holds the secrets of inherited diseases, infections, and cancer, enabling personalized diagnosis and treatment.

SECONDARY & SUPPORTIVE USES

1. Research and Molecular Biology: Used in research laboratories for nucleic acid analysis, protein studies, and proteomics research, advancing our understanding of disease at the molecular level.

2. Veterinary Diagnostics: Serum and hemoglobin electrophoresis for animal health applications, extending diagnostic capabilities to veterinary patients.

3. Forensic DNA Analysis: Separation of DNA fragments for forensic identification and paternity testing, helping solve crimes and establish family relationships.

4. Pharmaceutical Quality Control: Analysis of protein-based pharmaceuticals and biosimilars, ensuring the safety and effectiveness of biologic medications.

5. Educational and Teaching Laboratories: Teaching electrophoresis principles and techniques in medical and graduate education, training the next generation of scientists and clinicians.

6. Food Science and Quality Control: Protein analysis in food products and authenticity testing, ensuring food quality and safety.

7. Biotechnology and Bioprocessing: Monitoring of protein products during manufacturing and purification, supporting the production of life-saving biologic drugs.

1. BASIC IDENTIFICATION ATTRIBUTES

Product Type: Laboratory instrument that uses electric current to separate charged molecules (proteins, nucleic acids) through a gel medium based on size and charge.

Common Names: Electrophoresis Bath, Electrophoresis Apparatus, Electrophoresis Chamber, Gel Electrophoresis System, Horizontal Electrophoresis Cell, Vertical Electrophoresis System, Submarine Electrophoresis Unit.

Electrophoresis Types:

Horizontal (Submarine) Electrophoresis: Gel submerged in buffer; used for agarose gel electrophoresis of DNA, RNA, and some proteins.

Vertical Electrophoresis: Gel positioned vertically; used for polyacrylamide gel electrophoresis (PAGE) of proteins.

Gel Types:

Agarose Gels: For DNA/RNA separation and larger proteins.

Polyacrylamide Gels: For higher resolution protein separation (SDS-PAGE, native PAGE).

Cellulose Acetate: For serum protein and hemoglobin electrophoresis.

Agarose for Immunofixation: Specialized gels for IFE.

Components:

Electrophoresis Tank/Chamber: Buffer reservoir with electrodes.

Gel Tray/Casting Tray: Holds gel during casting and electrophoresis.

Sample Combs: Create wells in gel for sample loading.

Electrodes: Platinum or carbon electrodes (anode and cathode).

Safety Lid: Interlocked lid to prevent electrical shock during operation.

Power Cables: Connect to power supply.

Buffer Capacity: 200-2,000 mL depending on chamber size.

Gel Size: 5×5 cm to 25×25 cm depending on application.

Sample Capacity: 10-100+ samples per run depending on comb configuration.

2. TECHNICAL & PERFORMANCE PROPERTIES

Maximum Voltage: 100-500 V depending on chamber design (power supply is separate).

Maximum Current: 100-500 mA depending on chamber design.

Electrode Material: Platinum (premium) or carbon (economical).

Buffer Recirculation: Some systems include buffer recirculation ports for even ion distribution.

Heat Dissipation: Built-in heat exchangers or buffer recirculation for high-voltage runs.

Gel Casting: Integrated casting system or separate casting trays.

Well Format: 8, 10, 12, 15, or 20 wells standard; multichannel pipette compatible formats available.

Resolution: Depends on gel type, voltage, and buffer system; capable of single-base resolution for DNA sequencing.

Run Time: 30 minutes to several hours depending on application and voltage.

Buffer Cooling: Some systems include cooling plates or buffer cooling for protein electrophoresis.

3. PHYSICAL & OPERATIONAL PROPERTIES

Dimensions (Horizontal): 30-50 cm L × 15-30 cm W × 5-15 cm H.

Dimensions (Vertical): 20-30 cm L × 15-25 cm W × 15-25 cm H.

Weight: 2-10 kg depending on size and materials.

Construction Materials:

Tank: Polycarbonate, acrylic, or UV-transparent plastic.

Electrodes: Platinum wire or carbon rods.

Gel Trays: UV-transparent plastic for DNA visualization.

Lid: Safety-interlocked polycarbonate.

Color Coding: Red for anode (+), black for cathode (-) standard.

Cable Connections: Standard banana plugs or specialized connectors.

Safety Interlock: Lid must be properly seated to complete circuit; prevents shock.

Leveling Feet: Adjustable feet for leveling on the work surface.

Certifications: CE marked; meets laboratory safety standards.

4. SAFETY & COMPLIANCE ATTRIBUTES

Electrical Safety: Designed for use with compatible power supplies; safety interlock on lid prevents operation when open.
