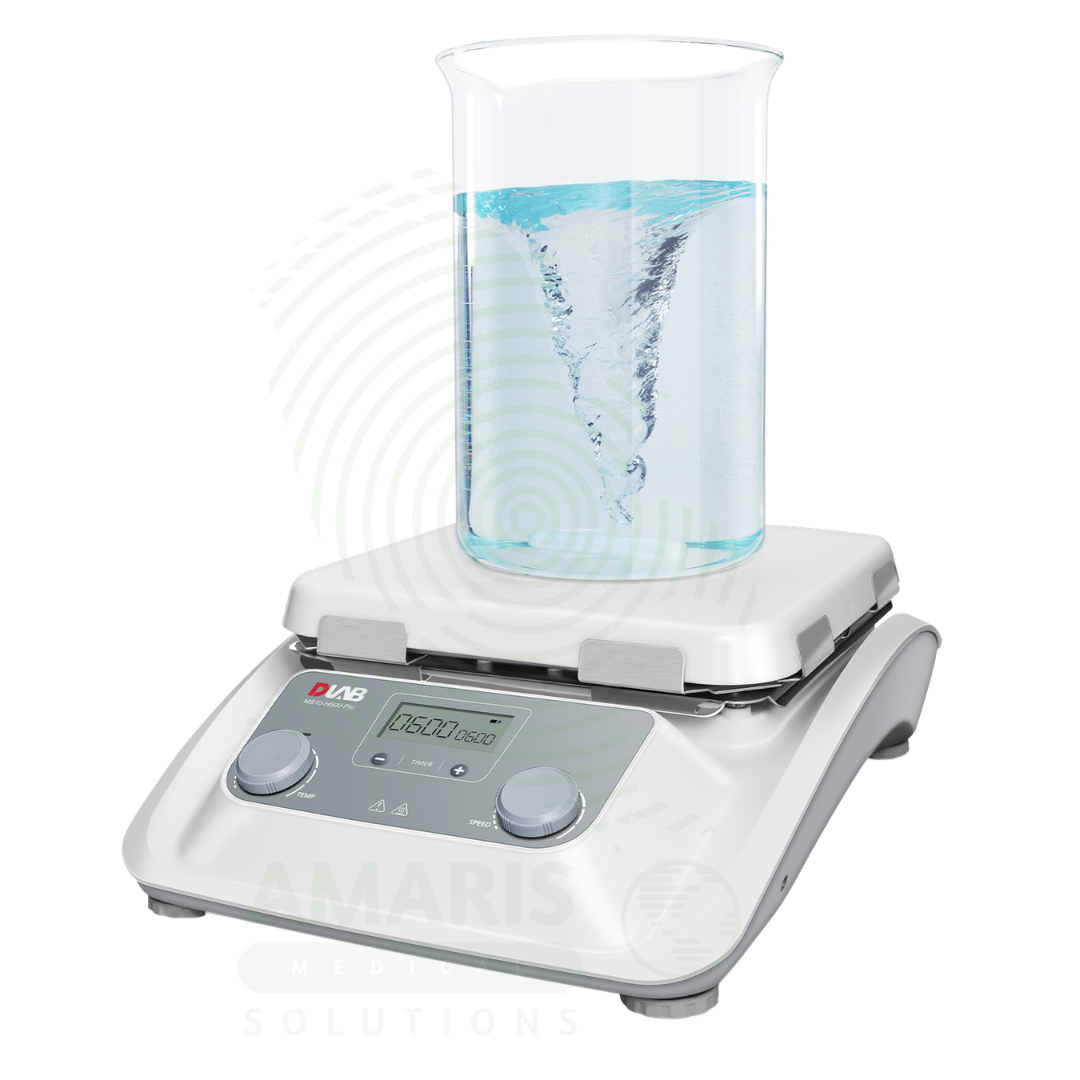

LCD Digital Hotplate Magnetic Stirrer (MS10‑H500‑Pro)

1. SAFETY PRECAUTIONS

• Burn Hazard — Hot Plate Surface: The glass ceramic work plate can reach 500 °C and remains dangerously hot for an extended period after the power is turned off. Do not touch the work plate for at least 30‑60 minutes after use, or until the residual heat “HOT” indicator has stopped flashing. Use appropriate heat‑resistant gloves or tools when handling vessels on the hot plate. Severe burns can occur upon contact.

• Residual Heat Warning — Continues Even When Off: The “HOT” safety indicator activates when the work plate exceeds 50 °C and continues flashing on the display even after the unit is turned off (if still connected to mains). This critical safety feature is independent of the main power switch and alerts users to a dangerously hot surface until the plate is safe to touch (temperature drops below 50 °C). Always verify that the “HOT” indicator has stopped flashing before touching the plate.

• Fire Hazard — Avoid Flammable Materials: Do not operate the hotplate stirrer near flammable materials, volatile solvents, combustible gases, or paper products. Keep the work area clear of flammable substances. The heating temperature must be set at least 50 °C lower than the ignition point of the chemicals being used. Do not leave the instrument unattended while operating at high temperatures without appropriate safety protocols. The independent safety circuit (540 °C cut‑off) provides backup protection but should not replace operator vigilance.

• Over‑temperature Protection — Dual Independent Safety Circuits: The instrument has dual independent safety circuits (two independent temperature probes) that continuously monitor the device. If the work plate exceeds 540 °C or a built‑in sensor malfunctions, the unit stops heating, displays an error message, and may sound an audible alarm. If the first safety circuit fails and a short‑circuit is detected, the second safety circuit cuts off the power supply to ensure operator safety.

• Electrical Safety — Proper Grounding: Do not operate the instrument with wet hands. Ensure the mains power cable does not come into contact with liquids or sharp edges that could damage the insulation. Use only the supplied grounded power cord and ensure the outlet provides proper grounding. Disconnect the power cord before cleaning, servicing, or moving the unit. Do not operate if the power cord is damaged. The IP21 rating offers basic protection against vertically falling water drops, but does not protect against immersion or significant liquid spills.

• Magnetic Field Interference — Medical Devices: The stirrer contains strong permanent magnets. People with implanted medical devices (e.g., pacemakers, implantable cardioverter‑defibrillators, neurostimulators) should keep a safe distance of at least 30 cm from the operating stirrer. Do not place the instrument near credit cards, hard drives, computer monitors, or other magnetic‑sensitive equipment.

• Vessel and Stir Bar Selection: Use only flat‑bottomed vessels (beakers, Erlenmeyer flasks, crystallising dishes) that sit flush on the glass ceramic work plate. Ensure the magnetic stir bar is in good condition without chips, cracks, or deformities and is properly centred in the vessel before starting. Do not exceed the maximum stir bar length of 80 mm for the 30 litre capacity.

• Start Slowly (Smooth Start): Always start stirring at a low speed (100‑200 rpm) and gradually increase to the desired level. A sudden high‑speed start may cause the stir bar to decouple, spin erratically, or strike the vessel wall, leading to splashing, spillage, or vessel breakage.

• Chemical Compatibility — Glass Ceramic Surface: The glass ceramic work plate is resistant to strong acids, strong alkalis, and organic solvents. However, prolonged exposure to some concentrated mineral acids (e.g., hydrofluoric acid, concentrated sulfuric acid) or aggressive reagents may degrade the surface. Clean spills promptly. Refer to the Safety Data Sheet (SDS) for specific chemicals. Never heat sealed vessels or containers that cannot vent pressure, as explosion may result.

• Spill Management — Prevent Liquids Entering Housing: If a liquid spill occurs on the work plate during operation, turn off the heating and stirring functions immediately. Unplug the unit, allow the plate to cool (if heated), and wipe the spill clean with a soft, damp cloth. Do not let liquids seep under the work plate or into the housing. The IP21 rating does not protect against pooling liquids or immersion.

• Operating Environment — Clean, Stable Benchtop: Use the LCD Digital Hotplate Magnetic Stirrer (MS10‑H500‑Pro) indoors only, on a stable, level, non‑flammable laboratory benchtop. Do not use in explosive atmospheres or in the presence of flammable gases or vapours. The permissible ambient temperature range is 5‑40 °C with relative humidity not exceeding 80 %. Allow at least 10 cm clearance on all sides for proper heat dissipation and ventilation. Do not cover the instrument during operation.

• External PT1000 Sensor Safety — Secure Placement: When using the optional PT1000 external temperature sensor, insert the sensor probe into the sample vessel and secure it with a suitable stand and clamp. Do not allow the sensor cable to contact the hot work plate, as this may melt the wire insulation and cause sensor failure, electrical hazard, or burns. If any abnormal situation is detected (e.g., sensor failure or disconnection, indicated by an error code on the display), the heating mode will automatically shut down as a safety precaution. Always inspect the sensor cable for damage before use.

• SD Card Data Logging — Proper Handling: Insert or remove the SD card only when the unit is powered off to prevent data corruption. Do not use damaged or unformatted SD cards. Back up logged data regularly to a secure computer system.

• Cleaning and Maintenance — Safe Cleaning Protocols: Unplug the unit and allow the work plate to cool completely (verify “HOT” indicator has stopped flashing) before cleaning. Wipe the glass ceramic work plate and the die‑cast aluminium housing with a soft, damp cloth using a mild laboratory detergent or 70 % isopropyl alcohol. Do not immerse the unit in liquid. Do not use abrasive cleaners, metal scouring pads, or sharp objects that could scratch the glass ceramic coating. The brushless DC motor requires no routine maintenance, but periodically inspect the power cord and the condition of the work plate for signs of wear or chemical damage.

• Training Requirement — Qualified Users Only: Only trained laboratory personnel with appropriate technical background in hotplate stirrer operation should operate the LCD Digital Hotplate Magnetic Stirrer (MS10‑H500‑Pro) for clinical diagnostic or research applications. Users must read and understand the operator’s manual before first use. Laboratory managers should ensure all operators are aware of the proper procedure for starting and stopping stir bars, handling large‑volume reactions, and the specific safety considerations for heating and stirring hazardous materials at high temperatures.

2. FIRST AID MEASURES

• Burn from Hot Surface: If skin contacts the hot work plate or a hot vessel, immediately cool the burn area with cool (not cold) running water for at least 15 minutes. Do not apply ice directly. Remove any jewellery or constrictive items from the affected area. Cover the burn with a sterile, non‑adhesive dressing. Seek medical attention for large‑area burns (larger than the palm of the hand), deep burns (white or charred appearance), or burns causing blistering. For burns on the face, hands, feet, or genitals, seek immediate medical attention.

• Fire: If a fire occurs on or near the instrument, immediately turn off the power if safe to do so. Use a class ABC dry chemical fire extinguisher or carbon dioxide (CO₂) extinguisher. Do not use water on electrical fires. Evacuate the immediate area if the fire cannot be immediately controlled. Call emergency services.

• Chemical Splash to Eyes: If a heated chemical sample or reagent splashes into the eyes, immediately flush the eyes with copious amounts of cool water or sterile saline for at least 15 minutes. Hold the eyelids open to ensure thorough rinsing. Remove contact lenses if present and easily removable. Seek immediate medical attention. Do not attempt to neutralise the chemical in the eye.

• Chemical Splash to Skin: Remove contaminated clothing immediately. Flush the affected skin area with cool running water for at least 15 minutes. Do not rub or scrub. Seek medical evaluation for chemical burns or if irritation persists. Refer to the Safety Data Sheet (SDS) for the specific chemical involved.

• Inhalation of Fumes: If fumes from heated chemicals are inhaled, move the affected person to fresh air immediately. Keep the person warm and at rest. If breathing is difficult, administer oxygen if trained. If breathing stops, perform CPR. Seek immediate medical attention.

• Electrical Shock: If an electrical shock incident occurs, disconnect power at the circuit breaker before attempting to assist the victim. Do not touch the victim until the power is disconnected. Once safe, assess the victim for responsiveness and breathing. Call emergency medical services immediately. Perform CPR if trained and necessary. Seek medical evaluation for all electrical shock victims, even if symptoms appear mild.

3. FIRE FIGHTING MEASURES

• Flammability — Primary Fire Hazard is Heated Chemicals: The instrument’s fire‑resistant die‑cast aluminium housing is non‑flammable, but the power cord, internal wiring, electronic components, and plastic control elements are combustible. The glass ceramic work plate is non‑flammable. The primary fire hazard is the flammable chemicals, solvents, or materials being heated on the work plate.

• Extinguishing Media — Electrical Fires Require CO₂ or Dry Chemical: Use carbon dioxide (CO₂), dry chemical (ABC class), or alcohol‑resistant foam extinguishers for fires involving the electrical components or nearby flammable materials. Do not use water on electrical fires, as water conducts electricity and can cause electrical shock or damage the instrument.

• Fire Response — Isolate Power and Evacuate: Immediately disconnect power to the instrument at the circuit breaker if safe to do so. Evacuate the immediate area. Use an appropriate fire extinguisher for small, contained fires. For larger fires, evacuate the laboratory and call emergency services. Do not attempt to extinguish a fire if not trained or if the fire is spreading rapidly.

• Special Protective Equipment for Firefighters: Firefighters should wear self‑contained breathing apparatus (SCBA) and full structural firefighting gear (including gloves, boots, helmet, and turnout coat) when fighting fires in laboratory settings, as combustion products may include toxic fumes from burning plastics, chemicals, and electrical components.
