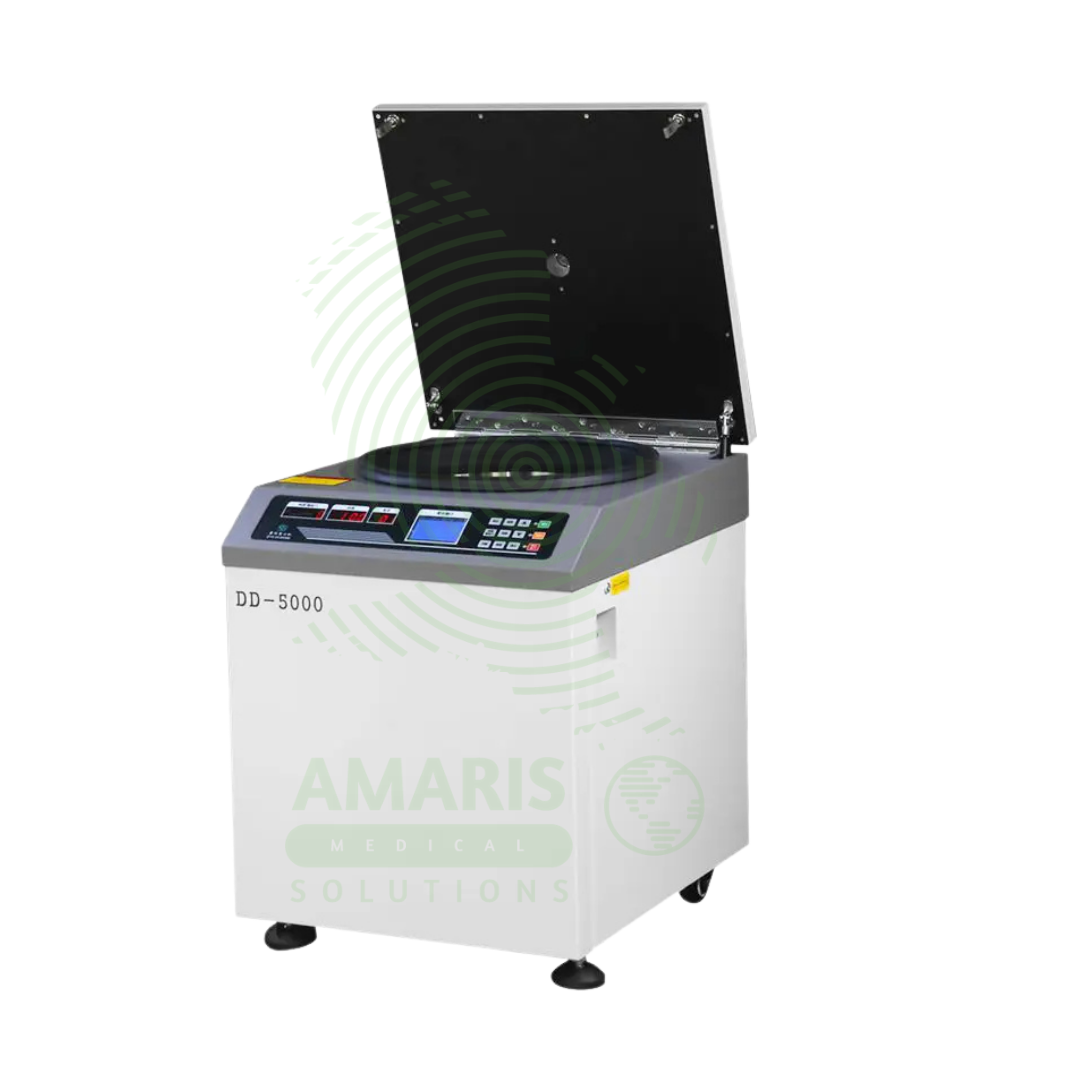

Low Speed Large Capacity Centrifuge

Name: Low Speed Large Capacity Centrifuge - Amaris Medical Solutions
Price: 1.00 USD
Availability: InStock

$1.00

WhatsApp Order

A Low Speed Large Capacity Centrifuge is a high-throughput laboratory instrument designed for processing multiple large-volume clinical samples simultaneously, with capacities up to 96 blood collection tubes, 32-64 conical tubes (15-50 mL), 4-8 centrifuge bottles (250-500 mL), and 4-16 microplates per run. Operating at speeds of 3,000-6,000 RPM with RCF up to 7,000 x g, these floor-standing or heavy benchtop units feature swinging-bucket, fixed-angle, and microplate rotors, programmable controls, imbalance detection, safety lid lock, and refrigerated options (-10°C to +40°C). Primary clinical applications include high-volume serum/plasma separation for clinical chemistry, urine sediment preparation for busy laboratories, blood bank and transfusion service processing, large-volume body fluid concentration, platelet-rich plasma (PRP) preparation for clinical procedures, coagulation testing sample preparation, and research/bioprocessing applications. Essential equipment for hospital laboratories, blood donor centers, reference laboratories, and research facilities requiring efficient, reliable processing of large sample volumes with consistent, reproducible results.

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Centrifuges and Separators, Lab Consumables Tags: Blood Bank Centrifuge, Clinical Centrifuge, Floor Standing Centrifuge, High Throughput Centrifuge, High Volume Centrifuge, Large Capacity Centrifuge, Multi-Purpose Centrifuge, Refrigerated Centrifuge

Description

Low Speed Large Capacity Centrifuge

PRIMARY CLINICAL & DIAGNOSTIC USES

1. High-Volume Blood Separation for Clinical Chemistry:

Primary Use: Large capacity centrifuges process multiple blood samples simultaneously (up to 4-16 blood collection tubes per run) for serum or plasma separation, enabling efficient processing of high-volume workloads in clinical laboratories for glucose, electrolytes, liver enzymes, and renal function testing.
How it helps: Keeps busy hospital laboratories running smoothly by processing dozens of samples at once, ensuring that doctors receive critical test results quickly without bottlenecks in the lab.

2. Urine Sediment Preparation for High-Volume Laboratories:

Primary Use: Concentrates cellular elements, casts, crystals, and microorganisms from multiple urine specimens simultaneously, enabling efficient microscopic examination for diagnosis of urinary tract infections and renal disorders in busy clinical settings.
How it helps: Allows high-volume labs to keep up with the constant stream of urine samples from clinics and emergency departments, ensuring timely diagnosis of urinary tract infections and kidney problems.

3. Blood Bank and Transfusion Service Processing:

Primary Use: Essential for preparing packed red blood cells, platelet concentrates, fresh frozen plasma, and cryoprecipitate from donated blood units, as well as processing multiple compatibility testing samples simultaneously.
How it helps: Maximizes the value of every blood donation by efficiently separating whole blood into life-saving components that can help multiple patients, from trauma victims to cancer patients.

4. Large-Volume Body Fluid Concentration:

Primary Use: Concentrates cells from large volumes of ascitic fluid, pleural fluid, pericardial fluid, and cerebrospinal fluid for cytological examination to detect malignant cells or assess for infection, processing multiple specimens per run.
How it helps: Gives pathologists concentrated samples from body fluids, improving the detection of cancer cells and infectious organisms that might otherwise be missed in dilute specimens.

5. Platelet-Rich Plasma (PRP) Preparation for Clinical Procedures:

Primary Use: Processes multiple blood samples simultaneously for PRP preparation used in regenerative medicine, orthopedic injections, and wound healing applications.
How it helps: Enables clinics offering PRP therapy to treat multiple patients efficiently, providing those with chronic pain and injuries access to this regenerative treatment.

6. Coagulation Testing Sample Preparation:

Primary Use: Prepares platelet-poor plasma from multiple blood samples simultaneously for coagulation studies including PT, APTT, and fibrinogen testing in high-volume laboratories.
How it helps: Ensures that patients on blood thinners and those with bleeding disorders receive timely test results, allowing their doctors to adjust medications and prevent dangerous clots or bleeding.

7. Research and Bioprocessing Applications:

Primary Use: Handles large volumes of cell cultures, bacterial suspensions, and biological materials for research, biopharmaceutical production, and vaccine development.
How it helps: Supports the large-scale research and production efforts that lead to new drugs, vaccines, and treatments, accelerating the pace of medical progress.

SECONDARY & SUPPORTIVE USES

1. Veterinary Diagnostic Laboratories: Processes multiple animal blood and urine specimens simultaneously for efficient laboratory operations, helping veterinarians care for pets and livestock.

2. Food Safety and Quality Control Laboratories: Concentrates pathogens from large volumes of food samples for microbiological analysis, helping prevent foodborne illness outbreaks.

3. Environmental Testing Laboratories: Processes multiple water samples simultaneously for analysis of microorganisms or chemical contaminants, protecting public health by ensuring safe drinking water.

4. Pharmaceutical Quality Control: Handles large batches of samples for product stability and purity testing, ensuring medications reaching patients are safe and effective.

5. Biotechnology and Vaccine Production: Essential for large-scale processing of cell cultures and biological materials, supporting the development and manufacturing of life-saving biologics.

6. Blood Donor Centers: Processes multiple blood donations simultaneously for component separation and testing, ensuring a safe and adequate blood supply for hospitals.

7. Clinical Research and Clinical Trials: Handles high-volume sample processing for multi-center studies and large research protocols, contributing to medical advances that benefit patients worldwide.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Product Type: High-capacity benchtop or floor-standing centrifuge designed for processing multiple large-volume samples simultaneously.
Common Names: Large Capacity Centrifuge, High-Capacity Centrifuge, Blood Bank Centrifuge, Multi-Purpose Centrifuge, Clinical Centrifuge (large capacity).
Rotor Types:
- Swinging-Bucket Rotor: Multiple buckets for processing various tube sizes simultaneously.
- Fixed-Angle Rotor: For higher RCF applications with large sample volumes.
- Plate Rotor: For centrifuging microplates and deep-well plates.
Rotor Capacity:
- Blood Tubes (3-10 mL): 16-96 tubes per run.
- 15 mL Conical Tubes: 16-64 tubes.
- 50 mL Conical Tubes: 8-32 tubes.
- 250 mL Bottles: 4-8 bottles.
- 500 mL Bottles: 4-6 bottles.
- Microplates: 4-16 plates.
Maximum Speed: 3,000-6,000 RPM typical.
Maximum RCF: 2,000-7,000 x g.
Tube Compatibility: Wide range including blood collection tubes, conical tubes, centrifuge bottles, microplates, and specialized containers.
Drive System: Brushless induction motor for quiet, maintenance-free operation.
Display: Digital LCD or LED with backlight showing speed, RCF, time, and program status.
Controls: Touchpad or rotary knob with programmable protocols.
Timing: Digital timer from 1-99 minutes or continuous run with hold function.
Program Memory: Stores multiple protocols for different applications and tube types.
Temperature Control: Refrigerated models available (4°C to ambient) for temperature-sensitive samples.
Acceleration/Deceleration: Programmable rates with multiple profiles for gentle or rapid separation.
Imbalance Detection: Automatic shutoff with sensitive imbalance detection for large loads.
Lid Lock: Heavy-duty automatic locking for safety during operation.

2. TECHNICAL & PERFORMANCE PROPERTIES

Speed Range: 500-6,000 RPM depending on model and rotor.
RCF Range: Up to 7,000 x g.
Rotor Options:
- Swinging-Bucket with Multiple Carriers: For various tube sizes.
- Fixed-Angle Rotors: For higher speed applications.
- Microplate Rotors: For 96-well, 384-well, and deep-well plates.
- Continuous Flow Rotors: For processing large volumes (select models).
Capacity Examples:
- Blood Tubes (5-10 mL): 48-96 tubes.
- 15 mL Conical: 32-64 tubes.
- 50 mL Conical: 16-32 tubes.
- 250 mL Bottles: 4-8 bottles.
- 500 mL Bottles: 4-6 bottles.
- Microplates: 4-16 plates.
Temperature Range (Refrigerated): -10°C to +40°C.
Acceleration/Deceleration Profiles: 9-10 programmable profiles.
Noise Level: 55-70 dB depending on model and speed.
Power Requirements: 100-240 VAC, 50/60 Hz.

3. PHYSICAL & OPERATIONAL PROPERTIES

Dimensions: 60-90 cm × 70-100 cm × 80-120 cm (floor-standing models larger).
Weight: 80-250 kg depending on model and refrigeration.
Construction: Heavy-duty steel exterior with durable finish; stainless steel bowl interior.
Display: Large digital LCD or LED with intuitive interface.
Rotor Exchange: Easy-change rotor system with automatic recognition.
Tube Adapters: Comprehensive adapter sets for various tube sizes.
Accessories: Tube racks, rotor exchange tools, spare parts kit, leveling feet.
Power Requirements: 100-240 VAC, 50/60 Hz, 10-15 amps.
Certifications: Meets relevant safety and quality standards for medical devices.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Class I medical device (FDA, CE marked for IVD use when used with IVD applications).
Safety Standards: Complies with IEC 61010-2-020 for safety requirements for centrifuges.
Imbalance Detection: Advanced imbalance detection system with automatic shutoff.
Lid Lock: Heavy-duty electromechanical lock prevents opening while rotor spinning.
Emergency Lid Release: Manual release with tool in case of power failure.
Over-speed Protection: Prevents operation above rotor's maximum rated speed.
Rotor Recognition: Automatic rotor identification for correct speed limits.
Biohazard Safety: Sealed rotors and aerosol-tight buckets available for infectious samples.
Quality Management: Manufactured under ISO 13485 or ISO 9001 certified processes.
CE Mark: Complies with European safety and EMC requirements.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store in clean, dry laboratory environment; avoid dust, humidity, and temperature extremes.
Installation: Place on rigid, level, non-flammable floor or heavy-duty bench; ensure adequate ventilation (especially refrigerated models). Professional installation recommended.
Cleaning: Regular cleaning of bowl, rotors, and buckets with mild detergent; disinfect with EPA-registered disinfectant if spills occur.
Rotor Care: Inspect regularly for corrosion, cracks, or white deposits. Clean and dry after each use. Annual professional inspection recommended.
Calibration: Annual speed and temperature (refrigerated models) calibration verification recommended.
Maintenance: Regular preventive maintenance per manufacturer schedule by qualified personnel.
Inspection: Daily visual inspection of rotor, buckets, and lid lock; check for unusual noise or vibration.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: High-volume processing of clinical samples for routine laboratory testing, blood banking, and research applications.
Typical Clinical Protocols:
- Serum/Plasma Separation: 3,000-4,000 RPM for 10-15 minutes.
- Urine Sediment: 400-600 x g for 5-10 minutes.
- Blood Bank Processing: 1,000-2,000 RPM for 5-15 minutes.
- Coagulation Plasma: 2,500-3,500 RPM for 10-15 minutes.
- PRP Preparation: 1,000-1,500 RPM for 10-15 minutes.
Sample Compatibility:
- Blood Collection Tubes: 3 mL, 5 mL, 7 mL, 10 mL (all major brands).
- Conical Tubes: 15 mL, 50 mL.
- Centrifuge Bottles: 250 mL, 500 mL.
- Microplates: 96-well, 384-well, deep-well.
- Blood Bags: Specialized blood bag centrifuges for donor processing.
Throughput: 50-500 samples per hour depending on application and rotor configuration.
RCF Calculation: RCF = 1.118 × 10⁻⁵ × r × RPM² (r = radius in cm).

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Balancing Loads: Critical with large capacity rotors. Balance tubes precisely by weight; use balance scale for accuracy. Imbalance can cause catastrophic rotor failure.
Rotor Capacity: Never exceed maximum rated sample volume or tube count for specific rotor.
Tube Compatibility: Use only tubes and bottles rated for the speed and RCF generated.
Rotor Inspection: Inspect rotors and buckets before each use for corrosion, cracks, or wear. Replace immediately if damaged.
Aerosol Safety: Use sealed buckets or aerosol-tight rotors for infectious samples (blood, body fluids, cultures).
Lid Lock: Never attempt to open the lid while the rotor is spinning; wait for complete stop.
Overloading: Never exceed rotor's maximum rated speed or sample weight.
Training: Only trained personnel should operate large capacity centrifuges.
Emergency Procedures: Know location and operation of emergency lid release.
Maintenance: Regular professional maintenance essential for safe operation.

2. FIRST AID MEASURES

Tube Breakage During Run: Stop centrifuge immediately. Do not open the lid for 30 minutes to allow aerosol settling. Wear full PPE (gloves, mask, eye protection, gown). Carefully remove broken tube fragments and contaminated materials. Disinfect rotor, buckets, and bowl thoroughly.
Major Rotor Failure: If rotor fails during operation (loud noise, severe vibration), stop immediately if safe. Evacuate area; do not open the lid for 30 minutes. Call for professional service; document incident.
Chemical Spill: Follow chemical spill protocol; use appropriate PPE and absorbent materials.
Biohazard Spill: Contain with absorbent material; disinfect area with 10% bleach solution; dispose as biohazard waste.
Electrical Malfunction: Disconnect power; do not use until serviced by qualified personnel.

3. FIRE FIGHTING MEASURES

Flammability: Electrical components and plastic parts combustible.
Extinguishing Media: For electrical fire, use CO₂ or dry chemical (Class C) extinguisher; water may be used for surrounding materials.
Power Off: Disconnect power if safe to do so.
Large Equipment: Consider access for firefighting; ensure clear area around equipment.
