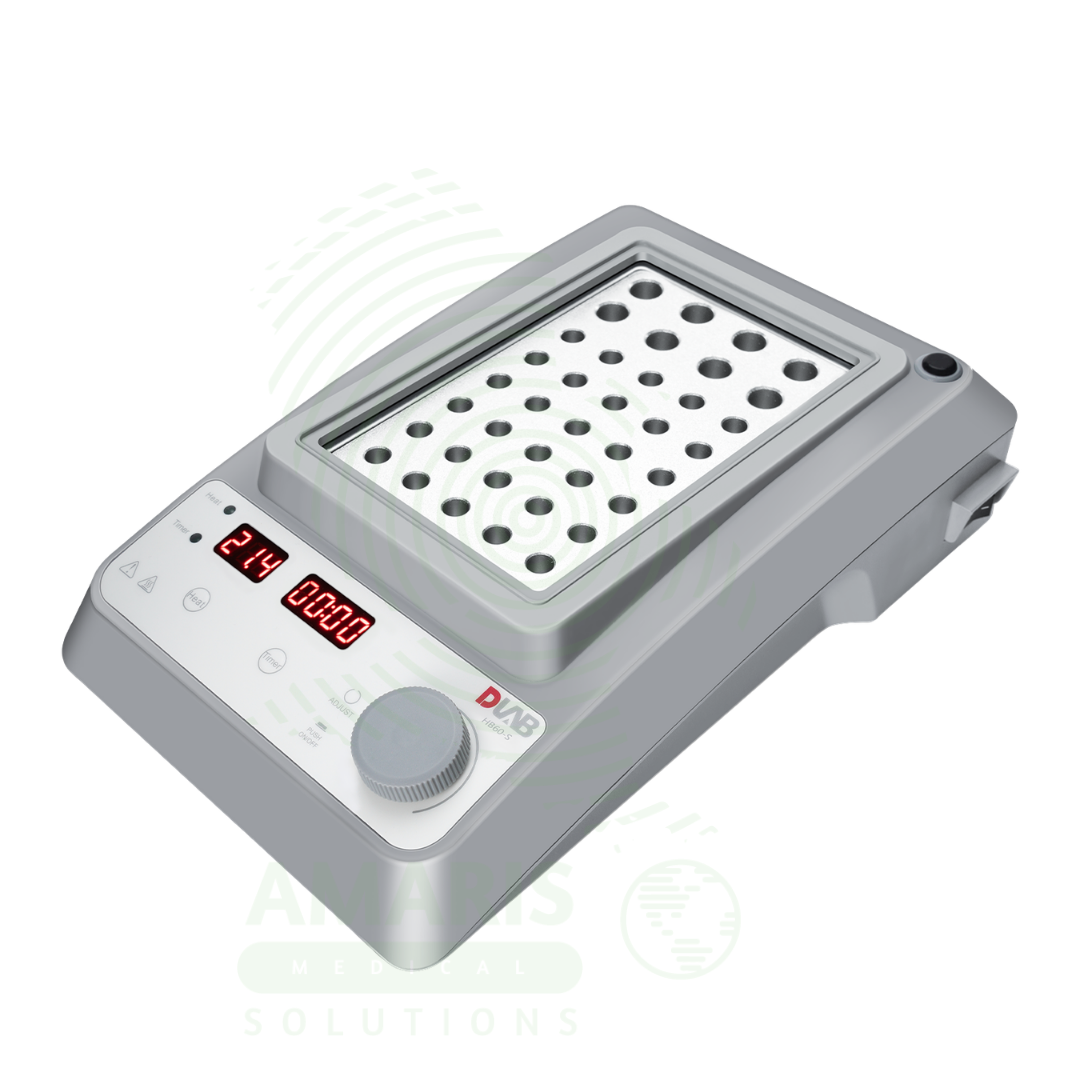

Digital Dry Bath (HB60-S)

WhatsApp Order

The Digital Dry Bath (HB60-S) (LED Digital Dry Bath) is a compact, low-profile benchtop dry thermostat designed for precise temperature-controlled incubation in clinical diagnostic, molecular biology, and research laboratories . With a temperature range from room temperature +5°C to 60°C and five discrete temperature settings (25°C, 30°C, 37°C, 45°C, 60°C), this dry bath provides control accuracy of ±0.5°C and excellent temperature uniformity of ±0.3°C at 37°C .

The dual-purpose heating block accommodates up to 30 × 1.5/2.0 mL tubes or 8 × 5-10 mL tubes, offering flexibility for different sample volumes and tube formats . The LED display provides real-time monitoring of temperature and time, while the intuitive control knob allows easy operation without complex menus . The microprocessor-controlled unit supports both timing mode (0 to 99 hours 59 minutes) and continuous operation mode .

For the clinical laboratory scientist and medical technologist, the HB60-S supports enzyme-substrate reactions for biochemical tests and clinical chemistry, serum inactivation (56°C) for immunoassays and serological testing, DNA/RNA preparation for molecular diagnostics and PCR workflows, and sample warming and reagent thawing for diagnostic testing .

Safety features include over-temperature protection (80°C safety cut-off) and an insulated lid that prevents heat loss and contamination . The low-profile, space-saving design (175 × 290 × 85 mm) and lightweight construction (2.5 kg) minimize benchtop footprint while delivering reliable heating performance .

For the patient undergoing diagnostic testing for infectious diseases, autoimmune disorders, or genetic conditions, the HB60-S’s precise temperature control ensures reliable enzyme reaction conditions, consistent DNA denaturation, and accurate sample preparation—supporting reliable test results that guide appropriate treatment decisions across clinical chemistry, molecular diagnostics, and research applications .

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Incubators and Ovens Tags: Clinical Laboratory Equipment, DLAB Dry Bath, Dry Thermostat, Enzyme Reaction Incubation, HB60-S Digital Dry Bath, LED Digital Dry Bath, Mini Dry Bath Incubator, Molecular Diagnostics, Sample Preparation, Serum Inactivation

Description

Digital Dry Bath (HB60-S)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Enzyme Reaction and Biochemical Test Preparation

Primary Use: Provides a digital dry bath with five discrete temperature settings (25°C, 30°C, 37°C, 45°C, 60°C) for precise incubation of enzyme-substrate reactions and biochemical assays .
How it helps: For the clinical chemist and medical technologist, the HB60-S delivers precise temperature control (accuracy ±0.5°C) and excellent temperature uniformity (±0.3°C at 37°C), ensuring consistent conditions for enzymatic assays—critical for accurate liver function tests (ALT, AST), cardiac biomarkers, and other enzyme-based diagnostic tests . For the patient, reliable enzymatic assay results enable accurate diagnosis of myocardial infarction, hepatitis, and other conditions requiring enzyme level monitoring.

2. Serum Inactivation and Protein Denaturation

Primary Use: Used for serum inactivation protocols (typically at 56°C) and protein denaturation steps in diagnostic workflows, utilizing the HB60-S’s 45°C and 60°C temperature settings .
How it helps: For the clinical laboratory scientist, the HB60-S provides stable, uniform heating for serum complement inactivation—a critical step in immunoassays, serological testing, and blood compatibility studies. The 60°C setting also supports protein denaturation for Western blotting and other protein analysis techniques. For the patient, proper serum inactivation ensures accurate antibody detection in infectious disease testing and autoantibody screening.

3. Sample Preparation and Reagent Warming

Primary Use: Used for controlled warming of frozen clinical specimens, thawing reagents, and pre-heating samples to operating temperature before diagnostic testing .
How it helps: For the medical technologist, the HB60-S provides uniform, gentle heating that preserves sample integrity—preventing hemolysis, protein denaturation, and analyte degradation that can occur with rapid or uneven heating . For the patient, proper sample handling reduces the need for repeat specimen collection due to degraded samples, saving time and discomfort.

4. DNA/RNA Preparation and Molecular Diagnostics

Primary Use: Supports DNA and RNA sample preparation, nucleic acid amplification protocols, and molecular diagnostic workflows requiring precise temperature control .
How it helps: For the molecular biologist, the HB60-S’s stable heating ensures consistent conditions for DNA denaturation, reverse transcription steps, and other temperature-dependent molecular biology procedures. The 37°C and 45°C settings are ideal for enzyme reactions and cDNA synthesis . For the patient undergoing genetic testing or infectious disease diagnosis, reliable sample preparation supports accurate PCR results and appropriate treatment decisions.

SECONDARY & SUPPORTIVE USES

1. ELISA and Immunoassay Incubation: Provides precise temperature control for enzyme-linked immunosorbent assay (ELISA) incubation steps in infectious disease and autoimmune testing .

2. Microbiology Culture Media Warming: Warms culture media to specified temperatures before inoculation in clinical microbiology workflows .

3. Protein and Antibody Purification: Supports temperature-controlled steps in protein purification and antibody isolation protocols.

4. Nucleic Acid Extraction and Purification: Used for heating steps in spin column-based DNA/RNA extraction protocols .

5. Lipid and Cholesterol Analysis Sample Preparation: Used for warming samples and reagents in lipid profiling and cholesterol fractionation protocols.

6. Endocrine and Hormone Assay Preparation: Supports temperature-controlled incubation for thyroid function tests, reproductive hormone panels, and endocrine assays.

7. Coagulation Testing Sample Warming: Used for warming plasma samples and reagents for PT (Prothrombin Time) and PTT (Partial Thromboplastin Time) coagulation studies.

8. Therapeutic Drug Monitoring: Used for warming samples and reagents in therapeutic drug monitoring and toxicology screening.

9. Blood Bank and Transfusion Medicine: Supports temperature-controlled processing of blood components and compatibility testing samples .

10. Histology and Pathology Tissue Processing: Used for warming embedding media and processing solutions in histology laboratories .

11. Pharmaceutical Quality Control: Used for stability testing and sample preparation in pharmaceutical QC departments .

12.Food Safety and Environmental Testing: Used for sample preparation and media warming in food microbiology and water quality testing .

13. Biochemistry and Genetics Research: Supports enzyme reactions and sample preparation in biochemistry and genetics research .

14. Veterinary Diagnostic Laboratory: Supports clinical chemistry and molecular biology workflows for animal health testing .

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A digital dry bath (dry thermostat) with LED display, designed for precise temperature control in clinical diagnostics, molecular biology, and research laboratories .
Designation: HB60-S Digital Dry Bath, LED Digital Dry Bath, Mini Dry Bath Incubator, DLAB Dry Bath, Dry Thermostat .
Key Components:
- Heating Block: Dual-purpose block accommodating 5mL×30 + 10mL×8 tubes or 1.5/2.0mL tubes .
- Microprocessor Controller: Regulates temperature with automatic feedback for precise control .
- LED Display: Digital display for real-time temperature and time monitoring .
- Control Knob: User-friendly setting knob for simple operation .
- Insulated Lid: Lid for heat preservation, temperature stability, and contamination prevention .

2. TECHNICAL & PERFORMANCE PROPERTIES

Temperature Range: Room temperature +5°C to 60°C .
Temperature Settings: Five discrete levels: 25°C, 30°C, 37°C, 45°C, 60°C .
Temperature Control Accuracy: ±0.5°C .
Temperature Uniformity at 37°C: ±0.3°C .
Temperature Display Accuracy: 0.1°C .
Heating Block Capacity: 5mL×30 + 10mL×8 tubes (dual-purpose) .
Time Setting Range: 0 minutes to 99 hours 59 minutes .
Work Mode: Timing or continuous operation .
Maximum Heating Rate: 6.5°C/min .
Heating Power: 160W .
Power Requirements: 110/220V, 50/60Hz .
Safety Cut-off Temperature: 80°C (over-temperature protection) .
Permissible Ambient Temperature: 10-40°C .
Permissible Ambient Humidity: <80% RH .
Dimensions (W × D × H): 175 × 290 × 85 mm .
Weight: 2.5 kg .
Warranty: Manufacturer warranty per DLAB policy .

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Low-profile, space-saving design for benchtop use; high-quality heating elements .
Control System: Microprocessor-controlled with LED digital display .
Operation Modes: Timing mode (0-99h59min) and continuous operation mode .
Safety Features: Over-temperature protection (80°C safety cut-off), lid for contamination prevention .
User Interface: Intuitive control knob for easy operation without complex menus .
Block Compatibility: Accepts various optional heating blocks for different tube formats .
Calibration: Built-in temperature self-calibration function .
Portability: Lightweight (2.5 kg) with compact footprint for benchtop use.
Maintenance: Simple cleaning; interchangeable blocks require no tools.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Class I medical device for clinical diagnostic use; medical grade .
Safety Features: Over-temperature protection system (80°C safety cut-off), lid for heat preservation and contamination prevention .
Electrical Safety: Dual voltage capability (110/220V, 50/60Hz); grounded connection; 160W power .
GLP Compliance: Timer and temperature display support GLP documentation; USB interface available for data export .
Operating Conditions: Ambient temperature 10-40°C, humidity <80% RH .

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store on clean, dry benchtop; ensure adequate clearance for ventilation.
Cleaning: Wipe exterior with soft, damp cloth using neutral detergent; 70% ethanol solution may be used for surface sterilization; allow to dry before use.
Block Maintenance: Remove and clean heating block with mild detergent; dry thoroughly before reinstallation.
Inspection: Inspect block contacts for residue or damage before each use; clean if needed.
Lid Use: Always use lid during operation to maintain temperature stability and prevent contamination .
Calibration: Perform periodic temperature calibration per manufacturer guidelines .
Power Cord: Inspect power cord for damage before each use.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Enzyme reaction incubation, serum inactivation, protein denaturation, DNA/RNA preparation, and sample/reagent warming in clinical diagnostics, molecular biology, and research laboratories .
Clinical Role: Essential sample preparation and incubation equipment in clinical diagnostic laboratories, hospital laboratories, physician office laboratories, blood banks, molecular diagnostics labs, and research facilities .

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Temperature Setting: Do not exceed recommended temperatures for specific sample types; excessive heat may denature proteins or degrade analytes .
Block Installation: Ensure heating block is properly seated before operation.
Temperature Verification: Allow unit to reach set temperature before loading temperature-sensitive samples.
Lid Use: Always use lid during operation to maintain temperature stability and prevent contamination .
Over-temperature Protection: Unit includes 80°C safety cut-off; however, do not exceed recommended temperature settings for specific sample types .
Cleaning: Clean spills immediately; disinfect heating block if biological materials are involved; allow block to cool before removal.
Placement: Place on firm, flat, level, heat-resistant surface; ensure adequate clearance around unit for ventilation.
Training: Only trained laboratory personnel should operate the HB60-S for clinical diagnostic applications .

2. FIRST AID MEASURES

Burn/Scald: If hot heating block contacts skin, cool affected area immediately with cool running water for at least 15 minutes; seek medical attention for severe burns.
Sample Spillage: If biological sample spills into unit, disconnect power, allow to cool, disinfect area immediately with 70% ethanol or appropriate disinfectant.
Electrical Malfunction: If unit shows signs of electrical malfunction, disconnect power immediately; do not attempt to operate; contact service personnel.
Calibration Verification: If test results are inconsistent, perform temperature calibration to verify accuracy before proceeding with diagnostic testing .

3. FIRE FIGHTING MEASURES

Flammability: Plastic housing and electrical components may burn.
Extinguishing Media: Use carbon dioxide or dry chemical extinguisher for electrical fires.
Fire Response: Unplug unit immediately; do not use water on electrical fire.
