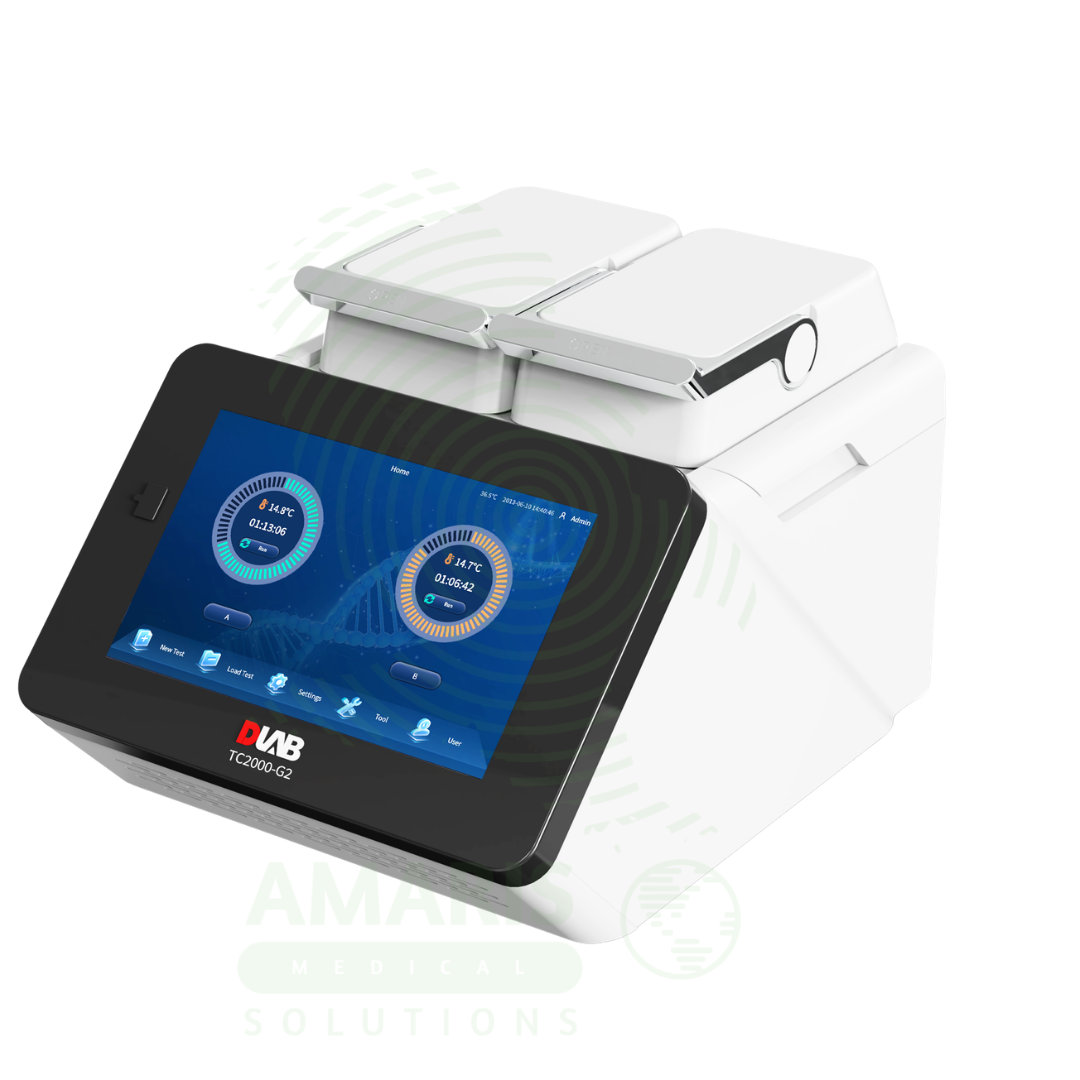

Gene Amplification Instrument (TC2000-G2)

WhatsApp Order

The Gene Amplification Instrument is a dual-block independent gradient thermal cycler featuring two separate 48-well aluminum blocks (96 total wells), each with independent temperature control, advanced Peltier heating/cooling technology (5°C/sec ramp rate), precise temperature control (±0.1°C accuracy), excellent temperature uniformity (±0.2°C at 55°C), edge temperature compensation, 10.1-inch LCD color touchscreen (1280×800), independent gradient capability (1-25°C span per block), Touchdown PCR support (-10°C to +10°C), Long PCR support (-600 sec to +600 sec), power failure protection, Wi-Fi connectivity, email notification, three-level user permission management with password protection, and independent operation logs, designed for high-throughput DNA amplification in clinical diagnostic, molecular biology, and research laboratories .

Key features include two independent 48-well aluminum blocks that can run different PCR programs simultaneously—enabling concurrent processing of different patient panels, doubling throughput while maintaining independent temperature control and gradient settings per block. The self-adaptive pressure lever hot cap for each block provides one-step lid closure (30-115°C), adaptable to different PCR tube heights. The 10.1-inch touchscreen displays real-time progress for both blocks simultaneously via independent countdown circles .

The Gene Amplification Instrument supports standard PCR, Touchdown PCR (-10°C to +10°C) for enhanced specificity, and Long PCR (-600 sec to +600 sec) for large fragment amplification . Independent dual-block gradient functionality allows simultaneous optimization of annealing temperatures for two different primer sets in a single run. Edge temperature compensation technology minimizes “edge effect” and ensures consistent amplification across all wells . Independent cavity design prevents cross-contamination between different sample types .

Three-level user permission management (guest, account authentication, administrator) with password protection ensures data security and regulatory compliance for high-throughput diagnostic laboratories . The built-in Wi-Fi module allows simultaneous control of multiple PCR instruments from one computer via LAN, with email notifications sent upon run completion . Automatic self-test at power-up detects all working modules .

For the clinical laboratory scientist and molecular biologist, the TC2000-G2 supports high-throughput infectious disease detection (concurrent COVID-19 and HIV testing, respiratory and bloodborne pathogen panels), independent genetic mutation screening, viral load monitoring, gene cloning, DNA sequencing preparation, forensic DNA analysis (STR amplification), food safety pathogen detection and GMO screening, and Touchdown/Long PCR applications .

Universal voltage (100-240V, 50/60Hz) enables use in laboratories worldwide without voltage conversion, while the moderate footprint (422 × 310 × 261 mm) and weight (11 kg) allow easy benchtop placement . The 0-105°C temperature range, 5°C/sec ramp rate, and Peltier lifespan of up to 200,000 cycles provide rapid, reliable thermal cycling for high-throughput routine and advanced diagnostic applications .

For the patient undergoing infectious disease testing, genetic screening for hereditary disorders, or viral load monitoring for chronic infections, the Gene Amplification Instrument is an independent dual-block design, precise temperature control, gradient optimization capability, and rapid ramp rate ensure accurate, reproducible PCR results with faster turnaround times—guiding appropriate treatment decisions across clinical infectious disease, oncology, genetics, and molecular diagnostics applications.

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Analyzers Tags: Clinical Laboratory Equipment, DLAB Gene Amplification Instrument, DNA Amplification, Dual 48-Well Thermocycler, Dual-Block Thermal Cycler, Food Safety Testing, Forensic DNA Analysis, Gene Amplification Instrument, Genetic Screening, High-Throughput PCR Machine, Independent Gradient PCR, Infectious Disease Detection, Molecular Diagnostics

Description

Gene Amplification Instrument (TC2000-G2)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Independent Dual-Block PCR for High-Throughput Infectious Disease Testing
• Primary Use: Provides a dual-block gradient thermal cycler with two independent 48-well aluminum blocks (96 total wells), each with independent temperature control, allowing simultaneous execution of two different PCR protocols for high-throughput infectious disease detection . Features a temperature range of 0-105°C, accuracy of ±0.1°C, uniformity of ±0.2°C at 55°C, and ramp rate of 5°C/sec .

How it helps: For the clinical laboratory scientist and molecular biologist, the Gene Amplification Instrument is an independent dual-block design enables concurrent processing of different patient panels (e.g., respiratory virus panel on block 1 and bloodborne pathogen panel on block 2) without sequential runs—dramatically increasing throughput and reducing turnaround time for high-volume diagnostic laboratories . The 10.1-inch touchscreen displays real-time progress for both blocks simultaneously with visual countdown circles . For the patient, faster processing of high-volume diagnostic samples reduces turnaround time for critical test results (COVID-19, HIV, hepatitis, tuberculosis), enabling earlier diagnosis and treatment initiation.

2. Dual Independent Gradient Optimization for Assay Development
• Primary Use: Both blocks feature independent gradient temperature control (30-105°C range, 1-25°C gradient span), allowing simultaneous optimization of annealing temperatures for two different primer sets or two different PCR protocols in a single run .

How it helps: For the molecular diagnostics developer and research scientist, the ability to run independent gradient protocols on each block doubles assay development throughput—identifying optimal annealing temperatures for two primer sets simultaneously, reducing reagent consumption and shortening development time. Edge temperature compensation technology minimizes “edge effect” and enhances temperature uniformity across both blocks . For the patient, faster assay development means quicker availability of new diagnostic tests for emerging infectious diseases and genetic conditions.

3. Genetic Mutation Screening for Hereditary Disorders
• Primary Use: Used for amplification of DNA fragments from patient samples on independent blocks to detect genetic mutations associated with hereditary disorders, including β-thalassemia, sickle cell disease, cystic fibrosis, and BRCA-associated cancers, with the ability to run different screening panels concurrently .

How it helps: For the clinical geneticist and molecular pathologist in high-volume genetics laboratories, the Gene Amplification Instrument is an independent dual-block design enables rapid, reliable amplification of different gene regions simultaneously—facilitating detection of point mutations, insertions, deletions, and other genetic variants across multiple patient panels. Independent cavity design prevents cross-contamination between different sample types . For the patient undergoing hereditary disease screening, accurate PCR results inform genetic counseling, reproductive decision-making, and preventive healthcare measures.

4. Touchdown PCR for Enhanced Specificity
• Primary Use: Supports Touchdown PCR programs with a range of -10°C to +10°C (temperature increment/decrement), enabling gradual decrease of annealing temperature during cycling to enhance amplification specificity .

How it helps: For the molecular diagnostics developer and research scientist, Touchdown PCR minimizes nonspecific amplification and primer-dimer formation—critical for detecting rare mutations, low-abundance targets, and complex clinical specimens across both independent blocks . For the patient undergoing genetic testing for inherited disorders or oncology biomarkers, enhanced specificity reduces false-positive results, ensuring accurate diagnosis and appropriate treatment planning.

5. Power Failure Protection and Sample Safety
• Primary Use: Features automatic power failure protection with program recovery for both independent blocks; upon power restoration, each block automatically resumes its unfinished cycle independently, ensuring sample safety for both running protocols .

How it helps: For the clinical laboratory scientist, automatic recovery for each independent block ensures that neither patient batch is compromised during extended runs—protecting valuable clinical specimens and preventing costly re-runs. For the patient, power failure protection ensures that critical diagnostic samples are not lost due to electrical interruptions, reducing the need for repeat specimen collection.

SECONDARY & SUPPORTIVE USES

1. Independent Reverse Transcription PCR (RT-PCR): Used with reverse transcriptase enzymes to amplify RNA targets on one or both independent blocks for detection of RNA viruses (influenza, RSV, Ebola, Zika) and gene expression analysis.

2. Independent Gene Cloning and Molecular Biology Research: Used for preparation of DNA inserts for plasmid construction, bacterial transformation, and recombinant protein expression workflows, with independent blocks allowing concurrent processing of different constructs .

3. Long PCR for Large Fragment Amplification: Supports Long PCR programs with time adjustment range of -600 seconds to +600 seconds, allowing amplification of DNA fragments up to several kilobases for sequencing, mutation detection, and structural variant analysis .

4. DNA Sequencing Preparation: Amplifies target DNA regions for Sanger sequencing, next-generation sequencing (NGS) library preparation, and amplicon sequencing applications, with independent blocks enabling concurrent preparation of different libraries.

5. Forensic DNA Analysis: Supports STR (short tandem repeat) amplification for human identification in forensic casework and paternity testing, with independent blocks allowing concurrent processing of multiple case samples .

6. Genotyping and SNP Detection: Used for amplification of specific gene regions to identify single nucleotide polymorphisms (SNPs) for pharmacogenetic testing and disease risk assessment, with independent blocks enabling different genotyping panels simultaneously.

7. Mutagenesis and Site-Directed Mutagenesis: Supports PCR-based mutagenesis for protein engineering and functional genomics research across independent blocks .

8. Food Safety and Pathogen Detection: Used for detection of foodborne pathogens (Salmonella, Listeria, E. coli O157:H7) and GMO screening, with independent blocks enabling concurrent testing for different pathogens .

9. Agricultural and Plant Research: Supports detection of plant pathogens, genetically modified organism (GMO) screening, and marker-assisted breeding applications across independent blocks .

10. Veterinary Diagnostic Testing: Used for detection of animal pathogens (canine parvovirus, feline leukemia, avian influenza) in veterinary diagnostic laboratories, with independent blocks for different animal species or pathogen panels.

11. Environmental Microbiology: Supports detection of waterborne pathogens and microbial source tracking in environmental water quality testing, as well as analysis of microbial communities and pollutant effects on organisms .

12. Drug Discovery and Pharmaceutical Research: Used in drug discovery workflows for target validation, biomarker identification, and pharmacogenomic studies, screening drug targets and evaluating drug effects on gene expression .

13. Paleontology and Ancient DNA Research: Used for species identification, evolutionary analysis, and extinction event studies of ancient biological specimens .

14. Blood Bank Screening: Used for screening blood donations for transfusion-transmitted infections including HIV, hepatitis B, hepatitis C, and West Nile virus, with independent blocks enabling concurrent screening for different pathogens.

15. Research and Academic Laboratories: Provides essential PCR capabilities for diverse research applications in molecular biology, genetics, and biochemistry laboratories, with dual-block design maximizing throughput.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

• Device Type: A dual-block independent gradient thermal cycler (PCR instrument) with two separate 48-well aluminum blocks (96 total wells), advanced Peltier heating/cooling technology, 5°C/sec ramp rate, 10.1-inch touchscreen, Wi-Fi connectivity, independent block control for simultaneous different protocols, and power failure protection, designed for high-throughput DNA amplification in clinical diagnostics, molecular biology, and research laboratories .

Designation: Gene Amplification Instrument, Dual-Block Gradient PCR Thermocycler, Independent Dual 48-Well Thermal Cycler, High-Throughput PCR Machine, DLAB Gene Amplification Instrument .
Key Components:
• Sample Blocks: Two independent 48-well aluminum blocks (96 total wells) (dual 48-well configuration), each with independent temperature control; compatible with 0.2mL PCR tubes, 8-strips, and 96-well PCR plates (no skirt, half-skirt, full-skirt) .
• Heating/Cooling System: High-performance Peltier elements with independent heating segments for each block; up to 200,000 cycle lifespan .
• Heated Lid: Self-adaptive pressure lever hot cap with adjustable temperature range 30-115°C; closes and tightens in one step, adaptable to different PCR tube heights .
• Display: 10.1-inch LCD color touchscreen with 1280×800 resolution; visual countdown circle display for real-time run progress per block .
• Communication Interfaces: USB 2.0 port, built-in Wi-Fi module for LAN connection, remote monitoring, and email notification upon completion .
• Security: Three-level user permission management (guest, account authentication, administrator) with password protection; independent operation logs .

2. TECHNICAL & PERFORMANCE PROPERTIES

• Block Configuration: Two independent 48-well aluminum blocks (96 total wells) (dual 48-well) .
• Sample Capacity: 96 × 0.2mL PCR tubes; 12 × PCR-8 strips; 96-well PCR plates (no skirt, half-skirt, full-skirt) .
• Temperature Range: 0-105°C (sample blocks); 30-115°C (heated lid) .
• Temperature Control Accuracy: ±0.1°C .
• Temperature Uniformity at 55°C: ±0.2°C .
• Temperature Display Resolution: 0.1°C .
• Maximum Heating/Cooling Rate: 5°C per second; variable ramp rate adjustable 0.1-5°C/sec .
• Gradient Setting Range: 30-105°C (independent per block) .
• Gradient Span Range: 1-25°C (enter 0 to turn off gradient) .
• Independent Operation: Each block can run different PCR protocols simultaneously with independent temperature, gradient, and cycle settings .
• Time Increment/Decrement Range: -600 seconds to +600 seconds (for Long PCR) .
• Temperature Increment/Decrement Range: -10°C to +10°C (for Touchdown PCR) .
• Program Structure: Maximum 30 steps per program, up to 199 cycles .
• Program Storage Capacity: 20,000+ programs (via USB flash drive) .
• Display: 10.1-inch LCD touchscreen (1280×800 resolution) .
• Communication: USB 2.0, Wi-Fi (built-in), email notification upon completion .
• Power Failure Protection: Yes; automatically resumes unfinished cycles upon power restoration (independent per block) .
• User Permissions: Three-level security (guest, account authentication, administrator) with password protection .
• 4°C Hold: Unlimited time after program completion to preserve amplified products.
• Self-Test: Automatic self-check upon power-up to detect all working modules .
• Voltage/Frequency: 100-240V, 50/60Hz; 600W power consumption .
• Dimensions (W × D × H): 422 × 310 × 261 mm .
• Weight: 11 kg .
• Operating Conditions: 5-40°C ambient temperature; ≤80% relative humidity .
• Peltier Lifespan: Up to 200,000 cycles .
• Certifications: CB, FCC, ICES, CE LVD, UKCA LVD, UKCA EMC, and cTUVus .

3. PHYSICAL & OPERATIONAL PROPERTIES

• Construction: Sturdy benchtop housing with dual independent aluminum sample blocks; high-performance Peltier elements for reliable temperature control; independent cavity design prevents cross-contamination between blocks .

Independent Block Operation: Two independent 48-well blocks (dual 48-well) can run different PCR programs simultaneously—each with independent temperature, gradient, cycle, and time settings; ideal for high-throughput laboratories running multiple assays concurrently .
Display: 10.1-inch LCD color touchscreen (1280×800) with graphical user interface; displays real-time progress for both blocks simultaneously via independent countdown circles; intuitive menu navigation .
Edge Temperature Compensation: Reduces temperature variation across both blocks, minimizing "edge effect" for consistent amplification in all wells .
Hot Lid Function: Self-adaptive pressure lever hot cap for each block; adjustable temperature (30-115°C); closes and tightens in one step, adaptable to different PCR tube heights .
Program Features: Supports program suspension, skip to next step, and power failure recovery with automatic program continuation (independent per block) .
Connectivity: Built-in Wi-Fi module allows simultaneous control of multiple PCR instruments from one computer via LAN; supports email notifications upon run completion; USB for data transfer and software updates .
Data Logging: Supports run records and abnormal event logs for each block; USB data export for program and data backup .
User Account Management: Three-level permission management (guest, account authentication, administrator) with password protection; independent access control for data security .
Language Support: Chinese and English interface options .
Portability: Benchtop design with moderate footprint (422 × 310 × 261 mm) and weight (11 kg) for lab benchtop placement .
Maintenance: Peltier elements designed for long-term durability (up to 200,000 cycles); periodic calibration recommended .

4. SAFETY & COMPLIANCE ATTRIBUTES

• Regulatory Status: Medical device for in vitro diagnostic use; complies with international laboratory safety standards; CB, FCC, ICES, CE LVD, UKCA LVD, UKCA EMC, and cTUVus certified .

Safety Features: Power failure protection with automatic program recovery (independent per block); over-temperature protection; hot lid automatic operation; self-test at power-up .
Cross-Contamination Prevention: Independent cavity design for each block prevents cross-contamination between different sample types .
Data Security: Three-level user permission management (guest, account authentication, administrator) with password protection to prevent data breaches and unauthorized access; independent operation logs .
Electrical Safety: Universal voltage (100-240V, 50/60Hz) for international use; earthed power connection recommended; 600W power consumption; over-current protection .
Connectivity Security: Wi-Fi and USB connectivity with data encryption for secure data transfer .
GLP Compliance: Program storage, user authentication, run records, and abnormal logs support GLP documentation; real-time run monitoring and email notifications .
Data Integrity: USB storage for program and data backup; supports user-defined file system with up to 199 cycles and 30 steps per program .
Audit Trail: Supports abnormal event logging and run record storage for laboratory quality management .
Warranty: Manufacturer warranty as per DLAB policy; extended service options available.

5. STORAGE & HANDLING ATTRIBUTES

• Storage: Store on clean, dry, level benchtop; protect from dust and moisture; ambient temperature 5-40°C, ≤80% RH .

Cleaning: Wipe exterior with soft, damp cloth using neutral detergent; 70% ethanol solution may be used for surface disinfection; do not immerse in liquid; disconnect power before cleaning.
Inspection: Inspect power cord for damage before each use; check both sample blocks for debris or residue; verify heated lid seal integrity for each block; run self-test at power-up .
Operation: Place on stable, level surface; ensure adequate ventilation; connect to appropriate power supply; power ON; wait for self-test completion; select or create independent programs for each block; load samples into respective 48-well blocks or plates; close lids securely (one-step adaptive pressure per block); start runs; monitor progress on touchscreen for both blocks simultaneously .
Independent Program Creation: Use touchscreen interface to create independent programs for block 1 and block 2; set denaturation, annealing, and extension temperatures and times; configure cycle numbers (up to 199 cycles, 30 steps); save to USB or internal memory .
Gradient Programming (Independent per Block): Set gradient range (1-25°C) and temperature range (30-105°C) independently for each block; system automatically creates temperature gradient across each block for annealing optimization .
Touchdown PCR Programming: Configure temperature increment/decrement range (-10°C to +10°C) to gradually decrease annealing temperature for enhanced specificity .
Long PCR Programming: Adjust extension time (-600 seconds to +600 seconds) for amplification of long DNA fragments .
User Account Management: Create and manage user accounts with password protection for data security; account authentication prevents unauthorized access; administrator mode for system management .
Connectivity Setup: Connect to LAN via built-in Wi-Fi for multi-instrument control and remote monitoring of both blocks; configure email notifications for run completion alerts; use USB for data transfer and software updates .
Power Failure Recovery: If power fails during runs, each block automatically resumes its unfinished cycle upon power restoration; samples are preserved; run progress is maintained independently per block .
4°C Hold: After program completion, samples are held at 4°C indefinitely to preserve amplified products.
Data Export: Export run records, abnormal logs, and program files via USB for quality management and documentation .
Spill Management: If liquid spills onto unit, disconnect power immediately, clean thoroughly with appropriate disinfectant, allow to dry before reuse.

6. LABORATORY & CLINICAL APPLICATIONS

• Primary Application: High-throughput, independent dual-block DNA amplification via polymerase chain reaction (PCR) for infectious disease detection, genetic mutation screening, viral load monitoring, molecular cloning, DNA sequencing preparation, forensic DNA analysis, and food safety testing in clinical diagnostic, molecular biology, and research laboratories .

Clinical Role: Essential high-throughput molecular diagnostics equipment in clinical diagnostic laboratories, hospital molecular pathology departments, infectious disease reference laboratories, genetics laboratories, blood banks, forensic laboratories, food safety testing facilities, and research institutions performing PCR-based patient testing.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

• Independent Block Operation: Ensure each block is programmed independently; verify that selected protocols are appropriate for the samples loaded in each respective block.

Electrical Safety: Disconnect power before cleaning; do not immerse unit in liquid; keep power cord away from heat sources and sharp edges; use only properly grounded electrical outlets.
Sample Containment: Use appropriate biosafety practices when handling infectious samples; prepare samples in biosafety cabinet when indicated; seal tubes and plates to prevent aerosol generation; utilize independent cavities to prevent cross-contamination .
Hot Surface Warning: Heated lids reach temperatures up to 115°C; sample blocks may become hot during operation; allow to cool before opening or handling; use caution when opening lids immediately after run completion.
Cross-Contamination Prevention: Use filter pipette tips; perform setup in designated pre-PCR and post-PCR areas; use UNG (uracil-N-glycosylase) for carryover prevention when indicated; utilize independent cavity design for different sample types .
Ventilation: Ensure adequate ventilation; unit generates heat during operation; do not block ventilation openings; place in well-ventilated area.
Sample Tube Compatibility: Use only PCR-grade tubes, strips, or plates rated for thermal cycling; ensure proper sealing to prevent evaporation and sample loss.
Load Limits: Do not exceed 96-sample total capacity (48 per block); load tubes or plates symmetrically within each block for optimal thermal performance.
Software Updates: Use official manufacturer updates only via USB; verify compatibility before updating; backup programs before updating .
User Account Management: Use password-protected accounts to prevent unauthorized access; maintain administrator oversight for data security .
Training: Only trained laboratory personnel should operate the Gene Amplification Instrument for clinical diagnostic applications.

2. FIRST AID MEASURES

• Sample Splash: If biological sample splashes into eyes, flush with water for 15 minutes, seek medical attention; if on skin, wash with soap and water.

Burn: If hot lid or sample block contacts skin, cool affected area with cool running water for 15 minutes; seek medical attention for severe burns.
Electrical Malfunction: If unit shows signs of electrical malfunction (smoke, burning smell), disconnect power immediately; do not attempt to operate; contact service personnel.
Power Failure: If power fails during critical runs, samples will be preserved; upon restoration, each program automatically resumes; assess sample integrity before proceeding with downstream analysis .
Chemical Spill: If corrosive chemicals spill on unit, disconnect power immediately, wipe with appropriate neutralizer, dry thoroughly before reconnecting power.

3. FIRE FIGHTING MEASURES

• Flammability: Plastic housing and electrical components may burn; Peltier elements are solid-state and non-flammable.

Extinguishing Media: Use carbon dioxide (CO₂) or dry chemical extinguisher for electrical fires.
Fire Response: Unplug unit immediately; do not use water on electrical fire; evacuate area if fire cannot be quickly contained.

Gene Amplification Instrument (TC2000-G2)

Gene Amplification Instrument (TC2000-G2)

PRIMARY CLINICAL & DIAGNOSTIC USES

4. Touchdown PCR for Enhanced Specificity • Primary Use: Supports Touchdown PCR programs with a range of -10°C to +10°C (temperature increment/decrement), enabling gradual decrease of annealing temperature during cycling to enhance amplification specificity .

SECONDARY & SUPPORTIVE USES

1. Independent Reverse Transcription PCR (RT-PCR): Used with reverse transcriptase enzymes to amplify RNA targets on one or both independent blocks for detection of RNA viruses (influenza, RSV, Ebola, Zika) and gene expression analysis.

2. Independent Gene Cloning and Molecular Biology Research: Used for preparation of DNA inserts for plasmid construction, bacterial transformation, and recombinant protein expression workflows, with independent blocks allowing concurrent processing of different constructs .

3. Long PCR for Large Fragment Amplification: Supports Long PCR programs with time adjustment range of -600 seconds to +600 seconds, allowing amplification of DNA fragments up to several kilobases for sequencing, mutation detection, and structural variant analysis .

4. DNA Sequencing Preparation: Amplifies target DNA regions for Sanger sequencing, next-generation sequencing (NGS) library preparation, and amplicon sequencing applications, with independent blocks enabling concurrent preparation of different libraries.

5. Forensic DNA Analysis: Supports STR (short tandem repeat) amplification for human identification in forensic casework and paternity testing, with independent blocks allowing concurrent processing of multiple case samples .

6. Genotyping and SNP Detection: Used for amplification of specific gene regions to identify single nucleotide polymorphisms (SNPs) for pharmacogenetic testing and disease risk assessment, with independent blocks enabling different genotyping panels simultaneously.

7. Mutagenesis and Site-Directed Mutagenesis: Supports PCR-based mutagenesis for protein engineering and functional genomics research across independent blocks .

8. Food Safety and Pathogen Detection: Used for detection of foodborne pathogens (Salmonella, Listeria, E. coli O157:H7) and GMO screening, with independent blocks enabling concurrent testing for different pathogens .

9. Agricultural and Plant Research: Supports detection of plant pathogens, genetically modified organism (GMO) screening, and marker-assisted breeding applications across independent blocks .

10. Veterinary Diagnostic Testing: Used for detection of animal pathogens (canine parvovirus, feline leukemia, avian influenza) in veterinary diagnostic laboratories, with independent blocks for different animal species or pathogen panels.

11. Environmental Microbiology: Supports detection of waterborne pathogens and microbial source tracking in environmental water quality testing, as well as analysis of microbial communities and pollutant effects on organisms .

12. Drug Discovery and Pharmaceutical Research: Used in drug discovery workflows for target validation, biomarker identification, and pharmacogenomic studies, screening drug targets and evaluating drug effects on gene expression .

13. Paleontology and Ancient DNA Research: Used for species identification, evolutionary analysis, and extinction event studies of ancient biological specimens .

14. Blood Bank Screening: Used for screening blood donations for transfusion-transmitted infections including HIV, hepatitis B, hepatitis C, and West Nile virus, with independent blocks enabling concurrent screening for different pathogens.

15. Research and Academic Laboratories: Provides essential PCR capabilities for diverse research applications in molecular biology, genetics, and biochemistry laboratories, with dual-block design maximizing throughput.

1. BASIC IDENTIFICATION ATTRIBUTES

Designation: Gene Amplification Instrument, Dual-Block Gradient PCR Thermocycler, Independent Dual 48-Well Thermal Cycler, High-Throughput PCR Machine, DLAB Gene Amplification Instrument .

2. TECHNICAL & PERFORMANCE PROPERTIES

3. PHYSICAL & OPERATIONAL PROPERTIES

• Construction: Sturdy benchtop housing with dual independent aluminum sample blocks; high-performance Peltier elements for reliable temperature control; independent cavity design prevents cross-contamination between blocks .

Independent Block Operation: Two independent 48-well blocks (dual 48-well) can run different PCR programs simultaneously—each with independent temperature, gradient, cycle, and time settings; ideal for high-throughput laboratories running multiple assays concurrently .

Display: 10.1-inch LCD color touchscreen (1280×800) with graphical user interface; displays real-time progress for both blocks simultaneously via independent countdown circles; intuitive menu navigation .

Edge Temperature Compensation: Reduces temperature variation across both blocks, minimizing "edge effect" for consistent amplification in all wells .

Hot Lid Function: Self-adaptive pressure lever hot cap for each block; adjustable temperature (30-115°C); closes and tightens in one step, adaptable to different PCR tube heights .

Program Features: Supports program suspension, skip to next step, and power failure recovery with automatic program continuation (independent per block) .

Connectivity: Built-in Wi-Fi module allows simultaneous control of multiple PCR instruments from one computer via LAN; supports email notifications upon run completion; USB for data transfer and software updates .

Data Logging: Supports run records and abnormal event logs for each block; USB data export for program and data backup .

User Account Management: Three-level permission management (guest, account authentication, administrator) with password protection; independent access control for data security .

Language Support: Chinese and English interface options .

Portability: Benchtop design with moderate footprint (422 × 310 × 261 mm) and weight (11 kg) for lab benchtop placement .

Maintenance: Peltier elements designed for long-term durability (up to 200,000 cycles); periodic calibration recommended .

4. SAFETY & COMPLIANCE ATTRIBUTES

• Regulatory Status: Medical device for in vitro diagnostic use; complies with international laboratory safety standards; CB, FCC, ICES, CE LVD, UKCA LVD, UKCA EMC, and cTUVus certified .

Safety Features: Power failure protection with automatic program recovery (independent per block); over-temperature protection; hot lid automatic operation; self-test at power-up .

Cross-Contamination Prevention: Independent cavity design for each block prevents cross-contamination between different sample types .

Data Security: Three-level user permission management (guest, account authentication, administrator) with password protection to prevent data breaches and unauthorized access; independent operation logs .

Electrical Safety: Universal voltage (100-240V, 50/60Hz) for international use; earthed power connection recommended; 600W power consumption; over-current protection .

Connectivity Security: Wi-Fi and USB connectivity with data encryption for secure data transfer .

GLP Compliance: Program storage, user authentication, run records, and abnormal logs support GLP documentation; real-time run monitoring and email notifications .

Data Integrity: USB storage for program and data backup; supports user-defined file system with up to 199 cycles and 30 steps per program .

Audit Trail: Supports abnormal event logging and run record storage for laboratory quality management .

Warranty: Manufacturer warranty as per DLAB policy; extended service options available.

5. STORAGE & HANDLING ATTRIBUTES

• Storage: Store on clean, dry, level benchtop; protect from dust and moisture; ambient temperature 5-40°C, ≤80% RH .

Cleaning: Wipe exterior with soft, damp cloth using neutral detergent; 70% ethanol solution may be used for surface disinfection; do not immerse in liquid; disconnect power before cleaning.

Inspection: Inspect power cord for damage before each use; check both sample blocks for debris or residue; verify heated lid seal integrity for each block; run self-test at power-up .

Independent Program Creation: Use touchscreen interface to create independent programs for block 1 and block 2; set denaturation, annealing, and extension temperatures and times; configure cycle numbers (up to 199 cycles, 30 steps); save to USB or internal memory .

Gradient Programming (Independent per Block): Set gradient range (1-25°C) and temperature range (30-105°C) independently for each block; system automatically creates temperature gradient across each block for annealing optimization .

Touchdown PCR Programming: Configure temperature increment/decrement range (-10°C to +10°C) to gradually decrease annealing temperature for enhanced specificity .

Long PCR Programming: Adjust extension time (-600 seconds to +600 seconds) for amplification of long DNA fragments .

User Account Management: Create and manage user accounts with password protection for data security; account authentication prevents unauthorized access; administrator mode for system management .

Connectivity Setup: Connect to LAN via built-in Wi-Fi for multi-instrument control and remote monitoring of both blocks; configure email notifications for run completion alerts; use USB for data transfer and software updates .

Power Failure Recovery: If power fails during runs, each block automatically resumes its unfinished cycle upon power restoration; samples are preserved; run progress is maintained independently per block .

4°C Hold: After program completion, samples are held at 4°C indefinitely to preserve amplified products.

Data Export: Export run records, abnormal logs, and program files via USB for quality management and documentation .

Spill Management: If liquid spills onto unit, disconnect power immediately, clean thoroughly with appropriate disinfectant, allow to dry before reuse.

6. LABORATORY & CLINICAL APPLICATIONS

1. SAFETY PRECAUTIONS

• Independent Block Operation: Ensure each block is programmed independently; verify that selected protocols are appropriate for the samples loaded in each respective block.

Electrical Safety: Disconnect power before cleaning; do not immerse unit in liquid; keep power cord away from heat sources and sharp edges; use only properly grounded electrical outlets.

Sample Containment: Use appropriate biosafety practices when handling infectious samples; prepare samples in biosafety cabinet when indicated; seal tubes and plates to prevent aerosol generation; utilize independent cavities to prevent cross-contamination .

Hot Surface Warning: Heated lids reach temperatures up to 115°C; sample blocks may become hot during operation; allow to cool before opening or handling; use caution when opening lids immediately after run completion.

Cross-Contamination Prevention: Use filter pipette tips; perform setup in designated pre-PCR and post-PCR areas; use UNG (uracil-N-glycosylase) for carryover prevention when indicated; utilize independent cavity design for different sample types .

Ventilation: Ensure adequate ventilation; unit generates heat during operation; do not block ventilation openings; place in well-ventilated area.

Sample Tube Compatibility: Use only PCR-grade tubes, strips, or plates rated for thermal cycling; ensure proper sealing to prevent evaporation and sample loss.

Load Limits: Do not exceed 96-sample total capacity (48 per block); load tubes or plates symmetrically within each block for optimal thermal performance.

Software Updates: Use official manufacturer updates only via USB; verify compatibility before updating; backup programs before updating .

User Account Management: Use password-protected accounts to prevent unauthorized access; maintain administrator oversight for data security .

Training: Only trained laboratory personnel should operate the Gene Amplification Instrument for clinical diagnostic applications.

2. FIRST AID MEASURES

• Sample Splash: If biological sample splashes into eyes, flush with water for 15 minutes, seek medical attention; if on skin, wash with soap and water.

Burn: If hot lid or sample block contacts skin, cool affected area with cool running water for 15 minutes; seek medical attention for severe burns.

Electrical Malfunction: If unit shows signs of electrical malfunction (smoke, burning smell), disconnect power immediately; do not attempt to operate; contact service personnel.

Power Failure: If power fails during critical runs, samples will be preserved; upon restoration, each program automatically resumes; assess sample integrity before proceeding with downstream analysis .

Chemical Spill: If corrosive chemicals spill on unit, disconnect power immediately, wipe with appropriate neutralizer, dry thoroughly before reconnecting power.

4. Touchdown PCR for Enhanced Specificity
• Primary Use: Supports Touchdown PCR programs with a range of -10°C to +10°C (temperature increment/decrement), enabling gradual decrease of annealing temperature during cycling to enhance amplification specificity .
