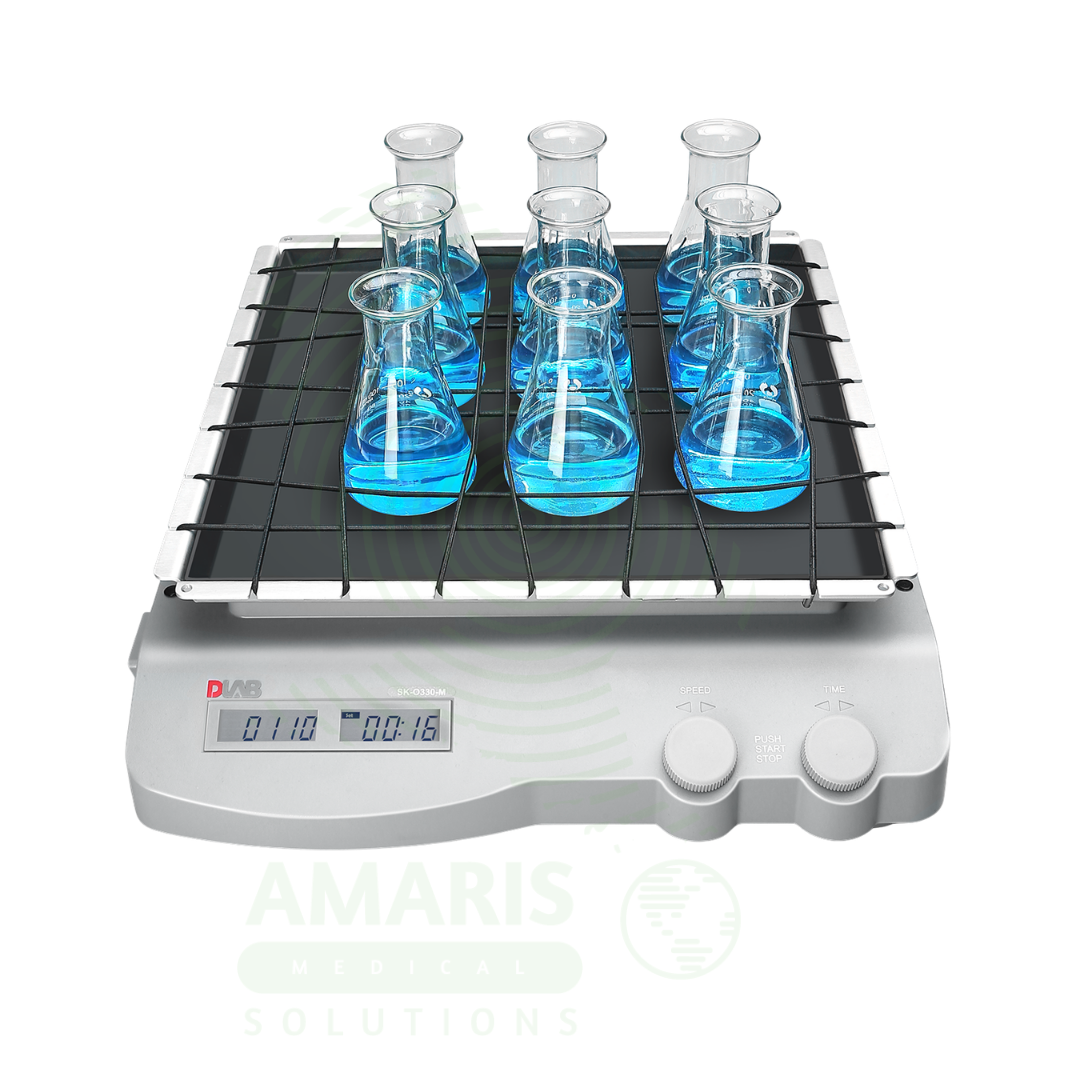

Intelligent Decolorizing Shaker (SK-O330-M)

WhatsApp Order

The Intelligent Orbital Decolorizing Shaker is a high-capacity, large-format digital orbital shaker featuring 10 mm orbit amplitude, variable speed control (70-400 rpm), dual independent LCD displays, programmable timer (1 minute to 99 hours 59 minutes), and a maintenance-free brushless DC motor, designed for high-throughput uniform mixing of electrophoresis gels, Western blot membranes, and biological samples in clinical diagnostic and research laboratories .

Key features include orbital shaking action at 10 mm orbit diameter for thorough, uniform mixing, dual independent LCD displays for simultaneous monitoring of speed and time, programmable timer with automatic stop (1 min to 99 hours 59 min), continuous or timed operation mode, and a maintenance-free brushless DC motor for quiet, reliable operation . The large 335 × 335 mm work platform with 3 kg load capacity securely holds multiple culture dishes, flasks, beakers, blotting containers, and gel staining trays .

The Intelligent Orbital Decolorizing Shaker accommodates a variety of laboratory vessels, with universal voltage (100-240V, 50/60Hz) enabling use in laboratories worldwide without voltage conversion . The cold room and incubator compatibility (5-40°C operating temperature, 80% RH) allows sample mixing under controlled temperature conditions for temperature-sensitive applications such as hybridizations and cell culture . The IP21 protection rating provides durability against dust and moisture in typical laboratory environments .

For the clinical laboratory scientist and molecular biologist, the Intelligent Orbital Decolorizing Shaker supports high-throughput electrophoresis gel decolorization and staining (Coomassie blue, silver nitrate), Western blot membrane washing and antibody incubations across multiple membranes, Southern and Northern blot hybridization reactions, immunoprecipitation (IP) protocols, liquid-solid suspension mixing (cell pellets, tissue homogenates), clinical sample preparation, and general liquid mixing for aeration and extraction applications .

Universal voltage (100-240V, 50/60Hz) enables use in laboratories worldwide without voltage conversion, while the moderate weight (9.8 kg) and compact footprint (420 × 370 × 100 mm) allow benchtop stability and efficient space utilization . The whisper-quiet brushless DC motor and over-speed detection and protection ensure minimal noise, extended service life, and enhanced laboratory safety .

For the patient undergoing diagnostic testing for infectious diseases, genetic disorders, or cancer biomarkers, the Intelligent Orbital Decolorizing Shaker uniform orbital mixing across large sample batches ensures consistent gel staining, reproducible antibody incubations, and accurate nucleic acid hybridization results—supporting reliable diagnostic outcomes that guide appropriate treatment decisions across high-volume molecular diagnostics, immunology, and cell biology applications.

Compare

Add to wishlist

Categories: LABORATORY EQUIPMENT AND SUPPLIES, Lab Consumables Tags: Clinical Laboratory Equipment, DLAB SK-O330-M, DNA Hybridization, Gel Staining, High-Throughput Shaker, Laboratory Shaker, Membrane Washing, Molecular Diagnostics, Orbital Decolorizing Shaker, SK-O330-M Intelligent Orbital Decolorizing Shaker, Western Blotting

Description

Intelligent Decolorizing Shaker

PRIMARY CLINICAL & DIAGNOSTIC USES

1. High-Throughput Gel Decolorization and Staining for Molecular Diagnostics

Primary Use: Provides a large-format orbital decolorizing shaker with 10 mm orbit amplitude, variable speed control (70-400 rpm), and dual LCD displays, specifically engineered for uniform and efficient staining and destaining of multiple electrophoresis gels simultaneously .
How it helps: For the molecular biologist and clinical laboratory scientist, the SK-O330-M’s orbital motion and larger 335×335 mm platform capacity allow for the processing of multiple large polyacrylamide gels at once—ensuring even distribution of Coomassie Blue, silver nitrate, and other staining solutions. This results in sharper protein bands and more accurate densitometry for diagnostic protein analysis . For the patient undergoing confirmatory testing for genetic disorders or protein abnormalities, clear and consistent gel results support accurate diagnosis without the need for repeat testing.

2. High-Capacity Western Blot Membrane Processing

Primary Use: Ideal for washing PVDF and nitrocellulose membranes in large Western blotting trays, ensuring complete, even reagent coverage for optimal signal development .
How it helps: For the immunology technologist, the 10 mm orbital amplitude provides a gentle yet thorough agitation motion for membrane washing steps, which effectively reduces background noise and enhances signal specificity during antibody incubations . This consistency is critical for confirmatory testing of HIV, Lyme disease, and autoimmune markers where diagnostic sensitivity is paramount. For the patient, this sensitivity ensures accurate diagnosis and therapeutic monitoring.

3. DNA Hybridization and Molecular Biology

Primary Use: Suitable for Southern and Northern blot hybridization, as well as DNA renaturation processes, requiring precise temperature control (operable in cold rooms and incubators) and consistent fluid movement .
How it helps: For the geneticist, the ability to operate the SK-O330-M inside a standard incubator or cold room (5-40°C) allows for stringent temperature control during nucleic acid hybridization, improving binding specificity and reducing false positives . For the patient undergoing genetic cancer screening or hereditary disease testing, this ensures high-fidelity, reliable results.

4. Heavy-Duty Cell Culture and Aeration

Primary Use: Featuring a high-torque brushless DC motor with a load capacity of up to 3 kg, suitable for continuous shaking of large flasks and culture dishes for cell aeration and nutrient mixing .
How it helps: For the cell biologist, the quiet, robust maintenance-free motor can handle heavy workloads without stalling, ensuring uniform growth conditions across large-scale cell culture preparations. This efficiency speeds up processes like vaccine development or cell-based therapy preparation. For the patient, this efficiency helps accelerate the development and availability of advanced biological therapies.

5. Large Capacity for Clinical Sample Preparation

Primary Use: Designed for mixing liquid samples in culture dishes, flasks, and beakers, supporting aeration and extraction applications in clinical diagnostic workflows .
How it helps: For the clinical laboratory scientist, the 3 kg load capacity and robust 25W power allow versatile, high-volume sample processing—from gentle mixing of patient serum samples to more vigorous extraction procedures . For the patient, reliable sample preparation across large batches ensures that diagnostic test results accurately reflect the clinical specimen, reducing the risk of false results due to heterogeneous sample distribution.

SECONDARY & SUPPORTIVE USES

1. Electrophoresis Gel Staining: Distributes Coomassie blue, silver, and fluorescent stains evenly for consistent protein and nucleic acid detection across large gels.

2. Immunoprecipitation: Provides the gentle but consistent rotation required for capturing antigen-antibody complexes in solution for downstream analysis.

3. Liquid-Solid Suspension Mixing: Effectively resuspends cell pellets or homogenized tissue samples in buffers for DNA/RNA extraction workflows.

4. Clinical Chemistry Preparation: Mixes serum, plasma, or urine samples on a benchtop shaker before analysis on automated analyzers.

5. Cell Culture Aeration: Provides continuous orbital agitation for microbial, yeast, or mammalian cell cultures in flasks, ensuring adequate gas exchange and nutrient distribution.

6. Pharmaceutical Quality Control: Agitates QC samples for dissolution testing or stability studies in R&D labs.

7. Fermentation and Bioprocessing: Provides consistent agitation for microbial or yeast cultures in flasks during small-scale fermentation and bioprocessing workflows.

8. Blood Bank and Transfusion Medicine: Supports gentle mixing of reagent red blood cells, antisera, and patient samples for compatibility testing and antibody screening.

9. Cold Room and Incubator Use: Engineered to operate reliably in cold rooms (5°C) and standard incubators (up to 40°C) for temperature-sensitive applications such as hybridizations and cell culture .

10. Maintenance-Free Operation: Brushless DC motor eliminates routine brush replacement, reducing maintenance downtime .

11. User Calibration: Supports user calibration for speed control, ensuring accuracy across the full 70-400 rpm range.

12. Auto-Restart and Self-Diagnostics: Auto restart function after power failure; overload detection and automatic stops protect the internal drive system and samples .

13. Over Speed Detection and Protection: Equipped with over-speed detection and protection that prevents misuse or sudden overload conditions, enhancing laboratory safety .

14. Universal Voltage: 100-240V, 50/60Hz universal voltage allows world-wide use without voltage conversion .

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A large-format intelligent orbital decolorizing shaker with dual LCD displays, variable speed control (70-400 rpm), programmable timer (1min-99h59min), and maintenance-free brushless DC motor, designed for uniform mixing of multiple electrophoresis gels, membranes, and biological samples in high-volume clinical diagnostic and research laboratories .
Designation: Intelligent Orbital Decolorizing Shaker, Orbital Shaker, Laboratory Shaker, DLAB SK-O330-M, High-Throughput Decolorizing Shaker.
Key Components:

o Motion Type: Orbital (circular) shaking motion with 10 mm amplitude .
o Work Platform: Large 335 × 335 mm loading platform with non-slip rubber mat for secure vessel placement .
o Motor: Maintenance-free brushless DC motor .
o Display: Dual independent LCD displays for simultaneous speed and timer viewing .
o Control: Digital control with programmable timer, continuous or timed operation mode .
o Safety Features: Over-speed detection and protection, auto-restart after power failure .
o Housing: Impact-resistant, sturdy construction with adjustable foot screws for leveling .
o Optional Accessories: Universal platform with fixing straps, flask clamps, culture flask clamps, test tube racks, double-layer platform .

2. TECHNICAL & PERFORMANCE PROPERTIES

Orbit Amplitude: 10 mm .
Speed Range: 70-400 rpm (variable, adjustable) .
Speed Display: LCD digital display .
Timer Display: LCD digital display .
Timer Range: 1 minute to 99 hours 59 minutes (programmable) .
Maximum Load Capacity: 3 kg (with platform) .
Work Platform Dimensions (L × W): 335 × 335 mm .
External Dimensions (W × D × H): 420 × 370 × 100 mm .
Motor Type: Brushless DC motor (maintenance-free) .
Motor Rating Input: 20 W .
Motor Rating Output: 15 W .
Total Power: 25 W .
Voltage/Frequency: 100-240V, 50/60Hz (universal voltage) .
Weight: 9.8 kg .
Operating Temperature: 5-40°C (cold room and incubator compatible) .
Permissible Ambient Humidity: ≤80% RH .
Protection Class: IP21 .
Operation Modes: Continuous operation or timed operation .
Compatibility: Suitable for culture dishes, flasks, beakers, blotting containers, and gel staining trays.

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Impact-resistant, sturdy housing with non-slip base for stable benchtop placement; adjustable foot screws for leveling and vibration dampening .
Motion Type: Orbital (circular) shaking motion at 10 mm fixed orbit amplitude for thorough, uniform mixing .
Work Platform: Large 335 × 335 mm loading platform with non-slip rubber mat securely holds multiple vessels simultaneously .
Display: Dual independent LCD displays show real-time speed (70-400 rpm) and timer (1min-99h59min) simultaneously .
Control System: Digital speed control; programmable timer with automatic stop at end of set time; continuous or timer operation mode optional .
Noise Level: Quiet operation (brushless DC motor) minimizes distractions in clinical laboratory environment.
Operating Conditions: Can be used in cold rooms (5-40°C) and standard incubators .
Portability: Moderate weight (9.8 kg) for benchtop stability; compact footprint (420 × 370 × 100 mm) for efficient bench space utilization .
Maintenance: Brushless DC motor eliminates routine brush replacement .
Safety Features: Equipped with over-speed detection and protection; auto-restart after power failure .

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: General laboratory equipment for in vitro diagnostic use; meets applicable laboratory safety standards; CE certified .
Safety Features: Over-speed detection and protection prevents misuse or sudden overload conditions; IP21 protection rating provides protection against solid objects >12mm and vertical dripping water ; auto-restart after power failure .
Electrical Safety: Universal voltage (100-240V, 50/60Hz) for international use; 25W low power consumption; earthed power connection recommended .
Motor Type: Brushless DC motor provides maintenance-free, quiet, stable operation .
Timer Safety: Programmable timer (1min-99h59min) with automatic stop prevents over-mixing of sensitive samples .
Operating Conditions: 5-40°C ambient temperature; ≤80% relative humidity .

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store on clean, dry, level benchtop; protect from dust and moisture.
Cleaning: Wipe work platform and housing with soft, damp cloth using neutral detergent; 70% ethanol solution may be used for surface sterilization; disconnect power before cleaning.
Inspection: Inspect power cord for damage before each use; check work platform for residue or wear; verify stability of benchtop placement.
Operation: Place unit on safe, stable surface; adjust foot screws to ensure level operation; ensure operating voltage matches power supply; connect power cable; switch ON instrument .
Speed Setting: Set desired speed (70-400 rpm) using digital controls; LCD display shows current speed setting; speed and time can be altered during running .
Timer Setting: Set desired run time (1min-99h59min); LCD display shows current time setting; unit automatically halts when timer reaches zero .
Load Balancing: Distribute vessels evenly across work platform; do not exceed maximum load capacity (3 kg) .
Cold Room/Incubator Use: Unit can be placed in cold rooms (5-40°C) or standard incubators for temperature-sensitive applications .
Spill Management: If liquid spills onto unit, disconnect power immediately, clean thoroughly, allow to dry before reuse.
Maintenance: Brushless DC motor requires no routine maintenance; keep unit clean and dry .

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: High-throughput orbital mixing for electrophoresis gel decolorization and staining, Western blot membrane washing, DNA hybridization, and general sample preparation in high-volume clinical diagnostic, molecular biology, and research laboratories .
Clinical Role: Essential high-capacity mixing equipment in clinical diagnostic laboratories, molecular biology labs, immunology laboratories, pharmaceutical research laboratories, and academic research institutions with high-throughput testing requirements.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Electrical Safety: Disconnect power before cleaning; do not immerse unit in liquid; keep power cord away from heat sources.
Load Limits: Do not exceed maximum load capacity (3 kg); ensure load is evenly distributed across work platform to prevent imbalance .
Spill Protection: Use appropriate vessel caps or seals to prevent sample leakage; clean spills immediately.
Speed Selection: Select appropriate speed for sample type (70-400 rpm); use lower speeds (70-150 rpm) for delicate membrane washing steps; use higher speeds (250-400 rpm) for gel destaining solutions.
Cold Room/Incubator Use: Ensure instrument is placed on stable surface within cold room or incubator; operating temperature range 5-40°C; permissible ambient humidity ≤80% RH .
Timer Use: Set appropriate time for mixing protocol; do not exceed recommended mixing times for sensitive samples; unit automatically halts when timer reaches zero.
Platform Cleaning: Clean work platform regularly to prevent residue buildup and maintain vessel stability.
User Calibration: Perform speed calibration periodically to ensure accuracy across the full speed range.
Training: Only trained laboratory personnel should operate the SK-O330-M for clinical diagnostic applications.

2. FIRST AID MEASURES

Sample Splash: If biological sample splashes into eyes, flush with water for 15 minutes, seek medical attention; if on skin, wash with soap and water.
Electrical Malfunction: If unit shows signs of electrical malfunction (smoke, burning smell), disconnect power immediately; do not attempt to operate; contact service personnel.
Mechanical Failure: If unit fails to operate or makes abnormal noise, disconnect power, check for obstruction, contact service if issue persists.
Overload Shutdown: If unit shuts down due to overload, reduce load weight, distribute load evenly, and restart.
Chemical Spill: If corrosive chemicals spill on unit, disconnect power immediately, wipe with appropriate neutralizer, dry thoroughly before reconnecting power.

3. FIRE FIGHTING MEASURES

Flammability: Plastic housing and electrical components may burn.
Extinguishing Media: Use carbon dioxide (CO₂) or dry chemical extinguisher for electrical fires.
