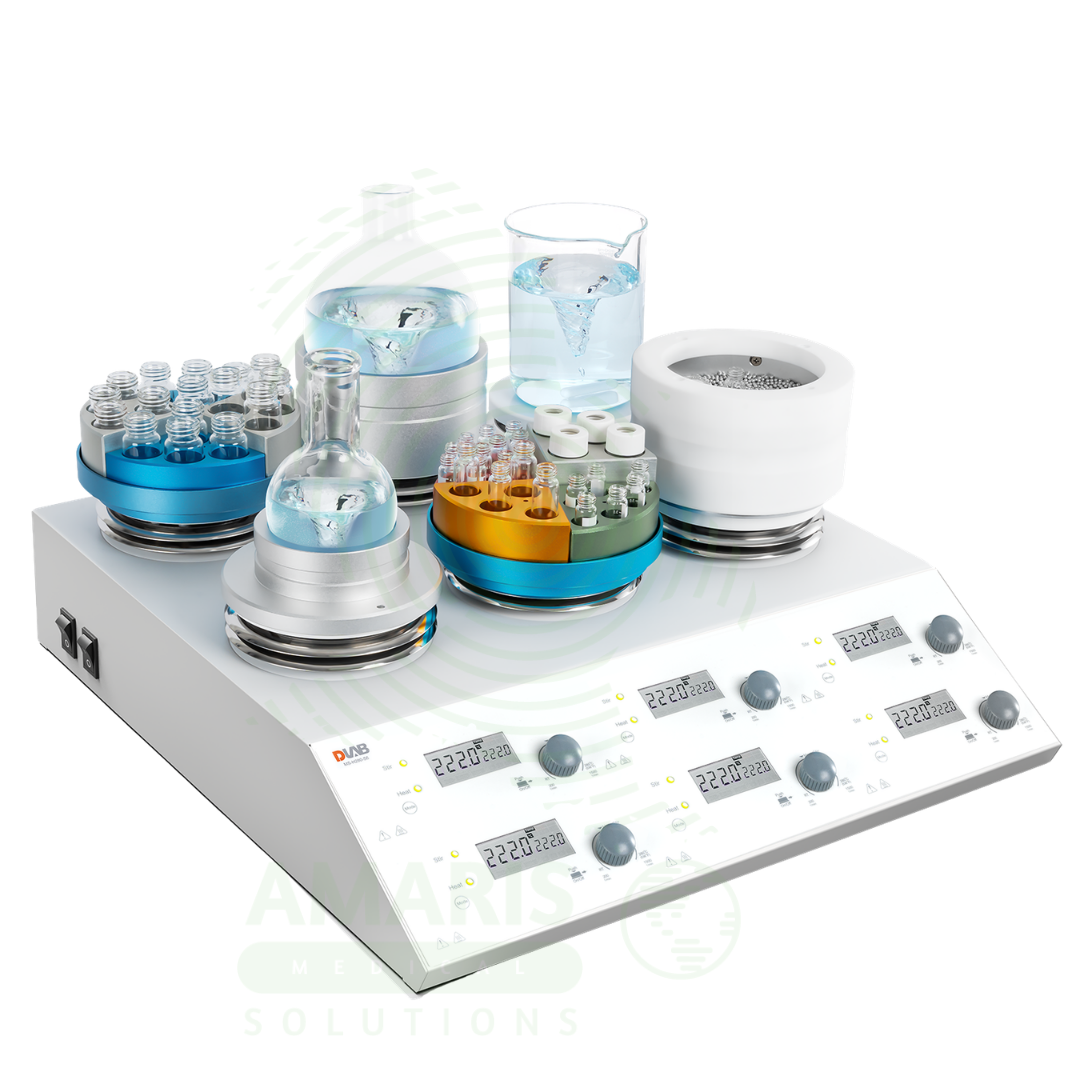

LCD Digital Hotplate Magnetic Stirrer (MS-H280-S6 6-Channel)

WhatsApp Order

The LCD Digital Hotplate Magnetic Stirrer 6‑Channel LCD Digital Hotplate Magnetic Stirrer is a modular, high‑throughput benchtop platform engineered for the true parallel processing of up to six independent heating and stirring reactions in clinical diagnostics, pharmaceutical quality control, analytical chemistry, food and feed analysis, environmental testing, and academic research laboratories.

Featuring six independent ceramic‑coated aluminum work plates (Ø134 mm each), the LCD Digital Hotplate Magnetic Stirrer provides each channel with its own PID temperature control (25–280 °C, 1 °C increments), stirring speed control (200–1500 rpm, ±20 rpm accuracy), and dedicated high‑resolution LCD display for independent real‑time monitoring of temperature and speed. The maximum stirring capacity is 3 L of water per channel (18 L total). The PT1000 external temperature sensor ports (±0.2 °C accuracy) enable precise closed‑loop control of the actual sample liquid temperature on each channel.

Key user‑focused features for high‑throughput applications include true independent control of start/stop, temperature, speed, and display for each channel (parallel experiment control); six independent maintenance‑free, spark‑free brushless DC motors for extended life and low‑noise operation; ceramic‑coated aluminum work plates with fast heat transmission and strong corrosion resistance; and ultra‑space‑saving design (564 × 523 × 127 mm, 12.7 kg) with 6 channels integrated into a single instrument—dramatically reducing bench space compared to six separate single‑channel units.

Safety is exemplary with TÜV certification (CE, cTUVus, FCC, CB, UKCA, ICES), dual independent safety circuits providing redundant over‑temperature protection (420 °C hardware cutoff for each channel), an independent residual heat warning indicator (“HOT” flashes on each respective channel display at >50 °C and continues even after the unit is turned off, including unplugged, until each plate is safe to touch), and IP21‑rated housing with an all‑metal construction for chemical resistance and excellent heat dissipation.

For the clinical laboratory scientist, trace element analyst, pharmaceutical QC chemist, food and feed analyst, and research scientist, the LCD Digital Hotplate Magnetic Stirrer delivers the modular versatility, independent 6‑channel processing capacity, and high safety required for parallel‑batch sample digestion for trace element analysis (blood lead, urine cadmium, heavy metals), multi‑condition dissolution testing, Kjeldahl nitrogen determination, Soxhlet extraction workflows, and multi‑parameter optimisation. For the patient, the reliable and reproducible performance of this high‑throughput instrument ensures that diagnostic tests and pharmaceutical products are accurate and efficient, directly supporting effective clinical decision‑making, appropriate treatment selection, and patient safety.

Compare

Add to wishlist

Description

LCD Digital Hotplate Magnetic Stirrer (MS-H280-S6 6-Channel)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. High‑Throughput Parallel Processing for Clinical and Pharmaceutical Research
Primary Use: Provides a 6‑channel LCD digital hotplate magnetic stirrer with independent control of heating, stirring, and display for each of its six 134 mm ceramic‑coated aluminum work plates. It is used for the simultaneous heating and mixing of up to six separate clinical samples, reagents, buffers, or biological specimens in parallel. The system features a stirring capacity of 3 L (water) per channel (18 L total), a speed range of 200 to 1500 rpm per channel, and a heating range from 25 °C to 280 °C in 1 °C increments, with each channel having its own clear LCD display for independent parameter monitoring.

How it helps: For the clinical pharmaceutical research scientist and high‑throughput laboratory technician, the LCD Digital Hotplate Magnetic Stirrer design enables the parallel processing of up to six independent experiments or conditions simultaneously, dramatically increasing throughput while maintaining reproducibility. Each heating surface can be independently set to a different temperature, stirring speed, start/stop status, and display. The ceramic‑coated aluminum work plates provide fast heat transmission and strong corrosion resistance. The powerful, rapid heating with precise PID temperature control ensures uniform heat distribution across all positions. For the patient undergoing diagnostic testing or receiving pharmaceutical products, the ability to rapidly process multiple samples under controlled, reproducible conditions helps ensure accurate and timely test results, directly supporting effective clinical decision‑making.

2. Parallel Digestion for High‑Volume Trace Element Analysis
Primary Use: Used for the controlled digestion of up to six independent patient samples (e.g., serum, whole blood, urine, or tissue homogenates) in strong acids at temperatures up to 280 °C, prior to trace element analysis by atomic absorption spectroscopy (AAS) or inductively coupled plasma mass spectrometry (ICP‑MS). The built‑in PT1000 external temperature sensor ports (±0.2 °C accuracy) enable precise closed‑loop control of the actual sample temperature across each channel.

How it helps: For the trace element analyst processing a high volume of patient samples in toxicology and occupational health screening, the 6‑channel design supports the simultaneous digestion of up to six separate specimens in a single run, significantly reducing total preparation time. The PT1000 external temperature sensor enables the instrument to regulate the actual temperature of the acid digest directly (±0.2 °C accuracy), ensuring complete, uniform oxidation of organic matrices even in demanding trace element analysis applications. The PID control technology provides real‑time precise control of the heating process. For the patient undergoing heavy metal screening, the accurate, controlled digestion achieved with the LCD Digital Hotplate Magnetic Stirrer results in precise and reliable clinical measurements, directly supporting correct diagnosis and treatment.

3. Simultaneous Preparation of Culture Media and Quality Control Standards
Primary Use: Enables the safe, uniform heating and melting of solid or semi‑solid culture media, nutrient agars, and agarose gels in up to six vessels simultaneously, as well as the preparation of temperature‑sensitive standard solutions and buffers for high‑throughput molecular diagnostics and quality control workflows. The six independent work plates can accommodate various heating blocks or reaction vessels for a wide range of application scenarios.

How it helps: For the clinical molecular biologist and microbiology technologist processing large numbers of patient samples, the six‑channel capacity supports the preparation of multiple media types or test conditions in a single run without cross‑contamination. The ceramic‑coated aluminum work plates with strong corrosion resistance allow the top half of each vessel to remain visible for easy monitoring of liquid level and clarity during operation. The instrument can be used concurrently for multiple reaction needs, improving laboratory efficiency. For the patient, correctly prepared, homogeneous media in sufficient volume ensures that bacterial identification and molecular diagnostic testing for infectious diseases are accurate, timely, and reproducible across a high number of patient specimens.

4. Multi‑Condition Screening in Research and Teaching Laboratories
Primary Use: The 6‑channel design is based on the concept of parallel reaction and multi‑parameter optimisation, serving as a reliable tool for Kjeldahl nitrogen determination, Soxhlet extraction, parallel synthesis, and other experiments. The user can handle up to six tests simultaneously with stable performance, good reproducibility, high accuracy, and easy operation.

How it helps: For the research scientist and teaching laboratory instructor, the ability to run up to six independent heating and stirring conditions on a single compact instrument dramatically improves productivity for condition screening and optimisation studies. Each channel can be programmed with independent start/stop, temperature, speed, and display settings, allowing the user to explore multiple reaction conditions with high parallel consistency. The compact footprint of 564 × 523 × 127 mm offers ultra‑space‑saving design with 6 channels integrated into one instrument. For the patient, efficient research workflows supported by reliable, multi‑channel equipment accelerate the development of new diagnostic methods and therapeutic compounds, ultimately benefiting patient care.

SECONDARY & SUPPORTIVE USES

1. Kjeldahl nitrogen determination in food and feed analysis: Provides simultaneous controlled heating for digestion of up to six food, feed, textile, soil, or wastewater samples in concentrated sulfuric acid prior to nitrogen quantification, significantly reducing total processing time in quality control laboratories.

2. Soxhlet extraction workflows in polymer and environmental analysis: Enables the simultaneous extraction of up to six solid samples (e.g., polymers, rubber, plastic, sludge, treated water) with organic solvents under controlled heating conditions, improving laboratory throughput for fat, oil, and pollutant determination.

3. Parallel chemical synthesis and polymer research: Provides stable, reproducible heating and stirring for up to six independent chemical synthesis reactions, supporting pharmaceutical development, petrochemical research, and material science applications with the ability to reach 280 °C for high‑boiling‑point solvents.

4. Multi‑condition drug dissolution screening for pharmaceutical QC: Allows simultaneous screening of up to six dissolution test conditions for solid oral dosage forms (tablets, capsules) using independent beakers and heated buffer solutions, accelerating early‑stage formulation development.

5. Environmental water and soil multi‑sample digestion: Prepares up to six solid environmental samples—such as soils, sediments, and ores—by acid‑digesting them in parallel for analysis of mineral content and elemental pollutants, ensuring representative results with high throughput.

6. Pharmaceutical R&D and QC sample preparation: Supports USP/EP‑compliant testing by providing independent temperature‑controlled sample preparation for multiple drug substance or product batches simultaneously, improving quality control laboratory productivity.

7. General solution preparation and multi‑parameter optimisation in academic research: Serves as a versatile, user‑friendly teaching and research tool for undergraduate and graduate university courses in chemistry, clinical laboratory science, and biochemistry, allowing students to run multiple independent experiments on a single compact benchtop instrument.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A 6‑channel, programmable LCD digital heating magnetic stirrer with independent control for each channel.
Designation: LCD Digital Hotplate Magnetic Stirrer 6‑Channel LCD Digital Hotplate Magnetic Stirrer; DLAB LCD Digital Hotplate Magnetic Stirrer; Multi‑Position Hotplate Magnetic Stirrer.
Catalogue Number: 8030351112.
Key Components:
- Six independent ceramic‑coated aluminum work plates (Ø134 mm each) with fast heat transmission and strong corrosion resistance.
- Six independent maintenance‑free, spark‑free brushless DC motors (one per channel).
- Six independent high‑resolution LCD displays for separate real‑time monitoring of temperature and speed per channel.
- PID temperature control technology with 25‑280 °C heating range per channel.
- PT1000 external temperature sensor ports for each channel (±0.2 °C control accuracy).
- Independent programme control: each channel can independently control start/stop, temperature, speed, and display.
- Dual independent safety circuits with overheating, short‑circuit, and sensor failure protection.
- Independent “HOT” residual heat indicator for each channel (flashes when work plate temperature exceeds 50 °C, even after power off).
- 420 °C over‑temperature protection (hardware cutoff, independent safety circuits).
- IP21‑rated housing (protection against solids >12.5 mm and vertically falling water drops).

2. TECHNICAL & PERFORMANCE PROPERTIES

Number of stirring positions: 6.
Work plate dimensions (each): Ø134 mm (5 in).
Work plate material: Aluminum with ceramic coating (fast heat transmission, strong corrosion resistance).
Motor type: Brushless DC motor (maintenance‑free, spark‑free).
Motor rating output: 5 W × 6.
Motor output power: 15 W × 2.
Maximum stirring capacity per channel (H₂O): 3 L (18 L total).
Speed range per channel: 200 to 1500 rpm.
Speed control accuracy: ±20 rpm.
Speed display: Independent LCD display per channel.
Heating temperature range: 25 °C to 280 °C (adjustable in 1 °C increments per channel).
Temperature display accuracy: ±0.1 °C per channel.
Temperature control accuracy (plate surface): ±1 °C (<100 °C), ±1 % (>100 °C) per channel.
External temperature sensor (PT1000) accuracy: ±0.2 °C per channel.
Heating power: 600 W × 6.
Total power consumption: 605 W × 6.
Over‑temperature protection: 420 °C hardware cutoff (independent safety circuits).
Residual heat warning: Activates above 50 °C; “HOT” flashes on each respective LCD display even when unit is powered off.
Power requirements: 100–120 V, 60 Hz / 200–240 V, 50 Hz (universal input, user‑selectable by region).
Maximum stir bar length: 40 mm.
Protection class: IP21.
Dimensions (L × W × H): 564 × 523 × 127 mm.
Weight: 12.7 kg.
Operating conditions: 5–40 °C, ≤80 % relative humidity.
Certifications: CE, cTUVus, FCC, CB, UKCA, ICES (TÜV‑certified safety).

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: Durable, all‑metal housing with a powder‑coated finish for excellent heat dissipation and chemical resistance. The six independent ceramic‑coated aluminum work plates are each designed for rapid, uniform heat transfer and strong resistance to corrosion. IP21‑rated housing provides basic protection against solid foreign objects (>12.5 mm) and vertically falling water drops.
Work plates: Six independent Ø134 mm (5‑inch) ceramic‑coated aluminum discs, each providing fast heat transmission, strong corrosion resistance, and easy cleaning. The separate plates prevent cross‑contamination between channels and can accommodate a wide range of laboratory vessels, beakers, and heating blocks.
Display: Six independent high‑contrast LCD digital displays (one per channel) simultaneously show the actual temperature and stirring speed for each channel in real time, providing complete operational visibility without toggling between parameters or channels.
Operation: Simple, intuitive independent digital controls for each channel, with separate buttons for temperature setting, speed setting, and start/stop control. Each channel can be programmed with independent start/stop, temperature, speed, and display options, allowing the user to run up to six parallel experiments under different conditions simultaneously.
Motor technology: Six independent maintenance‑free, spark‑free brushless DC motors (one per channel) provide stable torque, extended life, and ultra‑quiet, vibration‑free operation. The brushless design requires no routine motor maintenance, and the spark‑free operation makes the instrument safe for use in environments where flammable solvents may be present.
Heating technology: PID temperature control technology provides real‑time precise control of the heating process. The instrument supports a heating temperature range from 25 °C to 280 °C (1 °C increments) with display accuracy of ±0.1 °C. Each channel can be heated independently, with rapid temperature ramp‑up to the set point using 600 W heating power per channel.
External sensor integration: Six independent PT1000 external temperature sensor ports (one per channel) enable direct closed‑loop control of the actual sample liquid temperature. When the optional PT1000 sensors are connected and placed in each sample vessel, the controller regulates the heater based on the actual sample temperature rather than the plate surface temperature, providing higher precision (±0.2 °C control accuracy) for sensitive applications.
Safety functions:
- Independent channel safety monitoring: Each channel is equipped with its own safety monitoring system, allowing the instrument to detect overheating, sensor failure, or electrical faults on a per‑channel basis while leaving unaffected channels operational.
- Dual independent safety circuits: Two independent safety circuits continuously monitor the entire instrument. If sensor failure, over‑temperature, or a short circuit is detected, the affected channel stops heating, an error message is displayed, and power is cut to ensure operator safety.
- 420 °C over‑temperature protection (hardware cutoff): A separate thermal cut‑off sensor for each channel shuts down heating if the work plate exceeds 420 °C, preventing runaway heating, fire hazards, and sample destruction even if the primary control system fails.
- Residual heat warning (“HOT” indicator): For each channel independently, the “HOT” safety indicator activates when the respective work plate temperature exceeds 50 °C and continues flashing on the display even after the unit is turned off (including unplugged), alerting users to the dangerously hot surface until the plate is safe to touch.
Spill protection: IP21‑rated all‑metal housing offers protection against solid foreign objects (>12.5 mm) and vertically falling water drops. The powder‑coated housing also provides protection against chemical spills and is easy to clean.
Compact footprint: Ultra‑space‑saving design with 6 channels integrated into a single instrument (564 × 523 × 127 mm), significantly reducing bench space requirements compared to running six individual single‑channel instruments.
Maintenance: Each of the six brushless DC motors is maintenance‑free, requiring no routine brush replacement or lubrication. The six ceramic‑coated work plates are easy to clean with a mild detergent and soft, damp cloth.

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: General laboratory equipment for in vitro diagnostic (IVD) use; manufactured under ISO 9001 and ISO 13485 quality management systems. TÜV‑certified safety: CE, cTUVus, FCC, CB, UKCA, ICES.
Dual Independent Safety Circuits: Two independent safety circuits continuously monitor the instrument. When overheating occurs or the sensor malfunctions, the instrument stops heating and sounds an alarm. When a short circuit is detected, it cuts off the power to ensure human safety. The reliable safety mechanism complies with IEC61010‑1, UL61010‑1, BSEN61010‑1, CAN/CSA‑C22.2 No.61010‑1, and all other safety regulations of laboratory heating devices, making the instrument competent for tasks without human surveillance.
Residual Heat Warning: The “HOT” safety indicator for each channel activates when the respective work plate exceeds 50 °C and continues flashing on the display even after the unit is turned off (including unplugged). This independent channel warning alerts users to a dangerously hot surface until the plate is safe to touch.
Over‑temperature Protection (Hardware): 420 °C hardware cutoff per channel prevents runaway heating and fire hazards, even if the primary control system fails.
Chemical Safety: The six ceramic‑coated aluminum work plates are resistant to strong acids, strong alkalis, and organic solvents, preventing corrosion and ensuring a long service life even when handling aggressive reagents such as concentrated acids for sample digestion.
Fire Safety: All‑metal housing, ceramic‑coated work plates, and powder‑coated finish provide excellent fire protection.
Electrical Safety: Designed with six independent brushless, spark‑free DC motors (explosion‑proof), making the instrument safe for use in environments where flammable solvents may be present. The IP21‑rated housing offers protection against solid foreign objects (>12.5 mm) and vertically falling water drops.
Quality Assurance: Each instrument is factory‑calibrated. The instrument is supplied with a calibration certificate and is backed by the manufacturer’s warranty.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store the instrument in a clean, dry, dust‑free environment at room temperature (15–30 °C) when not in use. Allow all channels to cool completely (verify each channel’s “HOT” indicator is off) before storage.
Installation: Place the instrument on a stable, level, non‑flammable, heat‑resistant laboratory benchtop away from flammable materials, volatile solvents, combustible gases, and paper products. Allow at least 10 cm clearance on all sides for heat dissipation. Do not use near water baths or sinks where splashing may occur.
Cleaning: Unplug the unit and allow all work plates to cool completely before cleaning. Wipe each ceramic‑coated work plate and the metal housing with a soft, damp cloth using a mild laboratory detergent or 70 % isopropyl alcohol. Do not immerse the unit in liquid. Do not use abrasive cleaners or metal‑scouring pads, which may scratch the ceramic coating.
Pre‑use inspection: Before each use, inspect the power cord and plug for any damage. Ensure all six work plates are clean, dry, and free of chemical residues. Verify that the correct heating blocks or vessels are properly seated on each channel. Check that the area is clear of flammable materials and that the instrument has adequate clearance (at least 10 cm) for heat dissipation.
Operation: For each channel independently: Place a stirring vessel (e.g., a beaker) centrally on the respective work plate and add a magnetic stir bar (maximum 40 mm length). Turn on the main power. Set the desired temperature (using the temperature control) and stirring speed (200–1500 rpm) via each channel’s independent digital controls. The independent LCD display for that channel will show the actual temperature and speed. Always start stirring at a low speed (200‑300 rpm) to allow the stir bar to couple correctly before gradually increasing to the target speed.
Operation with external sensors (PT1000, optional accessories): For precise sample temperature control on any channel, insert a PT1000 temperature sensor probe into the sample vessel on that channel and secure it with a suitable stand and clamp (sold separately). Do not allow any sensor cable to contact the hot work plate of its respective channel.
Independent channel operation: Each channel can be run independently. For example, Channel 1 can be set to heat to 100 °C and stir at 800 rpm, while Channel 2 heats to 200 °C and stirs at 500 rpm, Channel 3 operates as a stirrer only (no heat), and Channels 4–6 are turned off. This true independent parallel processing capability dramatically improves laboratory productivity.
Cooling down: After use, turn off the main power and allow all work plates to cool completely. Cooling time may take 30–60 minutes, depending on the operating temperature. Do not attempt to move, clean, or store the instrument until each channel’s residual heat warning (“HOT”) indicator has stopped flashing and the plates have cooled to a safe temperature.
Periodic verification: Verify the temperature accuracy periodically using a calibrated external thermometer or thermocouple for each channel independently. If deviation for any channel exceeds the specified tolerance (±1 °C <100 °C or ±1 % >100 °C), consult the manufacturer’s service guidelines for recalibration of that channel.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: General‑purpose, 6‑channel independent heating and stirring for clinical diagnostics (trace element digestion for heavy metal testing), pharmaceutical quality control (parallel dissolution testing, multi‑sample preparation), analytical chemistry (reflux, distillation, Kjeldahl nitrogen determination), food and feed analysis, environmental testing, and academic research laboratories where multi‑parameter optimisation and truly independent parallel reaction control is required.
Clinical Role: A versatile and essential high‑throughput benchtop instrument for hospital and clinical chemistry laboratories, toxicology departments (blood lead, urine cadmium, heavy metals), pharmaceutical R&D and quality control, analytical chemistry departments, food and feed analysis laboratories, environmental testing stations, soil and water treatment facilities, polymer research laboratories, and research institutions. Critical for parallel‑batch sample digestion for trace element analysis, multi‑condition dissolution testing, Kjeldahl nitrogen determination, Soxhlet extraction, and any application where running up to six independent experiments concurrently under precisely controlled, reproducible heating and stirring conditions is mandatory for diagnostic accuracy, regulatory compliance, and laboratory efficiency.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Burn Hazard — Hot Plates: Each of the six ceramic‑coated aluminum work plates can reach 280 °C and remain hot for an extended period after the power is turned off. Do not touch any work plate for at least 30–60 minutes after use, or until the residual heat “HOT” indicator for that channel has stopped flashing. Use appropriate heat‑resistant gloves or tools when handling vessels on any hot plate. Severe burns can occur upon contact. The “HOT” warning for each channel continues even after the unit is turned off (if still connected to mains) until that specific plate cools below 50 °C — always verify the indicator on each channel has stopped flashing before touching any plate.
Fire Hazard — Avoid Flammable Materials: Do not operate the hotplate stirrer near flammable materials, volatile solvents, combustible gases, or paper products. Keep the work area clear of flammable substances. The heating temperature must be set at least 50 °C lower than the ignition point of the chemicals being used. Do not leave the instrument unattended while operating at high temperatures without appropriate safety protocols. The independent safety circuits (420 °C cutoff per channel) provide backup protection but should not replace operator vigilance.
Magnetic Field Interference: Each channel contains strong permanent magnets. People with implanted medical devices (e.g., pacemakers, implantable cardioverter‑defibrillators, neurostimulators) should keep a safe distance of at least 30 cm from the operating stirrer. Do not place the instrument near credit cards, hard drives, computer monitors, or other magnetic‑sensitive equipment. The combined magnetic field from six active channels may be stronger than a single‑channel device.
Channel Independence and Vessel Spacing: The six channels operate independently. Ensure that vessels placed on adjacent channels do not touch or interfere with each other. The pre‑determined channel spacing (approximately 190 mm centre‑to‑centre) allows standard beakers up to 250 mL to 1000 mL capacity, but oversized vessels may crowd adjacent positions. Always allow sufficient clearance to prevent magnetic interference between channels and to avoid accidental contact with hot plates.
Vessel and Stir Bar Selection: Use only flat‑bottomed vessels (beakers, Erlenmeyer flasks, crystallising dishes) that sit flush on the ceramic‑coated work plates. Ensure each magnetic stir bar is in good condition without chips, cracks, or deformities and is properly centered in each vessel before starting. Do not exceed the maximum stir bar length of 40 mm per channel.
Start Slowly (Smooth Start): For each channel independently, always start stirring at a low speed (200–300 rpm) and gradually increase to the desired level. A sudden high‑speed start may cause the stir bar to decouple, spin erratically, or strike the vessel wall, leading to splashing, spillage, or vessel breakage. Because the six channels are independent, slowly increase speed on each channel sequentially.
Electrical Safety — Proper Grounding: Do not operate the instrument with wet hands. Ensure the mains power cable does not come into contact with liquids or sharp edges that could damage the insulation. Use only the supplied grounded power cord and ensure the outlet provides proper grounding. Disconnect the power cord before cleaning, servicing, or moving the unit. Do not operate if the power cord is damaged. The IP21 rating offers basic protection against vertically falling water drops, but does not protect against immersion or significant liquid spills.
Chemical Compatibility — Ceramic Coating Limits: The ceramic‑coated aluminum work plates are resistant to strong acids, strong alkalis, and organic solvents. However, prolonged exposure to some concentrated mineral acids (e.g., hydrofluoric acid, concentrated sulfuric acid) or aggressive organic solvents may degrade the coating. Clean spills promptly. Refer to the Safety Data Sheet (SDS) for specific chemicals. Never heat sealed vessels or containers that cannot vent pressure, as explosion may result.
Spill Management — Prevent Liquids Entering Housing: If a liquid spill occurs on any work plate during operation, turn off the affected channel(s) immediately. Unplug the unit, allow the plate(s) to cool (if heated), and wipe the spill clean with a soft, damp cloth. Do not let liquids seep under the work plates or into the housing. The IP21 rating does not protect against pooling liquids or immersion.
Operating Environment — Clean, Stable Benchtop: Use the LCD Digital Hotplate Magnetic Stirrer indoors only, on a stable, level, non‑flammable laboratory benchtop. Do not use in explosive atmospheres or in the presence of flammable gases or vapours. The permissible ambient temperature range is 5–40 °C with relative humidity not exceeding 80 %. Allow at least 10 cm clearance on all sides for proper heat dissipation and ventilation. Do not cover the instrument during operation.
External PT1000 Sensor Safety — Secure Placement: When using the optional PT1000 external temperature sensors (up to six, one per channel), insert each sensor probe into its respective sample vessel and secure it with a suitable stand and clamp (sold separately). Do not allow any sensor cable to contact the hot work plate of its channel, as this may melt the wire insulation and cause sensor failure, electrical hazard, or burns. If any sensor is disconnected or fails during operation (indicated by an error code on that channel’s LCD), the heating mode for that channel will automatically shut down as a safety precaution. Always inspect each sensor cable for damage before use.
Cleaning and Maintenance — Safe Cleaning Protocols: Unplug the unit before cleaning. Allow all work plates to cool completely (verify each channel’s “HOT” indicator has stopped flashing) before cleaning. Wipe each ceramic‑coated work plate and the aluminum alloy housing with a soft, damp cloth using a mild laboratory detergent or 70 % isopropyl alcohol. Do not immerse the unit in liquid. Do not use abrasive cleaners, metal scouring pads, or sharp objects that could scratch the ceramic coating. The brushless DC motors require no routine maintenance, but periodically inspect the power cord and the condition of each work plate for signs of wear or chemical damage.
Over‑Temperature and Short‑Circuit Protection (Redundant Safety per Channel): Each channel has dual independent safety circuits. If any work plate exceeds 420 °C, that channel will automatically stop heating and display an error message. If a short‑circuit is detected in a channel, the second safety circuit will cut off power to that channel. While these features provide redundancy, they are not a substitute for proper laboratory safety practices. Do not disable or bypass any safety features.
Residual Heat Warning — Active Even When Off: After powering off (if the unit remains connected to mains), each channel’s “HOT” indicator may continue flashing if its plate is above 50 °C. This warning is independent of the main power switch and alerts users to dangerously hot surfaces. Always verify that all six channel indicators have stopped flashing before assuming the instrument is safe to touch or clean.
Training Requirement — Qualified Users Only: Only trained laboratory personnel with appropriate technical background in hotplate stirrer operation should operate the LCD Digital Hotplate Magnetic Stirrer for clinical diagnostic or research applications. Users must read and understand the operator’s manual before first use. Laboratory managers should ensure all operators are aware of the independent channel control features, the proper procedure for starting and stopping stir bars across six channels, and the specific safety considerations for heating and stirring hazardous materials.

2. FIRST AID MEASURES

Burn from Hot Surface: If skin contacts a hot work plate or a hot vessel on any channel, immediately cool the burn area with cool (not cold) running water for at least 15 minutes. Do not apply ice directly. Remove any jewellery or constrictive items from the affected area. Cover the burn with a sterile, non‑adhesive dressing. Seek medical attention for large‑area burns (larger than the palm of the hand), deep burns (white or charred appearance), or burns causing blistering. For burns on the face, hands, feet, or genitals, seek immediate medical attention.
Fire: If a fire occurs on or near the instrument, immediately turn off the power if safe to do so. Use a class ABC dry chemical fire extinguisher or carbon dioxide (CO₂) extinguisher. Do not use water on electrical fires. Evacuate the immediate area if the fire cannot be immediately controlled. Call emergency services.
Chemical Splash to Eyes: If a heated chemical sample or reagent splashes into the eyes during operation on any channel, immediately flush the eyes with copious amounts of cool water or sterile saline for at least 15 minutes. Hold the eyelids open to ensure thorough rinsing. Remove contact lenses if present and easily removable. Seek immediate medical attention. Do not attempt to neutralise the chemical in the eye.
Chemical Splash to Skin: Remove contaminated clothing immediately. Flush the affected skin area with cool running water for at least 15 minutes. Do not rub or scrub. Seek medical evaluation for chemical burns or if irritation persists. Refer to the Safety Data Sheet (SDS) for the specific chemical involved.
Inhalation of Fumes: If fumes from heated chemicals are inhaled, move the affected person to fresh air immediately. Keep the person warm and at rest. If breathing is difficult, administer oxygen if trained. If breathing stops, perform CPR. Seek immediate medical attention.
Electrical Shock: If an electrical shock incident occurs, disconnect power at the circuit breaker before attempting to assist the victim. Do not touch the victim until the power is disconnected. Once safe, assess the victim for responsiveness and breathing. Call emergency medical services immediately. Perform CPR if trained and necessary. Seek medical evaluation for all electrical shock victims, even if symptoms appear mild.

3. FIRE FIGHTING MEASURES

Flammability — Primary Fire Hazard is Heated Chemicals: The instrument’s aluminum alloy housing is non‑flammable, but the power cord, internal wiring, electronic components, and plastic control elements are combustible. The ceramic‑coated work plates are non‑flammable. The primary fire hazard is the flammable chemicals, solvents, or materials being heated or stirred.
Extinguishing Media — Electrical Fires Require CO₂ or Dry Chemical: Use carbon dioxide (CO₂), dry chemical (ABC class), or alcohol‑resistant foam extinguishers for fires involving the electrical components or nearby flammable materials. Do not use water on electrical fires, as water conducts electricity and can cause electrical shock or damage the instrument.
Fire Response — Isolate Power and Evacuate: Immediately disconnect power to the instrument at the circuit breaker if safe to do so. Evacuate the immediate area. Use an appropriate fire extinguisher for small, contained fires. For larger fires, evacuate the laboratory and call emergency services. Do not attempt to extinguish a fire if not trained or if the fire is spreading rapidly.
Special Protective Equipment for Firefighters: Firefighters should wear self‑contained breathing apparatus (SCBA) and full structural firefighting gear (including gloves, boots, helmet, and turnout coat) when fighting fires in laboratory settings, as combustion products may include toxic fumes from burning plastics, chemicals, and electrical components.
