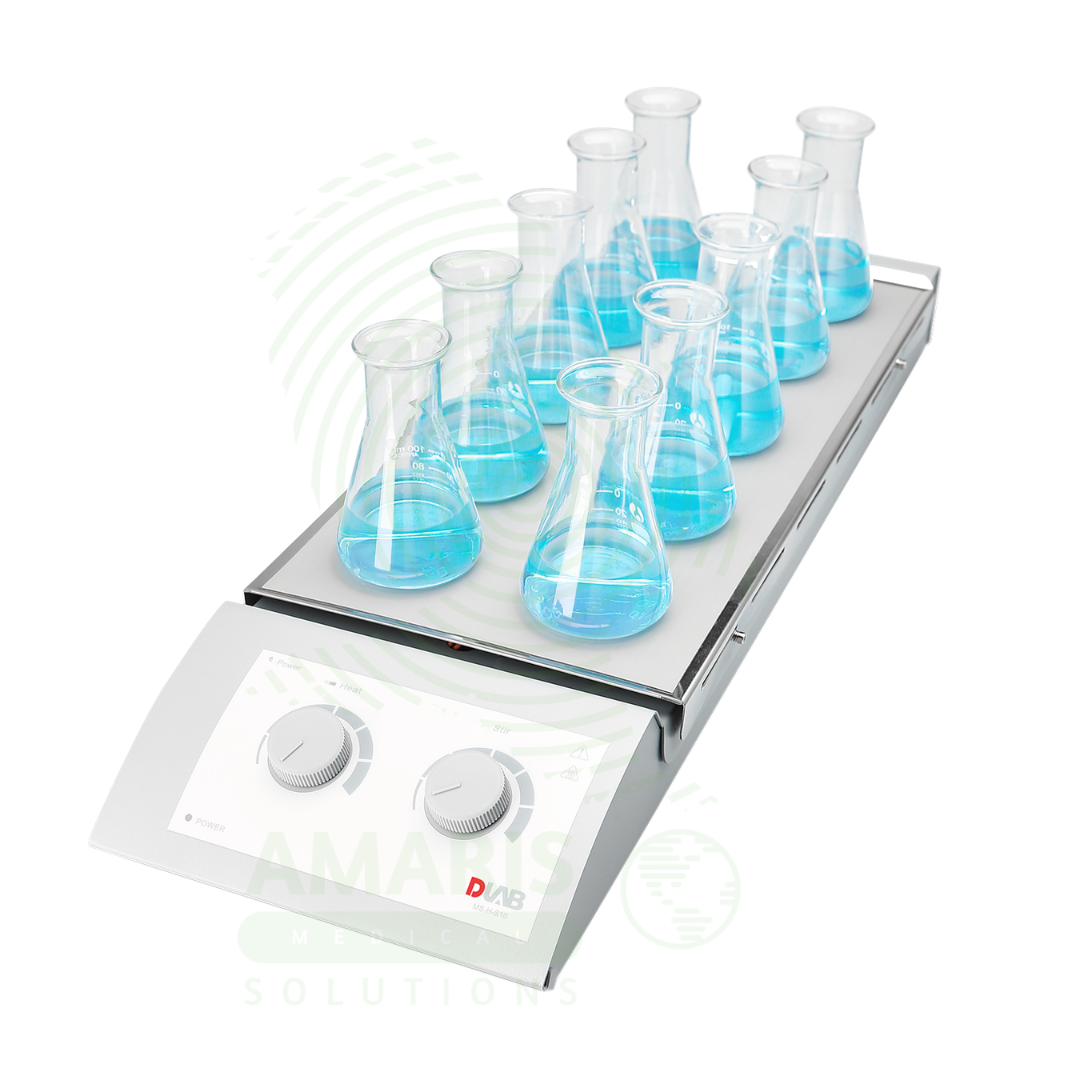

Position Magnetic Hotplate Stirrer(MS-H-S10 10)

1. SAFETY PRECAUTIONS

• Burn Hazard: The stainless steel work plate can reach 120 °C and remains hot for an extended period after the power is turned off. The silicone cushion also retains heat. Do not touch the work plate or vessels for at least 30 minutes after use, or until the plate has cooled to room temperature. Use heat‑resistant gloves or tools when handling vessels that have been heated. The unit has no residual heat warning indicator; always assume the plate may be hot.

• Fire Hazard: Do not operate the hotplate near flammable materials, volatile solvents, combustible gases, or paper products. Keep the work area clear of flammable substances. The heating temperature must be set at least 50 °C lower than the ignition point of the chemicals being used. Do not leave the instrument unattended while operating at high temperatures without appropriate safety protocols. The maximum plate temperature is 120 °C, but this is sufficient to ignite certain solvents.

• Over‑Temperature Protection (Safety Circuit): The instrument has an independent safety circuit that automatically stops heating if the work plate exceeds 140 °C. However, do not rely on this as the primary safety measure. Always monitor the heating process, especially when working with volatile or heat‑sensitive materials.

• Electrical Safety: Do not operate the instrument with wet hands. Disconnect the power cord before cleaning, servicing, or moving the unit. Use only the supplied grounded power cord and ensure the outlet provides proper grounding. Do not operate if the power cord is damaged. The IP42 rating offers protection against splashing water, but the unit should not be immersed or subjected to heavy liquid exposure.

• Chemical Compatibility: The stainless steel work plate with silicone cushion is resistant to many common laboratory chemicals, including weak acids, weak alkalis, and organic solvents. However, prolonged exposure to strong acids, strong alkalis, or aggressive organic solvents (e.g., acetone, chloroform, dichloromethane) may degrade the silicone cushion. Clean spills immediately. Refer to the Safety Data Sheet (SDS) for specific chemicals.

• Vessel Selection and Placement: Use only flat‑bottomed vessels (beakers, Erlenmeyer flasks, crystallizing dishes) that sit flush on the silicone‑cushioned work plate. Ensure all 10 vessels are stable and evenly spaced to prevent tipping. Do not use vessels that are cracked or have uneven bases. The maximum recommended vessel size is 400 mL per position; do not exceed this capacity.

• Stir Bar Selection: Use only magnetic stir bars in good condition without chips, cracks, or deformities. Maximum stir bar length per position is 40 mm. Ensure each stir bar is properly centered in its vessel before starting the motor. A detached or off‑center stir bar can scratch the silicone cushion or cause erratic stirring.

• Start Stirring Slowly: Always start stirring at the lowest speed (0 rpm) and gradually increase to the desired speed (0–1100 rpm). A sudden high‑speed start may cause stir bars to decouple, spin erratically, or strike vessel walls, leading to splashing, spillage, or vessel breakage. Because all 10 positions rotate synchronously, the same speed applies to all vessels.

• Independent Heating and Stirring Controls: The heating and stirring functions are independently controlled. When using the heating‑only mode, ensure the stirring knob is set to “0” to prevent accidental stir bar rotation. When using the stirring‑only mode, ensure the heating knob is set to “0” to prevent accidental heating.

• Spill Management: If a liquid spill occurs on the work plate during operation, turn off both heating and stirring knobs immediately. Unplug the unit, allow the plate to cool (if heated), and wipe the spill clean with a soft, damp cloth. Do not let liquids seep under the silicone cushion or into the housing. The IP42 rating provides protection against splashing water, not against pooling liquids.

• Cleaning and Maintenance: Unplug the unit and allow the work plate to cool completely before cleaning. Wipe the silicone‑cushioned work plate and metal housing with a soft, damp cloth using a mild laboratory detergent or 70 % isopropyl alcohol. Do not immerse the unit in liquid. Do not use abrasive cleaners, metal scouring pads, or sharp objects that could tear or scratch the silicone cushion. The brushless DC motor requires no routine maintenance.

• Operating Environment: Use the MS‑H‑S10 indoors only, on a stable, level, non‑flammable laboratory benchtop. Do not use in explosive atmospheres or in the presence of flammable gases or vapors. The permissible ambient temperature range is 5–40 °C with relative humidity not exceeding 80 %. Allow at least 10 cm clearance on all sides for proper heat dissipation and ventilation. Do not cover the instrument during operation.

• Monitoring During Use: Because this is an analog model with no digital temperature display or residual heat warning, the operator must actively monitor the heating process. Use an external thermometer or temperature probe to verify plate temperature if precise control is required. Do not leave the instrument unattended for extended periods at high temperatures.

• Vessel Loading: Do not overload any single position. The maximum stirring capacity per position is 0.4 L of water. Overfilling may cause spillage, affect stirring efficiency, or damage the motor. Distribute vessels evenly across the 10 positions to maintain balance and consistent heating.

• Training Requirement: Only trained laboratory personnel with appropriate technical background in hotplate stirrer operation should use the MS‑H‑S10 for clinical diagnostic or research applications. Users must read and understand the operator’s manual before first use. Laboratory managers should ensure all operators are aware of the independent heating and stirring controls and the proper procedure for starting and stopping 10 synchronous stir bars.

2. FIRST AID MEASURES

• Burn from Hot Surface: If skin contacts the hot work plate or a hot vessel, immediately cool the burn area with cool (not cold) running water for at least 15 minutes. Do not apply ice directly. Remove any jewelry or constrictive items from the affected area. Cover the burn with a sterile, non‑adhesive dressing. Seek medical attention for large area burns, deep burns (white or charred appearance), or burns causing blistering. For burns on the face, hands, feet, or genitals, seek immediate medical attention.

• Fire: If a fire occurs on or near the hotplate stirrer, immediately turn off the power if safe to do so. Use a class ABC dry chemical fire extinguisher or carbon dioxide (CO₂) extinguisher. Do not use water on electrical fires. Evacuate the immediate area if the fire cannot be immediately controlled. Call emergency services.

• Chemical Splash to Eyes: If a heated chemical sample or reagent splashes into the eyes, immediately flush the eyes with copious amounts of cool water or sterile saline for at least 15 minutes. Hold the eyelids open to ensure thorough rinsing. Remove contact lenses if present and easily removable. Seek immediate medical attention. Do not attempt to neutralize the chemical in the eye.

• Chemical Splash to Skin: Remove contaminated clothing immediately. Flush the affected skin area with cool running water for at least 15 minutes. Do not rub or scrub. Seek medical evaluation for chemical burns or if irritation persists. Refer to the Safety Data Sheet (SDS) for the specific chemical involved.

• Inhalation of Fumes: If fumes from heated chemicals are inhaled, move the affected person to fresh air immediately. Keep the person warm and at rest. If breathing is difficult, administer oxygen if trained. If breathing stops, perform CPR. Seek immediate medical attention.

• Electrical Shock: If an electrical shock incident occurs, disconnect power at the circuit breaker before attempting to assist the victim. Do not touch the victim until the power is disconnected. Once safe, assess the victim for responsiveness and breathing. Call emergency medical services immediately. Perform CPR if trained and necessary. Seek medical evaluation for all electrical shock victims, even if symptoms appear mild.

3. FIRE FIGHTING MEASURES

• Flammability: The stainless steel work plate and metal housing are non‑flammable, but the silicone cushion, power cord, internal wiring, and electronic components are combustible. The primary fire hazard is the flammable chemicals, solvents, or materials being heated or stirred.

• Extinguishing Media: Use carbon dioxide (CO₂), dry chemical (ABC class), or alcohol‑resistant foam extinguishers for fires involving the electrical components or nearby flammable materials. Do not use water on electrical fires, as water conducts electricity and can cause electrical shock or damage the instrument.

• Fire Response: Immediately disconnect power to the instrument at the circuit breaker if safe to do so. Evacuate the immediate area. Use an appropriate fire extinguisher for small, contained fires. For larger fires, evacuate the laboratory and call emergency services. Do not attempt to extinguish a fire if not trained or if the fire is spreading rapidly.

• Special Protective Equipment for Firefighters: Firefighters should wear self‑contained breathing apparatus (SCBA) and full structural firefighting gear (including gloves, boots, helmet, and turnout coat) when fighting fires in laboratory settings, as combustion products may include toxic fumes from burning plastics, chemicals, and electrical components.
