Vertical electrophoresis tank double plate (DL-Mini01)

WhatsApp Order

The Vertical electrophoresis tank double plate (DL-Mini01) is a compact, precision-engineered vertical electrophoresis system designed for small-scale separation of nucleic acids and proteins in clinical diagnostic and research laboratories . Featuring a leak-proof integrated glass plate and gasket design that prevents gel leakage, this system supports simultaneous electrophoresis of two gels (8.3 × 7.3 cm each) with gel thickness options of 0.75 mm, 1.0 mm, and 1.5 mm, and 10-well or 15-well sample combs .

For the clinical laboratory scientist and molecular biologist, the DL-Mini01 supports SDS-PAGE and Native-PAGE for protein analysis, DNA and RNA vertical electrophoresis for genetic testing, PCR product confirmation, restriction fragment analysis, serum protein electrophoresis (SPE) for multiple myeloma diagnosis, hemoglobin electrophoresis for sickle cell disease testing, immunofixation electrophoresis (IFE), urine protein electrophoresis, isoenzyme analysis for cardiac and hepatic panels, and lipoprotein electrophoresis for cardiovascular risk assessment .

The system incorporates critical safety features including automatic power-off when the upper cover is opened and an upper cover limit function that prevents incorrect installation of positive and negative electrodes, protecting operators during electrophoresis setup and gel retrieval . The high-purity (99.99%) platinum electrodes provide optimal conductivity, corrosion resistance, and anti-aging properties for reliable, long-lasting performance .

Constructed from high-strength, high-transparency plastic with anti-aging silicone sealing pads, the DL-Mini01 includes a dedicated gel casting system (gel maker base and gel frame clamps) that simplifies gel preparation and ensures reliable, leak-free operation . Compatible with the DL-ZY02 blotting system, this electrophoresis tank supports seamless workflow integration from gel separation to membrane transfer for Western blotting applications .

For the patient undergoing diagnostic testing for plasma cell disorders, hemoglobinopathies, infectious diseases, or inherited genetic conditions, the DL-Mini01’s reliable protein and nucleic acid separation supports accurate diagnostic results that guide appropriate treatment decisions across clinical pathology, molecular diagnostics, and protein chemistry applications.

Compare

Add to wishlist

Category: LABORATORY EQUIPMENT AND SUPPLIES Tags: Clinical Laboratory Equipment, DL-Mini01 Vertical Electrophoresis Tank, DLAB Electrophoresis, DNA Electrophoresis, Mini Protein Gel Tank, Molecular Diagnostics, Nucleic Acid Electrophoresis, Protein Gel Electrophoresis, SDS-PAGE Electrophoresis, Vertical Electrophoresis System

Description

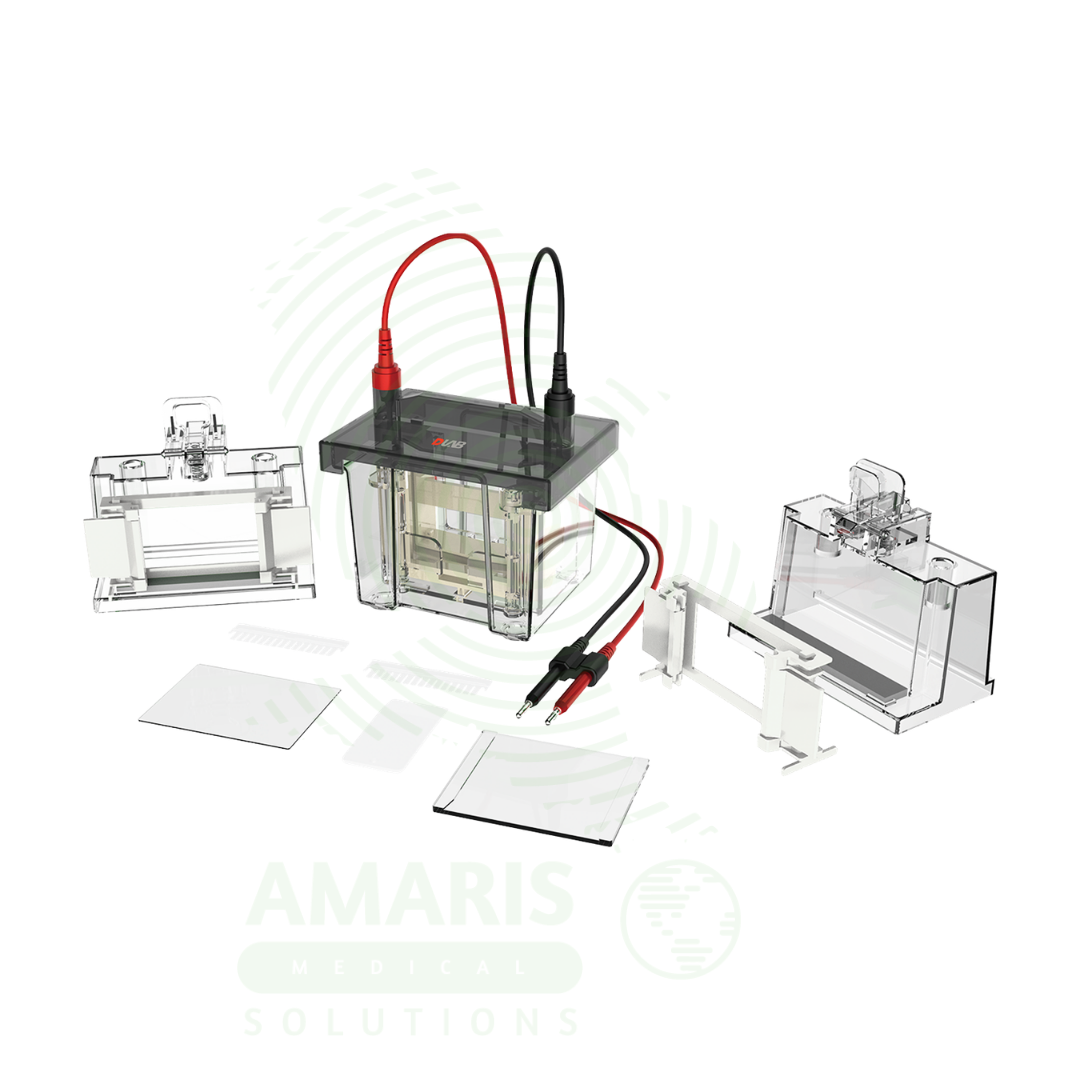

Vertical electrophoresis tank double plate (DL-Mini01)

PRIMARY CLINICAL & DIAGNOSTIC USES

1. Small-Scale Protein Analysis for Clinical Diagnostics

Primary Use: Provides a compact vertical electrophoresis system designed for SDS-PAGE and Native-PAGE separation of protein samples, enabling molecular weight determination and purity assessment in diagnostic workflows .
How it helps: For the clinical laboratory scientist and protein specialist, the DL-Mini01 delivers reliable separation of protein samples for applications such as serum protein electrophoresis (SPE) and immunofixation electrophoresis (IFE)—critical for diagnosing multiple myeloma, inflammatory conditions, and monoclonal gammopathies. For the patient undergoing testing for plasma cell disorders or protein abnormalities, accurate protein separation supports definitive diagnosis and treatment monitoring.

2. Nucleic Acid Fragment Separation for Genetic Testing

Primary Use: Suitable for vertical electrophoresis of DNA and RNA samples, supporting PCR product confirmation, restriction fragment analysis, and genetic screening applications .
How it helps: For the molecular biologist and clinical laboratory scientist, the DL-Mini01 facilitates efficient separation of nucleic acid fragments by size—enabling confirmation of PCR amplification products for infectious disease testing (COVID-19, influenza, hepatitis, HIV). For the patient undergoing molecular diagnostic testing, reliable DNA/RNA separation ensures accurate test results that guide appropriate treatment decisions.

3. Dual-Gel Capacity for Increased Laboratory Throughput

Primary Use: Supports simultaneous electrophoresis of two gels (8.3 × 7.3 cm each), enabling parallel processing of multiple samples or duplicate gel runs for experimental replication .
How it helps: For the laboratory manager and clinical laboratory scientist, the dual-gel capacity allows two electrophoresis runs to be performed concurrently—reducing turnaround time, increasing sample throughput, and improving laboratory efficiency for busy diagnostic labs. For the patient, faster processing of diagnostic samples means receiving test results more quickly, enabling earlier diagnosis and treatment initiation.

4. Integrated Safety Features for Operator Protection

Primary Use: Equipped with automatic power-off safety function when the upper cover is opened, and an upper cover limit function preventing incorrect installation of positive and negative electrodes .
How it helps: For the laboratory safety officer and clinical laboratory scientist, the integrated safety features protect operators from electrical hazards during electrophoresis setup and gel retrieval—reducing the risk of shock and ensuring a safe working environment. For the patient, a safe laboratory environment protects the quality and integrity of diagnostic samples and results.

SECONDARY & SUPPORTIVE USES

1. SDS-PAGE Protein Separation: Used for molecular weight determination and purity assessment of protein samples in diagnostic and research applications .

2. Native-PAGE Protein Analysis: Supports native protein electrophoresis for studying protein complexes, conformation, and activity without denaturation .

3. Western Blotting Sample Preparation: Used as the first-dimension separation step before electrophoretic transfer to membranes for immunodetection, with compatibility for DL-ZY02 blotting system .

4. Hemoglobinopathy Testing: Supports hemoglobin electrophoresis for diagnosis of sickle cell disease, thalassemia, and other hemoglobin disorders.

5. Urine Protein Electrophoresis: Used for separation and characterization of urinary proteins for diagnosis of kidney disease and multiple myeloma.

6. Lipoprotein Electrophoresis: Supports separation of lipoprotein fractions for cardiovascular risk assessment and lipid disorder diagnosis.

7. Isoenzyme Analysis: Used for separation of creatine kinase (CK), lactate dehydrogenase (LDH), and alkaline phosphatase (ALP) isoenzymes for cardiac and hepatic diagnostic panels.

8. Quality Control of Purified Proteins: Supports purity assessment of recombinant proteins, antibodies, and therapeutic proteins in pharmaceutical QC.

9. Molecular Biology Research: Used for DNA fragment separation, RNA analysis, and plasmid screening in research applications.

10. Educational and Training Laboratories: Provides reliable, user-friendly electrophoresis platform for teaching protein and nucleic acid separation techniques.

11. Method Development and Optimization: Used to optimize electrophoresis protocols (gel concentration, buffer systems, running conditions) before clinical implementation.

12. Antibody Purity Testing: Supports assessment of antibody purity for research and diagnostic reagent preparation.

13. Food Authenticity Testing: Used for protein-based species identification in food quality control laboratories.

14. Veterinary Diagnostic Applications: Supports protein and nucleic acid analysis for animal health testing and infectious disease diagnosis.

KEY PRODUCT FEATURES

1. BASIC IDENTIFICATION ATTRIBUTES

Device Type: A compact vertical electrophoresis tank designed for small-scale separation of nucleic acids and proteins, supporting SDS-PAGE, Native-PAGE, and DNA/RNA vertical electrophoresis .
Designation: DL-Mini01 Vertical Electrophoresis Tank, Vertical Electrophoresis System, Mini Protein Gel Tank, DLAB DL-Mini01 .
Key Components:
- Electrophoresis Tank: Durable plastic construction with upper cover and bottom shell .
- Electrode Core: High-purity (99.99%) platinum electrodes with wire assembly .
- Glass Plates: Short glass plate (10.1 × 7.3 cm) and long glass plate (10.1 × 8.2 cm) .
- Sample Combs: 10-well and 15-well combs for different sample loading capacities .
- Gel Casting System: Includes gel maker base, gel frame clamps, and silicone sealing gasket .
- Safety Features: Automatic power-off on lid opening; polarity reversal prevention .

2. TECHNICAL & PERFORMANCE PROPERTIES

Gel Area: 8.3 × 7.3 cm .
Gel Thickness: 0.75 mm, 1.0 mm, and 1.5 mm options .
Sample Combs: 10-well and 15-well configurations .
Glass Plate Sizes: Short plate (10.1 × 7.3 cm); Long plate (10.1 × 8.2 cm) .
Electrode Material: 99.99% high-purity platinum wire (Φ0.25mm) for optimal conductivity and corrosion resistance .
Gel Capacity: Simultaneous running of 2 gels .
Construction Material: High-strength, high-transparency plastic with injection molding .
Safety Features: Automatic power-off on lid opening; polarity reversal prevention via upper cover limit function .
Dimensions: 160 × 115 × 150 mm .
Weight: 2.0 kg .
Sealing: Integrated glass plate and gasket design prevents gel solution leakage .
Compatibility: Can be used together with DL-ZY02 blotting system .

3. PHYSICAL & OPERATIONAL PROPERTIES

Construction: High-strength, high-transparency plastic material with injection molding for durability and visibility .
Leak-Proof Design: Integrated glass plate and silicone gasket design ensures no gel leakage during pouring and electrophoresis .
Gel Casting System: Independent, dedicated gel maker base and gel frame clamps for simple, reliable gel preparation .
Safety Operation: Upper cover automatically cuts power when opened; limit function prevents incorrect electrode polarity connection .
Electrode Quality: 99.99% high-purity platinum wire provides excellent conductivity, corrosion resistance, and anti-aging properties .
Buffer Volume: Suitable for small-scale electrophoresis with minimal buffer requirements.
Compatibility: Can be used with DL-ZY02 system for blotting applications .
Durability: Anti-aging silicone sealing pad for long-term reliable use .

4. SAFETY & COMPLIANCE ATTRIBUTES

Regulatory Status: Medical laboratory equipment for in vitro diagnostic use.
Safety Features: Automatic power-off when lid is opened; upper cover limit function to prevent incorrect electrode polarity connection .
Electrical Safety: Platinum electrodes with safe voltage operation.
Material Safety: High-quality, non-toxic plastic materials; 99.99% pure platinum electrodes.
Construction Safety: Robust injection-molded housing for durability and operator safety.

5. STORAGE & HANDLING ATTRIBUTES

Storage: Store on clean, dry benchtop; avoid stacking heavy objects on the tank.
Cleaning: Rinse thoroughly with distilled water after each use; clean glass plates with mild detergent; avoid abrasive cleaners on platinum electrodes.
Glass Plate Care: Handle glass plates carefully to prevent breakage; clean and dry before storage.
Electrode Care: Avoid bending or damaging platinum electrodes; inspect for corrosion before each use.
Gel Casting: Use gel casting system per manufacturer instructions; ensure gasket is properly seated to prevent leakage.
Buffer Disposal: Dispose of used electrophoresis buffer per laboratory safety protocols.
Inspection: Inspect upper cover, electrodes, and gasket for damage before each use; replace worn components as needed.

6. LABORATORY & CLINICAL APPLICATIONS

Primary Application: Small-scale vertical electrophoresis for nucleic acid and protein sample separation in clinical diagnostic laboratories, molecular biology labs, and research facilities .
Clinical Role: Essential electrophoresis equipment in clinical diagnostic laboratories, hospital pathology departments, molecular diagnostics labs, blood banks, research laboratories, and educational institutions performing protein and nucleic acid separation for patient diagnosis.

SAFETY HANDLING PRECAUTIONS

1. SAFETY PRECAUTIONS

Power Supply Connection: Connect to an approved electrophoresis power supply only; observe correct polarity.
Lid Operation: Always keep lid closed during electrophoresis; do not open lid while power is on—automatic power-off will activate .
Buffer Levels: Maintain proper buffer levels during operation; do not allow electrodes to run dry.
Electrical Safety: Ensure power supply is properly grounded; do not touch buffer or electrodes during operation.
Glass Plate Handling: Handle glass plates with care to prevent breakage and sharp edge injury.
Chemical Safety: Use appropriate personal protective equipment (gloves, lab coat, eye protection) when handling gel reagents and buffers .
Cleaning: Disconnect from power supply before cleaning or disassembling.
Training: Only trained laboratory personnel should operate the DL-Mini01 for clinical diagnostic applications.

2. FIRST AID MEASURES

Buffer Spill: If electrophoresis buffer spills, clean immediately; use absorbent materials and dispose per laboratory protocol.
Electrical Shock: If electrical shock occurs, disconnect power supply immediately; seek medical attention for any electrical injury.
Glass Breakage: If glass plate breaks, carefully collect fragments using forceps; dispose of broken glass in sharps container.
Chemical Exposure: If gel reagents or buffer contact skin or eyes, flush with plenty of water for 15 minutes; seek medical attention if irritation persists.

3. FIRE FIGHTING MEASURES

Flammability: Plastic tank components may burn if exposed to flame or high heat.
Extinguishing Media: Use carbon dioxide or dry chemical extinguisher for electrical fires.
Fire Response: Disconnect power supply; do not use water on electrical fire.
